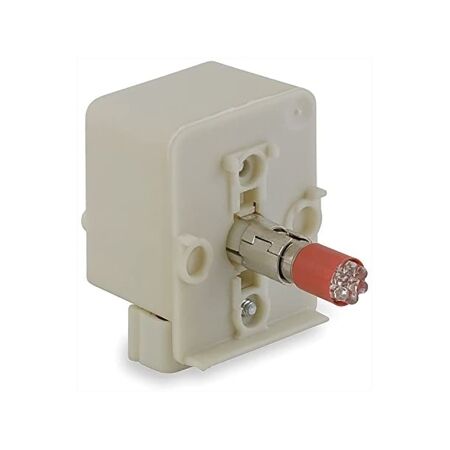

30mm Light Module TRANSF 220V | Red LED Lamp | IP65 Rated | Compatible with K, SK, KX | @Pack of 1 | by Clipsal
The 30mm Light Module TRANSF 220V features a bright red LED lamp, perfect for clear status indication in industrial control panels and automation systems. Designed for compatibility with K, SK, or KX push button units, this module operates at 220/240 VAC and is IP65 rated for durability. Ideal for licensed electricians, it ensures compliance with Australian electrical safety standards while reducing energy consumption with long-life LED technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30mm Light Module TRANSF 220V | Red LED Lamp | IP65 Rated | Compatible with K, SK, KX | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH9001KM7LR
Alternatively Known As: 30mm Red LED Indicator, 220V Light Module, SCH9001KM7LR, Clipsal Push Button Light Module, 30mm Panel Light
Technical Specifications
- Module Type: Light module for 30mm push button assemblies
- Lamp Type: Red LED
- Voltage: 220/240 VAC 50/60 Hz
- Compatibility: Types K, SK, or KX push button units
- Mounting: Panel mount, 30mm diameter
- Ingress Protection: IP65 (front face when installed)
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 40mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- 30mm diameter light module for push button assemblies
- Red LED lamp for clear status indication
- Operates at 220/240 VAC 50/60 Hz
- Compatible with Types K, SK, or KX push button units
- Long-life LED technology for reduced maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial control panels
- Machinery and automation systems
- Electrical switchboards
- Process control stations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED technology reduces energy consumption compared to incandescent lamps.
- Long operational life minimizes waste and replacement frequency.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 30mm Light Module TRANSF 220V Red LED (SCH9001KM7LR) is available for immediate purchase. Ideal for industrial control panels and automation systems.
