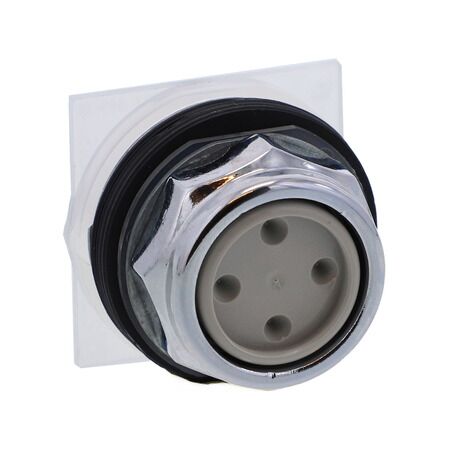

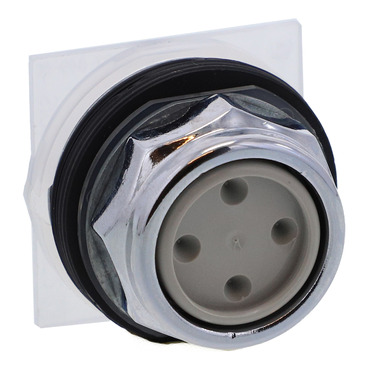

30mm Push Button Full Guard | Momentary Operation | IP66 Rated | by Clipsal
The 30mm Push Button Full Guard is designed for industrial control panels and machinery operation stations. Featuring a momentary operation and IP66 ingress protection, this robust push button ensures enhanced operator safety and easy installation in standard 30mm panel cutouts. Built with high-impact plastic and metal, it’s perfect for demanding environments, providing reliable performance and compliance with AS/NZS 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30mm Push Button Full Guard | Momentary Operation | IP66 Rated | by Clipsal
Brand: Clipsal
SKU: SCH9001KR1U
Alternatively Known As: Industrial push button, 30mm control button, Clipsal 9001KR1U, emergency stop button, full guard push button
Technical Specifications
- Actuator type: Push button
- Diameter: 30mm
- Guard type: Full guard
- Operation: Momentary
- Material: High-impact plastic and metal
- Mounting: Panel mount (30mm cutout)
- Contact block compatibility: 9001 series
- Ingress protection: IP66 (front)
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- 30mm diameter push button actuator
- Full guard for enhanced operator safety
- Robust construction for industrial environments
- Momentary operation
- Easy installation in standard 30mm panel cutouts
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation stations
- Manufacturing automation systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Supports safe and efficient machine operation, minimizing downtime
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 9001KR1U 30mm Push Button with Full Guard is available for immediate purchase. Ideal for industrial control panels and machinery operation stations.
