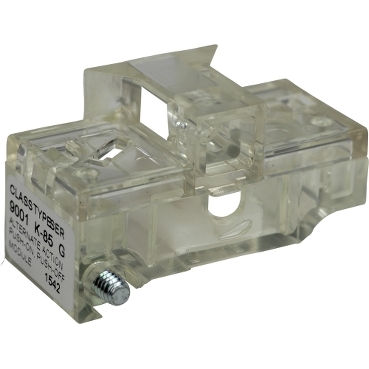

30mm Push-On Push-Off Module | IP66 Rated | 600V AC | by Clipsal
The 30mm Push-On Push-Off Module is designed for reliable control in industrial environments, featuring a robust latching operation and IP66 ingress protection. Ideal for machinery start/stop operations and compatible with standard panel cutouts, this module ensures easy installation and long-lasting performance for commercial electrical control stations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 30mm Push-On Push-Off Module | IP66 Rated | 600V AC | by Clipsal
Brand: Clipsal
SKU: SCH9001K85
Alternatively Known As: Pushbutton switch, Latching push button, Start/Stop button, Industrial push-on push-off switch, 30mm control switch
Technical Specifications
- Actuator type: Push-on, push-off (latching)
- Mounting diameter: 30mm
- Contact configuration: 1 NO/1 NC (varies by assembly)
- Material: High-impact plastic and metal
- Rated voltage: 600V AC max
- Rated current: 10A
- Ingress protection: IP66 (front face)
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 38mm x 60mm x 38mm
- Weight: 0.12 kg
Key Features
- 30mm diameter pushbutton module
- Push-on, push-off (latching) operation
- Robust construction for industrial environments
- Easy installation and replacement
- Compatible with standard 30mm panel cutouts
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop operations
- Manufacturing automation systems
- Commercial electrical control stations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy waste in industrial settings.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 30mm Push-On Push-Off Module SCH9001K85 is available for immediate purchase. Ideal for industrial and commercial control panel applications.
