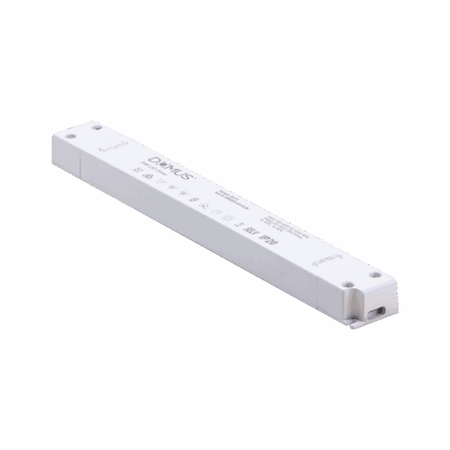

30W 24V LED Driver | 5-in-1 Dimming Options | Slim Design | by Domus Lighting
The 30W 24V LED Driver offers versatile 5-in-1 dimming options including Triac, 0-10V, and Potentiometer, making it perfect for indoor LED strip and profile lighting. Designed for easy installation with short circuit and thermal overload protection, this driver ensures safe and efficient operation, ideal for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Driver 30W 24V Dimmable, Slim LED Power Supply, 5-in-1 Dimmable LED Driver
Technical Specifications
- Output Power: 30W
- Output Voltage: 24V DC constant voltage
- Dimming Options: Triac, 0-10V, 1-10V, 10V PWM, Potentiometer
- Protections: Short circuit, thermal overload, over temperature, over voltage
- Input: AC mains voltage (specific input voltage not provided)
- Indoor use only
- Parallel wiring supported
- Dimensions (H x L x W): 30mm x 50mm x 150mm
- Weight: 0.3 kg
Key Features
- Slim linear design for easy installation
- 5-in-1 dimming options: Triac, 0-10V, 1-10V, 10V PWM, and Potentiometer
- Secondary side short circuit protection
- Thermal overload, over temperature, and over voltage protection
- Comes with 1 meter flex and plug
- Parallel wiring supported
- Fully Triac dimmable with suitable dimmers
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor LED strip lighting
- LED profiles
- General indoor LED lighting requiring dimmable constant voltage drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Supports dimming to extend LED lifespan and reduce energy use
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting LINEAR TRIAC DIMMABLE 30W 24V LED Driver is available now for immediate purchase. Ideal for indoor LED strip and profile lighting requiring versatile dimming options.
