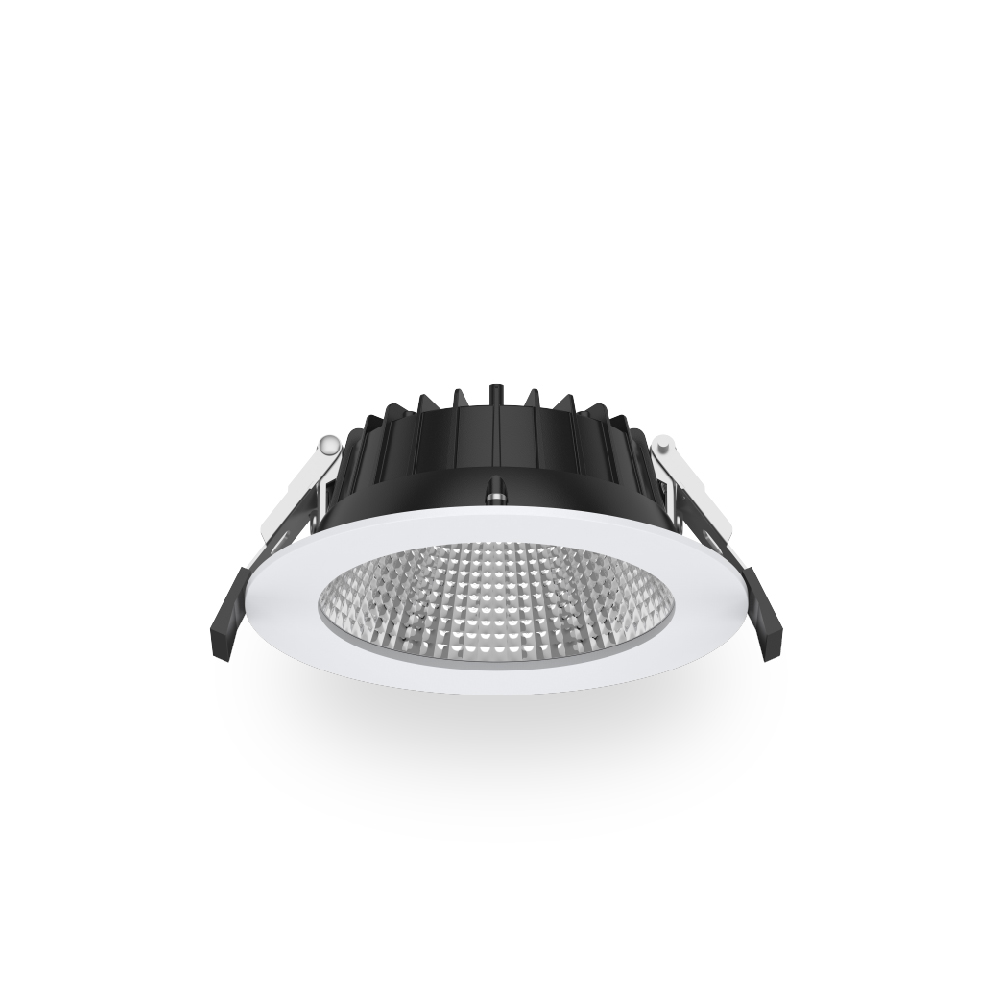

30W LED Downlight | Tri-CCT | Dimmable Driver | IP44 Rated | by atom
The 30W LED Downlight with dimmable driver offers versatile Tri-CCT options (3000K, 4000K, 5700K) for tailored lighting in any space. With an impressive efficiency of up to 137 lm/W and an IP44 rating for moisture resistance, this downlight is perfect for both residential and commercial recessed installations. Enjoy a long LED lifespan of over 54,000 hours, ensuring reliable performance and reduced maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Downlight, Dimmable LED Downlight, Recessed LED Ceiling Light, 30W LED Downlight
Technical Specifications
- Power Wattage: 30W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Temperatures: 3000K, 4000K, 5700K
- Lumens Output: Up to 4120 lm (depending on CCT)
- Beam Angle: 60°
- CRI: >80
- UGR: <19
- LED Voltage: 36 V
- LED Current: 750 mA
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Driver Type: Dimmable phase cut, constant current
- Driver Included: Yes
- Flex & Plug Length: 1200 mm
- Operating Temperature Range: -10 to 40 °C
- MacAdam Steps: 5-step ellipse
- LED Lifetime: >54,000 hours (TM-21 report)
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Dimmable driver with phase cut technology
- High system efficiency up to 137 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powder-coated white finish
- Long LED lifetime greater than 54,000 hours
- Beam angle of 60° for focused lighting
- Colour Rendering Index (CRI) greater than 80
- 5-step MacAdam ellipse for consistent colour quality
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting
- Commercial lighting
- Recessed ceiling installations
- Indoor ambient and task lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable feature allows for energy savings by adjusting light output
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 30W LED Downlight with dimmable driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
