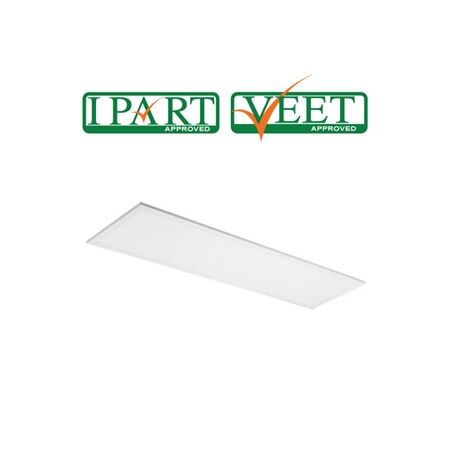

30W LED T-Bar Fittings | 3000K/4000K/6000K | Dimmable Options

BRAND: Sunny
SKU: S9754/312TC
$84.20 List price: $111.90
Free pick up (over 1 meter)
For delivery quote message
30 Days Return Delivery Options
LED T-Bar fittings with 30W power and 3000K/4000K/6000K color temperatures—ideal for office and retail spaces. Built for versatile lighting, with dimmable options and a sleek powder-coated finish.

Product Name/Title: 30W LED T-Bar Fittings | 3000K/4000K/6000K | Dimmable Options

SKU: S9754/312TC

Alternatively Known As: LED T-Bar Light Panel, LED Ceiling Panel Light, LED Troffer Light, Recessed LED Panel, Dimmable LED Ceiling Light

Technical Specifications
  • Power: 30W
  • Input Voltage: 240V~50Hz
  • Luminous Flux: 3100lm (3000K), 3200lm (4000K), 3300lm (6000K)
  • Beam Angle: 100°
  • CRI (Ra): >80
  • Dimmable: Analogue (Trailing edge, 1-10V) and Digital (DSI, DALI) options available
  • Fitting Colour: White
  • IP Rating: IP20 (Indoor use only)
  • Dimensions (H x L x W): 12mm x 1195mm x 295mm
  • Weight: 3.5 kg
Key Features
  • Extruded aluminium frame
  • Powder coated finish
  • High transparency opal polystyrene baked diffuser
  • Built-in high efficiency SMD LED chips
  • IP20 suitable for indoor use only
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Standard metric T-bar ceiling recessed installation
  • Plaster ceiling recessed installation (requires S9704 Plaster ceiling frame)
  • Surface mounted installation (requires S312FM, S606FM or S612FM Surface mounted frame)
  • Suspended installation (requires SSI1512 or SSY1512 Suspension unit)
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan reduces waste and replacement frequency
  • Low heat emission contributes to reduced cooling costs
Warranty Information

Standard manufacturer warranty applies. Please refer to the supplier for detailed warranty terms.

Available Now

The 30W LED T-Bar Fittings are available now for immediate purchase. Ideal for commercial and office ceiling lighting applications.

Installation Sheets (S9754MKII_installation24.pdf, 716 Kb) [Download]

Data Sheet (4929-899d19d062159e99a5970cd82b0a9004.pdf, 411 Kb) [Download]

SDOC Files (DECLARATION_OF_CONFORMITY_-_LED_PANEL_MK_II_V3.pdf, 306 Kb) [Download]
