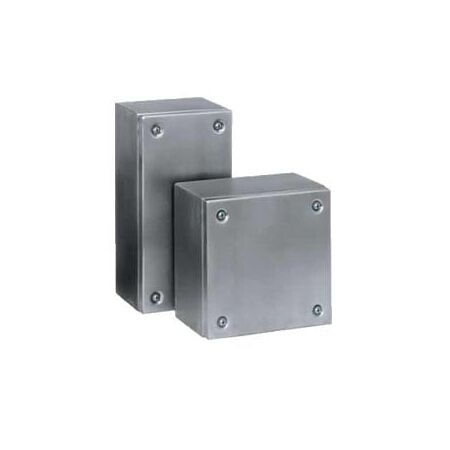

316 Stainless Steel Connector | IP66 Rated | 150Hx150Wx80D | N4 Finish by B&R Enclosures

SKU: TE1108/S
$710.10 List price: $892.50
+
Connector with IP66 protection and 316 stainless steel construction—ideal for housing terminations, pushbuttons, and switchgear. Built for durability and easy installation, with ASSDA approved N4 finish and foamed in place polyurethane gasket.

Product Name/Title: Connector TE 150Hx150Wx80D IP66 316SS N4

Brand: B&R Enclosures

SKU: TE1108/S

Alternatively Known As: 316 Stainless Steel Connector, IP66 Connector, TE Connector

Technical Specifications
  • Material: 1.2mm 316 stainless steel
  • Protection Rating: IP66
  • Gasket: Foamed in place polyurethane
  • Surface Finish: ASSDA approved N4
  • Dimensions (H x L x W): 150mm x 80mm x 150mm
  • Weight: 1.2 kg
Key Features
  • IP66 protection rating
  • Fully welded construction
  • Captive 316 stainless steel combo head screws to prevent loss
  • Provision for mounting DIN rail or a mounting pan
  • Flat face gutter
  • Easy installation
  • Foamed in place polyurethane gasket
  • 1.2mm 316 stainless steel
  • ASSDA approved N4 surface finish
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Housing terminations
  • Pushbuttons
  • Switchgear
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Connector TE – 316SS is available now for immediate purchase, ideal for various industrial applications.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
