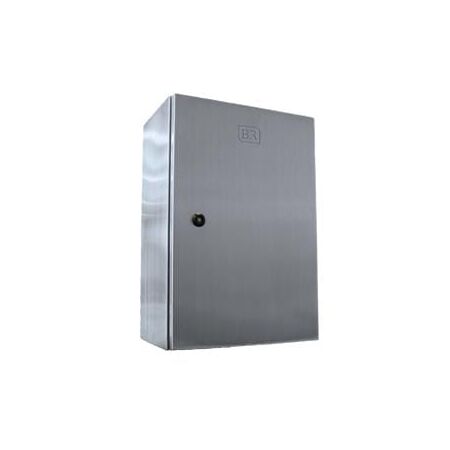

316 Stainless Steel Enclosure | IP66 Rated | Wall Mount | N4 Finish by B&R Enclosures

SKU: NI04062/S
$1,706.90 List price: $2,145.40
+
316 stainless steel enclosure with IP66 protection and wall mount feature—ideal for industrial and commercial applications. Built for durability in demanding conditions, with corrosion resistance and flexible mounting options.

Product Name/Title: Universal NI 400Hx600Wx200D IP66 316SS N4

Brand: B&R Enclosures

SKU: NI04062/S

Alternatively Known As: 316 Stainless Steel Enclosure, Industrial Electrical Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.2/1.5mm 316 stainless steel
  • Surface Finish: N4 or powdercoated X15 Orange
  • Wind Rating: Region D wind rated to AS1170.2-2002
  • Dimensions (H x L x W): 600mm x 200mm x 400mm
  • Weight: 10 kg
Key Features
  • IP66 protection rating for dust and water resistance.
  • Built for industrial or demanding conditions.
  • Unique wall mount feature for quick and easy installation.
  • Flexible equipment mounting options.
  • Specially designed gutter system.
  • 120º door opening for easy access.
  • Door rails fitted to the inside of the door.
  • 2mm steel mounting pan powdercoated white.
  • Corrosion resistant 316 stainless steel with N4 surface finish.
  • Horizontal or vertical door rails.
  • Polyurethane gasket foamed in place.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Housing electrical controls and instrumentation
  • Commercial: Junction terminations and PLCs
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Universal NI – 316SS is available now for immediate purchase, ideal for industrial applications requiring durable and reliable enclosures.
