Trade Discount 25%

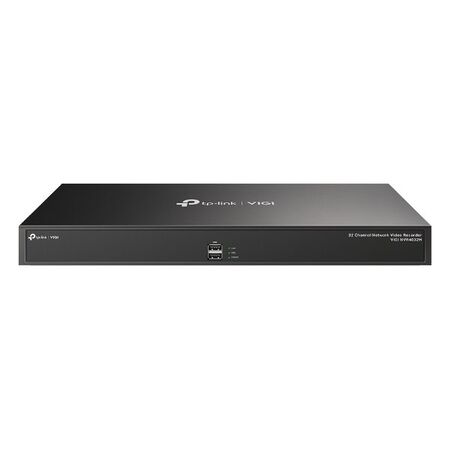

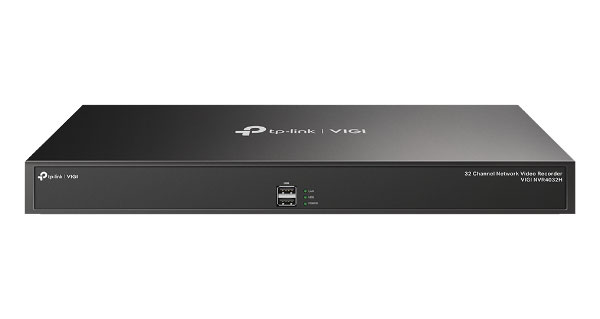

32 Channel NVR No PoE No HDD VIGI Ness
Ness VIGI network video recorder features 32 channels with no PoE ports. Supplied without HDD. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VIGI 32CH NVR, 32-Channel IP NVR, CCTV Network Video Recorder, TP-Link VIGI NVR4032H
Technical Specifications
- Model: VIGI NVR4032H
- IP Video Inputs: 32 channels
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 320 Mbps
- Decoding Capability: Up to 16-channel 2MP at 25fps or 8-channel 4MP at 30fps
- Synchronous Playback: Up to 16 channels
- Storage Interfaces: 4 x SATA
- Maximum Storage: Up to 16 TB per supported drive
- HDD: Not included
- PoE Ports: None
- Video Compression: H.265+
- Video Outputs: 1 x HDMI and 1 x VGA
- HDMI Output: Up to 3840 x 2160 at 30Hz
- Network Interfaces: 2 x Ethernet ports
- Power Supply: 100–240 VAC, 50–60Hz, 1.5A
- Power Consumption: 5W without disk; 48W with disk
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10–90% RH, non-condensing
- Certifications: RCM, CE, EAC, UKCA, RoHS and other regional marks
- Dimensions (H x L x W): 44mm x 330mm x 440mm
- Weight: 4 kg
Key Features
- 32-channel IP video recording and live view
- 4K HDMI video output with simultaneous HDMI and VGA output
- No integrated PoE ports, suitable for installations using a separate network switch
- Four SATA interfaces for expandable local video storage
- H.265+ compression helps reduce storage and network bandwidth requirements
- Up to 16-channel synchronous playback
- 320 Mbps incoming and outgoing network bandwidth
- Human, vehicle, intrusion, line-crossing and region-based detection support
- Dual Ethernet ports with multi-address, fault-tolerance and port aggregation modes
- Remote monitoring via compatible VIGI software and applications
- Supplied without hard disk drive for flexible storage selection
Professional Installation Requirements
- Installation should be performed by suitably qualified security and electrical personnel. Mains connection, network configuration, camera commissioning and HDD installation should follow the manufacturer's instructions and applicable Australian electrical and CCTV installation requirements.
Applications
- Commercial CCTV systems
- Retail, warehouse and office surveillance
- Industrial and infrastructure monitoring
- Multi-camera IP security installations
- Residential estates and multi-dwelling developments
- Centralised recording from VIGI and compatible ONVIF IP cameras
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable video surveillance system requirements for CCTV installations
- AS/NZS 62676.2.1:2020 — applicable IP network interface and interoperability requirements for video surveillance equipment
- AS/NZS 3000:2018 — applicable requirements for the electrical installation and connection of mains-powered equipment
Environmental Benefits
- H.265+ compression can reduce network traffic and required storage capacity compared with less efficient video codecs
- Four SATA interfaces allow storage capacity to be expanded or replaced without replacing the recorder
- Hard drive not included, allowing selection of an appropriately sized and energy-efficient surveillance-rated drive
- RoHS certification supports restriction of specified hazardous substances in the product
- Rack-mountable, serviceable design can help extend equipment life and reduce replacement waste
Warranty Information
Ness Corporation warranty policy provides 3 years from date of purchase for Ness manufactured or supplied products, subject to the applicable warranty terms and exclusions.
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors, subject to current supply.
