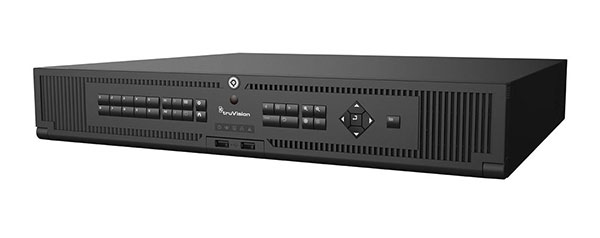

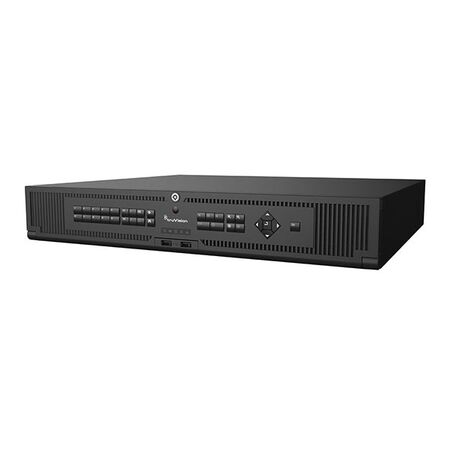

32 Channel Pro NVR No HDD TruVision
TruVision 32 channel Pro NVR supplied without a hard drive. Ideal for CCTV installs where the HDD is specified separately.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TruVision TVN-2332P-000, 32-Channel IP NVR, CCTV Network Video Recorder, TruVision Pro NVR
Technical Specifications
- Model: TVN-2332P-000
- Recorder Type: Linux embedded IP network video recorder
- IP Camera Channels: 32
- Camera Recording Bandwidth: 320 Mbps
- Video Compression: H.264, H.264+, H.265 and H.265+
- Maximum Recording Resolution: Up to 32 MP
- Storage Interfaces: 8 SATA interfaces
- Maximum HDD Capacity: 10 TB per SATA drive; up to 80 TB total
- Hard Drive Configuration: Supplied without hard drives
- Network Interfaces: 2 x RJ-45 10/100/1000 Mbps Ethernet
- Video Outputs: 2 x HDMI and 2 x VGA
- Audio Inputs: Up to 32 IP audio inputs
- Alarm Inputs: 16
- Alarm Outputs: 9
- External Storage: eSATA, NAS and SAN support
- Protocols: ONVIF, RTSP and HTTPS
- Power Supply: 100–240 VAC
- Power Consumption: 50 W maximum without HDD
- Operating Temperature: -10°C to +55°C
- Relative Humidity: 10–90% non-condensing
- Rack Mounting: 2U rack-mountable chassis
- Regulatory Marking: RCM
- Dimensions (H x L x W): 88mm x 469mm x 442mm
- Weight: 10 kg
Key Features
- Supports up to 32 IP cameras
- 320 Mbps camera recording bandwidth for high-capacity surveillance installations
- Eight SATA interfaces support up to 80 TB of installed storage using compatible drives
- Supplied without hard drives so storage capacity can be specified separately
- Supports H.264 and H.265 compression formats, including smart variants
- ONVIF Profile S and RTSP support for compatible third-party cameras
- UltraSync connectivity enables remote access without port forwarding
- Motion detection, video content analytics, privacy masking and tamper detection
- Hard drive redundancy, grouping, hot-spare and edge-failover recording functions
- Compatible with TruVision Navigator, TVRMobile and web browser access
- 2U rack-mountable design for commercial and industrial CCTV systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Mains connection, rack installation, network configuration and camera commissioning must follow applicable Australian electrical, structured cabling and security installation requirements.
Applications
- Commercial CCTV systems
- Industrial security monitoring
- Retail stores and shopping centres
- Warehouses and logistics facilities
- Office buildings and multi-site premises
- Large IP camera installations requiring separately specified storage
Standards & Compliance
- RCM marking specified by the manufacturer for the Australian market
- AS/NZS 62368.1 is the applicable safety standard family for audio, video and information and communication technology equipment; verify the edition and declaration for the supplied unit
Environmental Benefits
- Supplied without hard drives, allowing storage capacity to be matched to the installation and avoiding unnecessary hardware duplication
- Supports H.265 compression to reduce recording bandwidth and storage requirements compared with older compression formats
- Replaceable, separately specified hard drives can extend the usable service life of the recorder and reduce replacement waste
- Designed for centralised IP surveillance systems that can reduce the cabling and hardware required compared with distributed recording equipment
Warranty Information
TruVision NVRs are covered by a 3-year manufacturer warranty against defects, subject to the applicable Interlogix/TruVision warranty terms.
Available Now
Available through TruVision and authorised Australian security and surveillance equipment distributors.
