32A 3-Pole Main Switch | Emergency Off Function | IP65 Protection | Eaton

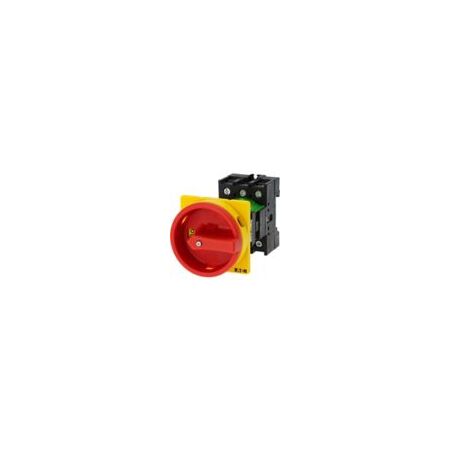

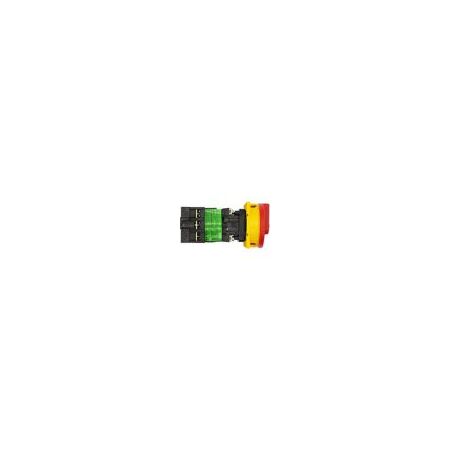

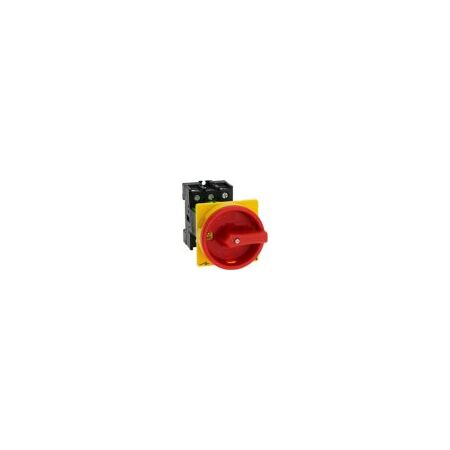

The Eaton 32A 3-pole main switch features an emergency off function with a red rotary handle and yellow locking ring—ideal for industrial and commercial electrical installations. Built for safety and reliability, it offers IP65 protection and a mechanical lifespan of 300,000 operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 32A 3-Pole Main Switch | Emergency Off Function | IP65 Protection | Eaton
Brand: Eaton
SKU: Y7-95676
Alternatively Known As: Eaton P1 Main Switch, 32A Main Switch, Emergency Off Switch, 3-Pole Main Isolator, Eaton Moeller P1 Switch
Technical Specifications
- Rated operational current: 32 A
- Number of poles: 3
- Rated breaking capacity: up to 300 A depending on voltage
- Rated operational voltage: up to 690 V AC
- Degree of protection: NEMA 1, IP65 front side
- Mechanical lifespan: 300,000 operations
- Operating frequency: 1200 operations per hour
- Ambient operating temperature: -25 °C to 50 °C
- Shock resistance: 15 g mechanical
- Terminal capacity: 2 x (1.5 - 6) mm² solid or stranded
- Lockable in Off position with yellow locking ring

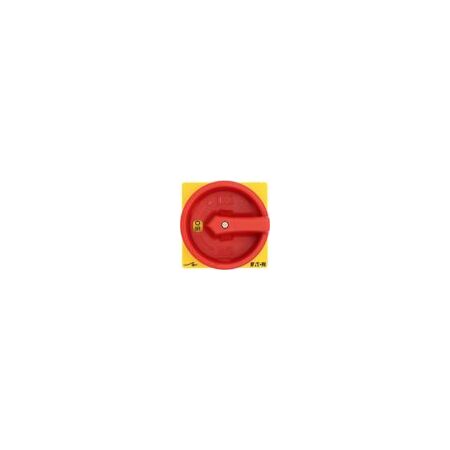

- Red rotary handle actuator
- Dimensions (H x L x W): 70mm x 90mm x 54mm
- Weight: 0.22 kg
Key Features
- 32 A rated current, 3-pole main switch
- Emergency switching off function with red rotary handle and yellow locking ring
- Lockable in the 0 (Off) position for safety
- Rear mounting with IP65 front side protection
- Mechanical lifespan of 300,000 operations
- Suitable for branch circuits and motor disconnect (UL/CSA certified)
- Rated breaking capacity up to 300 A depending on voltage
- Wide ambient operating temperature range from -25 °C to 50 °C
- Shock resistance of 15 g according to IEC/EN standards
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and correct mounting.
Applications
- Industrial and commercial electrical installations
- Motor disconnect and branch circuit isolation
- Emergency stop and safety switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Eaton warranty against manufacturing defects applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller P1-32/V/SVB main switch is available for immediate purchase, ideal for industrial and commercial electrical safety applications.
