32A 3 Pole Main Switch | Emergency Off Function | IP65 Rated | Surface Mount by Eaton

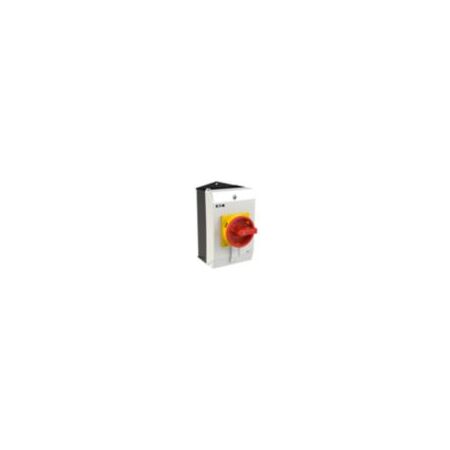

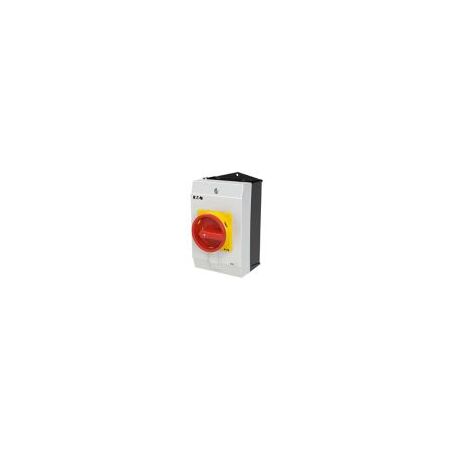

The 32A 3 pole main switch features an emergency off function with a red rotary handle and yellow locking ring—ideal for industrial and commercial electrical installations. Built for safety and durability, it offers a high mechanical lifespan of 300,000 operations and is IP65 rated for protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 32A 3 Pole Main Switch | Emergency Off Function | IP65 Rated | Surface Mount by Eaton
Brand: Eaton
SKU: Y7-207314
Alternatively Known As: Eaton P1 Main Switch, 32A Main Switch, Emergency Off Switch, 3 Pole Main Switch, Surface Mount Main Switch
Technical Specifications
- Rated current: 32 A
- Number of poles: 3
- Rated breaking capacity: up to 320 A depending on voltage
- Rated operational power: up to 18.5 kW
- Rated impulse withstand voltage: 6000 V AC
- Degree of protection: NEMA 12, IP65 front side
- Mechanical lifespan: 300,000 operations
- Operating temperature range: -25 °C to 40 °C
- Terminal capacity: 1 x (1.5 - 6) mm² solid/stranded, 2 x (1 - 4) mm² flexible with ferrules
- Mounting method: Surface mounting
- Shock resistance: 15 g mechanical
- Lockable in Off position with red rotary handle and yellow locking ring
- Dimensions (H x L x W): 180mm x 115mm x 100mm
- Weight: 0.443 kg
Key Features
- 32 A rated current, 3 pole main switch
- Emergency switching off function with red rotary handle and yellow locking ring
- Lockable in the 0 (Off) position for safety
- Surface mounting with flexible mounting position
- High mechanical lifespan of 300,000 operations
- Degree of protection: NEMA 12, IP65 front side
- Rated breaking capacity up to 320 A depending on voltage
- Suitable for ground mounting
- Shock resistance 15 g mechanical
- Rated operational power up to 18.5 kW depending on voltage
- Rated impulse withstand voltage 6000 V AC
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial and commercial electrical installations
- Emergency power off and main switch applications
- Surface mounting for easy access and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller P1-32/I2/SVB Main Switch is available for immediate purchase, ideal for industrial and commercial electrical safety applications.
