32A Cam Switch | 3 Pole Configuration | Front Mount Design | 60° Switching Angle | @Pack of 1 | by Clipsal

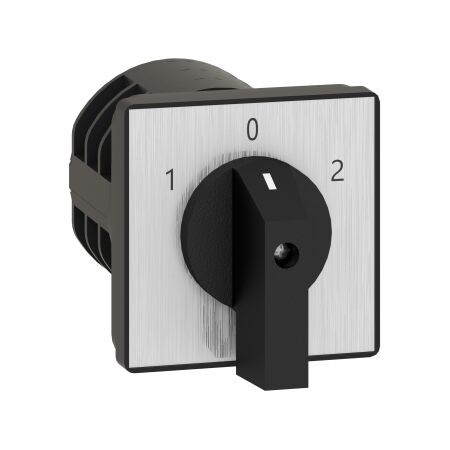

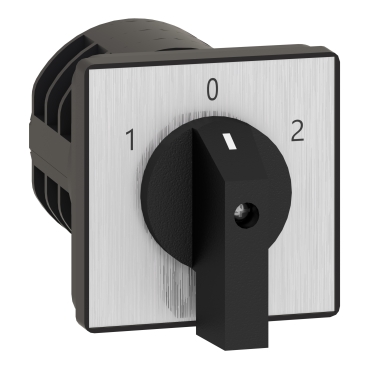

The 32A Cam Switch is designed for reliable circuit switching in industrial and commercial applications. With a 3 pole configuration and a front mounting design, it ensures easy installation and versatility. Built for durability with a plastic housing, this switch features a 60° switching angle, making it ideal for control panels and motor isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 32A Cam Switch | 3 Pole Configuration | Front Mount Design | 60° Switching Angle | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK30F003UP
Alternatively Known As: 32A Cam Switch, 3 Pole Changeover Switch, Clipsal Cam Switch, Industrial Rotary Switch, SCHK30F003UP
Technical Specifications
- Rated Current: 32A
- Number of Poles: 3
- Switching Positions: 1-0-2
- Switching Angle: 60°
- Mounting: Front panel
- Housing Material: Plastic
- Dimensions: 64x64mm front plate
- Markings: 1 0 2
- Dimensions (H x L x W): 64mm x 80mm x 64mm
- Weight: 0.35 kg
Key Features
- 32A rated cam switch for reliable circuit switching
- 3 pole configuration for versatile applications
- Front mounting design for easy installation
- Plastic housing for electrical insulation and durability
- 60° switching angle with positions marked 1-0-2
- Compact 64x64mm form factor
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial machinery control panels
- Switchboards and distribution boards
- Motor control and isolation
- Commercial and light industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Reliable switching minimizes downtime and energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 32A Cam Switch SCHK30F003UP is available for immediate purchase. Ideal for industrial and commercial electrical control applications.
