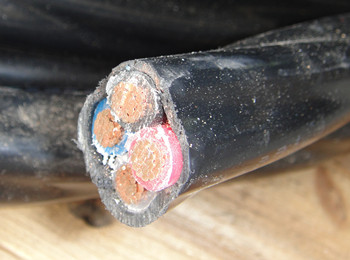

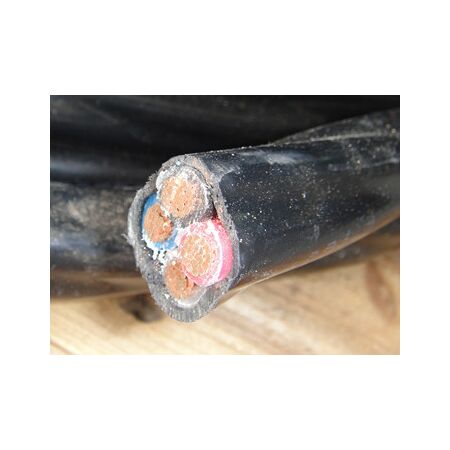

35mm 4 Core Black XLPE Cable | 600/1000V Rated | UV Resistant Sheath | by Electra Cables
The 35mm 4 Core Black XLPE Cable is designed for high current capacity with its 35mm² copper conductor and XLPE insulation, making it ideal for industrial and commercial power distribution. Rated for 600/1000V applications, this cable features a UV resistant black sheath for outdoor durability and is suitable for direct burial and conduit installation, ensuring safety and longevity in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 35mm 4 Core Black XLPE Cable | 600/1000V Rated | UV Resistant Sheath | by Electra Cables
Brand: Electra Cables
SKU: XLPE4350-100BLK
Alternatively Known As: 35mm 4C XLPE Cable, 4 Core 35mm Power Cable, 35mm 4 Core Mains Cable, 600/1000V XLPE Cable, Heavy Duty 4 Core Cable
Technical Specifications
- Conductor: Plain annealed copper, 35mm²
- Cores: 4
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: UV resistant black PVC
- Voltage Rating: 600/1000V
- Temperature Rating: -25°C to +90°C
- Standards: AS/NZS 5000.1
- Flame Retardant: Yes
- Halogen Free: Yes
- Minimum Bending Radius: 8 x cable diameter
- Dimensions (H x L x W): 38mm x 100000mm x 38mm
- Weight: 4.2 kg
Key Features
- 35mm² 4 core copper conductor for high current capacity
- XLPE (Cross-Linked Polyethylene) insulation for enhanced thermal and electrical properties
- Rated for 600/1000V applications
- UV resistant black sheath for outdoor durability
- Suitable for direct burial and conduit installation
- Low smoke, halogen free for improved safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and above ground installations
- Switchboards and control panels
- Mining and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and low voltage applications
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke, halogen-free design reduces toxic emissions in case of fire
- UV resistant sheath extends cable lifespan and reduces replacement frequency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Electra Cables 35mm 4 Core Black XLPE 600/1000V Cable is available for immediate purchase. Ideal for industrial, commercial, and infrastructure power distribution applications.
