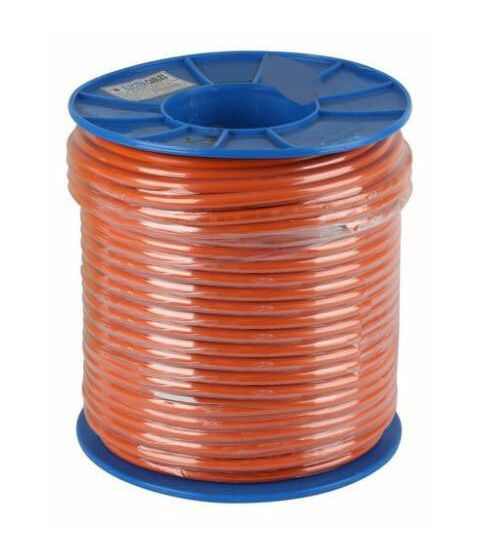

35mm Flexible Single Core XLPE Orange Circular Cable | UV Stabilised Sheath | 0.6/1kV Voltage Rating | @KM of 0.10 | by Electra Cables
The 35mm Flexible Single Core XLPE Orange Circular Cable is designed for reliable power distribution in industrial and commercial settings. With a UV stabilised orange sheath and XLPE insulation, it offers high temperature and chemical resistance, making it ideal for both underground and above ground installations. Supplied in a convenient 100m roll, this cable ensures easy installation and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 35mm Flexible Single Core XLPE Orange Circular Cable | UV Stabilised Sheath | 0.6/1kV Voltage Rating | @KM of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: FXLPE1350-BORE
Alternatively Known As: 35mm XLPE Cable, 35mm Orange Circular Cable, Flexible Single Core Power Cable, 35mm Electrical Cable, XLPE Insulated Cable
Technical Specifications
- Conductor: Flexible stranded copper
- Conductor size: 35mm²
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: UV stabilised orange PVC
- Voltage rating: 0.6/1kV
- Temperature rating: -25°C to +90°C
- Roll length: 100m
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 35mm x 100000mm x 35mm
- Weight: 35 kg
Key Features
- Flexible single core copper conductor for easy installation
- XLPE (Cross-Linked Polyethylene) insulation for high temperature and chemical resistance
- UV stabilised orange sheath for outdoor and underground use
- Suitable for fixed wiring in industrial and commercial environments
- Supplied in a 100m roll for convenience
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Industrial power distribution
- Switchboards and control panels
- Underground and above ground installations
- Mining and construction sites
- Renewable energy systems
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and sheath
Environmental Benefits
- XLPE insulation is free from halogens, reducing toxic emissions in case of fire.
- Durable design extends cable lifespan, reducing replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Electra Cables 35mm Flexible Single Core XLPE Orange Circular Cable 100m Roll is available for immediate purchase. Ideal for industrial, commercial, and construction power distribution applications.
