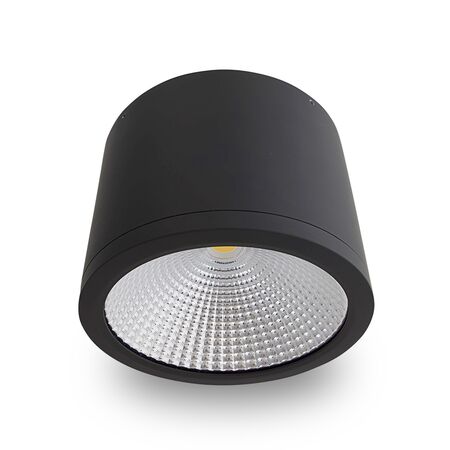

35W LED IP54 Dimmable Surface Mount Downlight | Black Finish | 3000K Warm White | 60° Beam Angle | by atom
The 35W LED IP54 Dimmable Surface Mount Downlight is perfect for creating a warm ambiance in residential and commercial spaces. With a sleek black finish and a 3000K warm white color temperature, it offers high efficiency of 113 lm/W and a long LED lifetime of 40,000 hours. Ideal for areas requiring dimmable lighting, this downlight features a glass diffuser for optimal light distribution and is designed for surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 35W LED Surface Downlight, IP54 Dimmable LED Downlight, Warm White LED Surface Mount Light, Atom LED Downlight Black
Technical Specifications
- Total System Efficiency: 113 lm/W
- IP Rating: IP54 front face only
- Body Material: Aluminium with powder-coated black finish
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 32 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- LED Type: COB
- CCT: 3000 K (Warm White)
- Beam Angle: 60°
- LED Lifetime: 40,000 hours (TM-21 reported)
- Driver Type: Dimmable (Phase cut), integrated constant current driver
- Driver Current: 800 mA
- Wiring: Re-wireable terminal block (3 pin)
- Switch Type: Inline
- Dimensions (H x L x W): 70mm x 150mm x 150mm
- Weight: 1.5 kg
Key Features
- Dimmable LED with phase cut driver
- IP54 rated front face for protection against dust and water splashes
- High system efficiency up to 113 lm/W
- Fixed adjustability with powder-coated black aluminium body
- Glass diffuser for optimal light distribution
- Long LED lifetime of 40,000 hours
- Colour rendering index (CRI) greater than 80
- 5-step MacAdam ellipse for consistent colour quality
- Inline switch type with re-wireable 3-pin terminal block
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor surface mounted lighting for residential and commercial spaces
- Suitable for areas requiring dimmable warm white lighting
- Ideal for general ambient lighting in offices, retail, and hospitality
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High luminous efficacy reduces energy consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The atom 35w LED IP54 dimmable surface mount downlight in black is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
