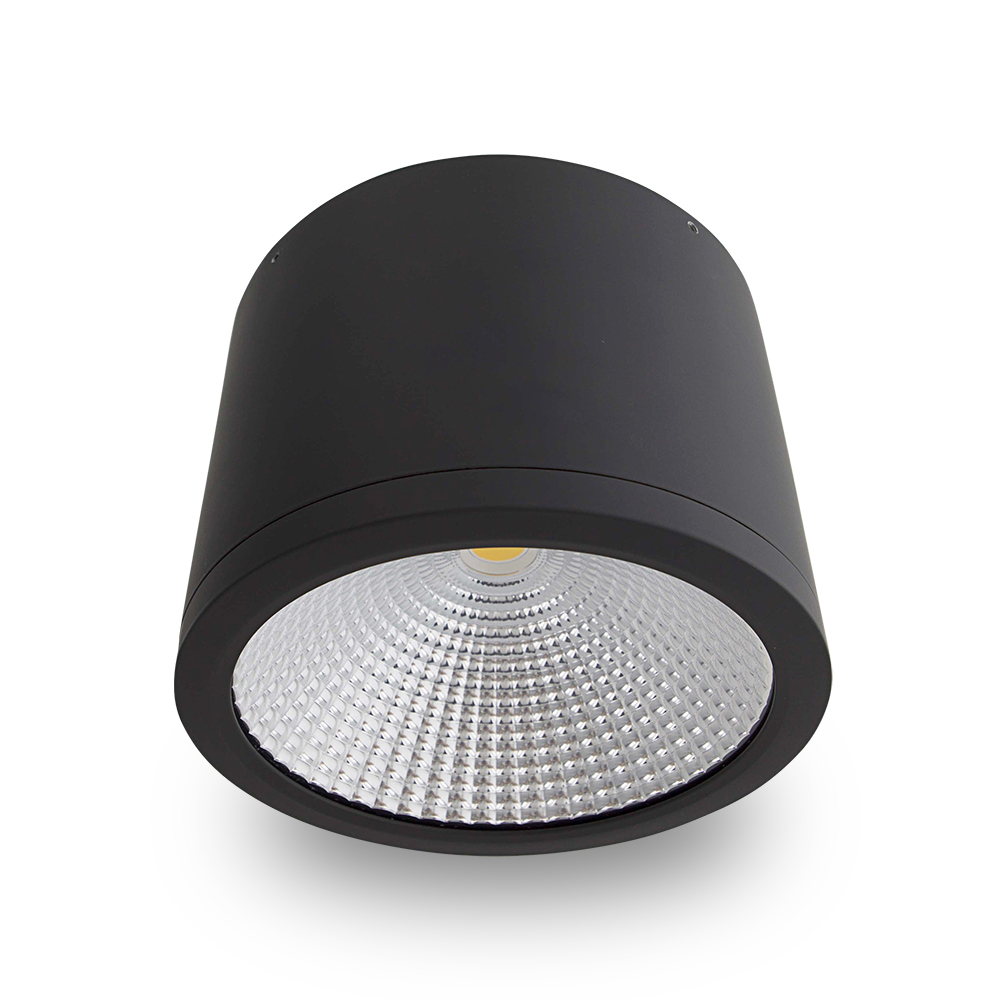

35W LED IP54 Dimmable Surface Mount Downlight | Black Finish | 4000K Cool White | 60° Beam Angle | by atom
The 35W LED IP54 Dimmable Surface Mount Downlight is perfect for both commercial and residential spaces, offering a sleek black finish and a cool white 4000K color temperature. With a high efficiency of 113 lm/W and a 60° beam angle, this downlight provides excellent illumination while being IP54 rated for protection against dust and water splashes. Ideal for creating ambient lighting in offices, retail, and hospitality settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 35W LED Surface Downlight, Dimmable LED Downlight, IP54 LED Ceiling Light, Cool White LED Surface Mount Light
Technical Specifications
- Power: 32W maximum
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- LED Type: COB
- Colour Temperature: 4000K Cool White
- Lumens Output: 3630 lm
- Beam Angle: 60°
- CRI: >80
- IP Rating: IP54 front face only
- Driver: Integrated dimmable constant current driver, 800 mA
- Operating Temperature: -20°C to 40°C
- Switch Type: Inline
- Wiring: Re-wireable 3-pin terminal block
- Dimensions (H x L x W): 60mm x 150mm x 150mm
- Weight: 1.5 kg
Key Features
- Dimmable LED downlight with phase cut dimming
- IP54 rated front face for protection against dust and water splashes
- High system efficiency of 113 lm/W
- Single COB LED with 60° beam angle
- Colour Rendering Index (CRI) greater than 80 for good colour accuracy
- Long LED lifetime of 40,000 hours based on TM-21
- Powdercoated black aluminium body with glass diffuser
- Operating temperature range from -20°C to 40°C
- Inline switch type with re-wireable 3-pin terminal block
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor surface mounted lighting for commercial and residential spaces
- Suitable for areas requiring dimmable LED downlighting with IP54 front face protection
- Ideal for offices, retail, hospitality, and general ambient lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and regions.
Available Now
The Atom 35W LED IP54 Dimmable Surface Mount Downlight is available for immediate purchase, ideal for commercial and residential indoor lighting applications requiring efficient and dimmable LED solutions.
