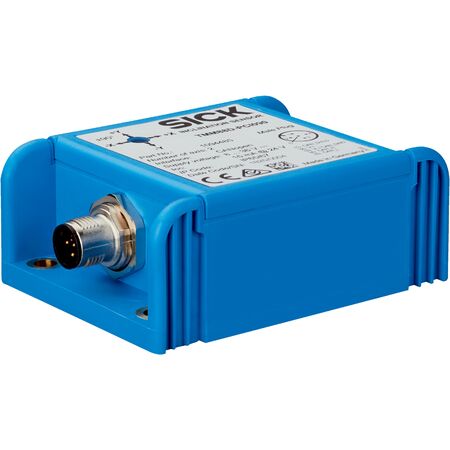

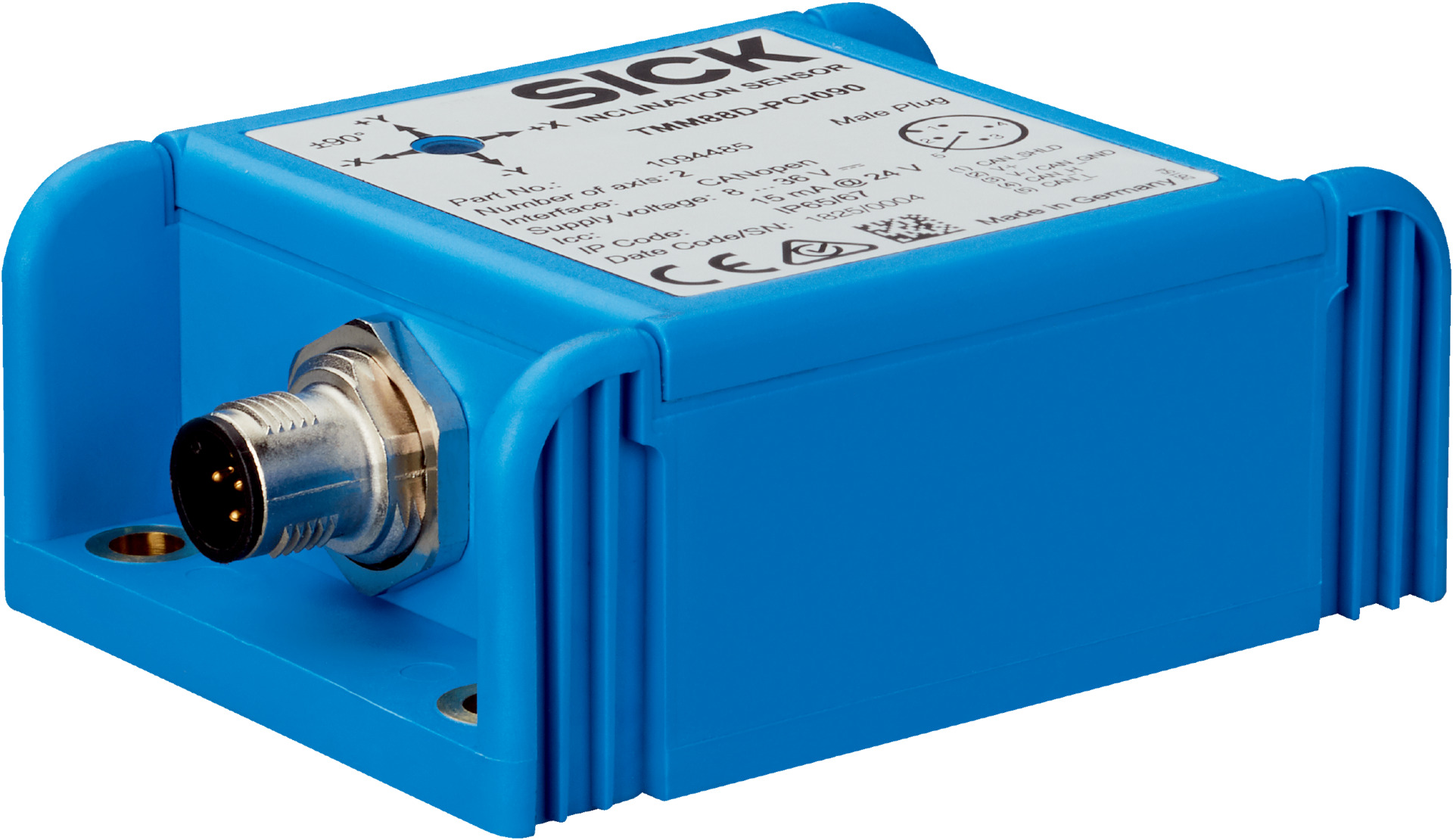

360 Degree Angle Sensor | High Resolution 0.01° | IP67 & IP69K Protection | by SICK
The 360 Degree Angle Sensor TMS88D-PCI360 offers high precision with a resolution of 0.01°, making it ideal for industrial automation and robotics applications. With a robust design featuring IP67 and IP69K protection, it operates effectively in harsh environments, ensuring reliable performance for position and motion control tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz with digital filter
- Sampling rate: 200 Hz
- Pitch (Euler angle): ±90° (Pitch), ±180° (Roll)
- Acceleration: ±8 g (x-, y-, z-axis)
- Turning rate: ±250 °/s (x-, y-, z-axis)
- Communication interface: CANopen
- Device profile: CiA DSP-410
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Connection type: Male and female M12, 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA at 24 V
- Reverse polarity and short-circuit protection included
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- High resolution of 0.01° for precise measurements
- 360° measuring range with static accuracy of ±0.3°
- Dynamic measurement accuracy of ±0.5°
- Robust plastic (PBT) housing with IP67 and IP69K protection
- Wide operating temperature range from –40 °C to +80 °C
- CANopen communication interface with CiA DSP-410 device profile
- Reverse polarity and short-circuit protection
- Fast initialization time of 120 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with CANopen devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise angle measurement
- Robotics for position and motion control
- Machine safety systems requiring accurate rotational data
- Automotive and aerospace testing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (<15 mA at 24 V) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK TMS88D-PCI360 angle sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
