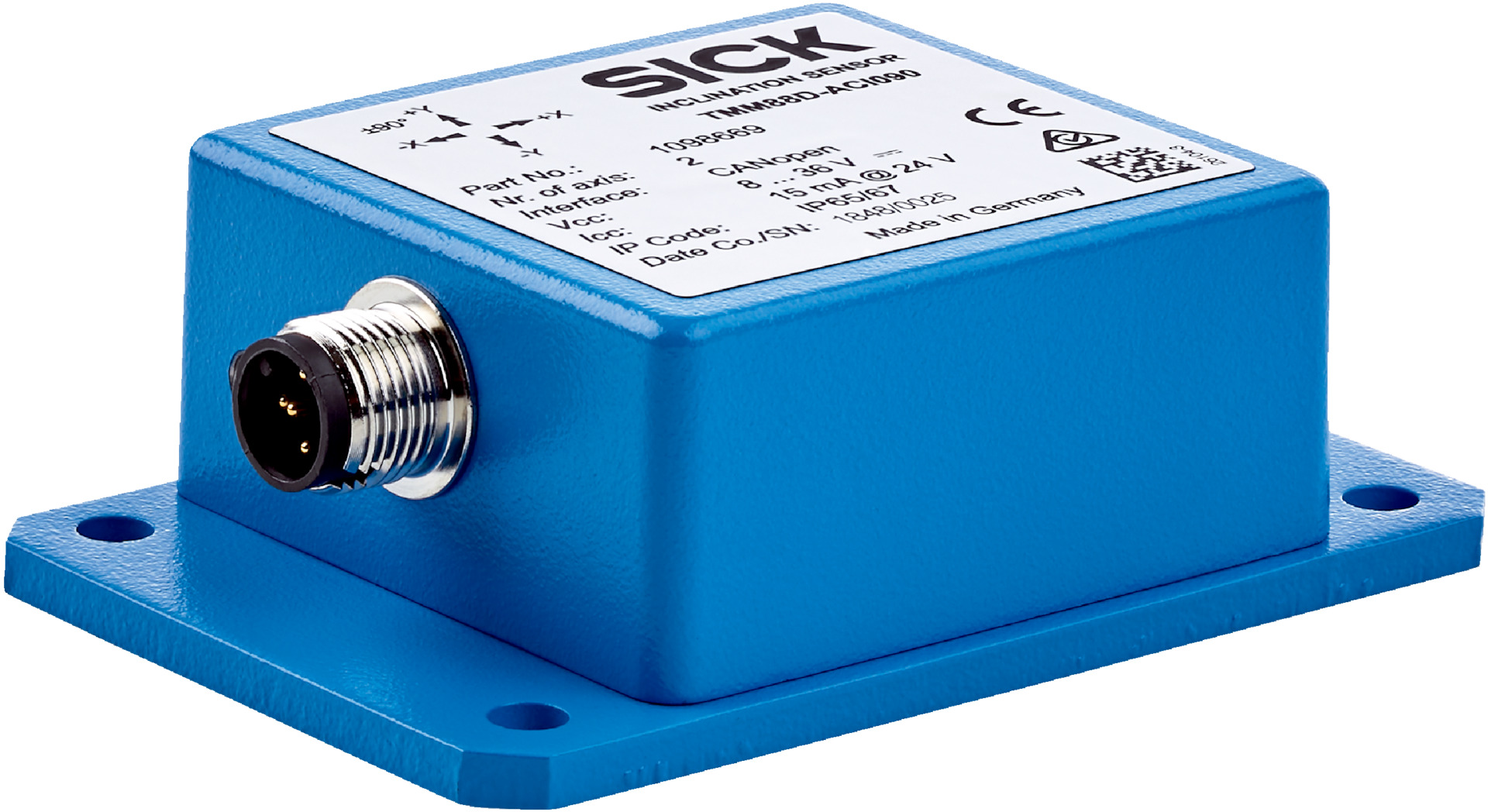

360 Degree Angle Sensor | High Resolution 0.01° | IP67 & IP69K Protection | by SICK
The 360 Degree Angle Sensor offers high precision with a resolution of 0.01°, making it ideal for industrial automation and robotics. With a measuring range of 360° and static accuracy of ±0.3°, this sensor ensures reliable position feedback. Its robust aluminum housing features IP67 and IP69K protection, making it suitable for harsh environments, while the CANopen communication interface allows for seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Communication interface: CANopen
- Device profile: CiA DSP-410
- Address setting: 0 to 127, default 10
- Data transmission rate: 10 kbit/s to 1,000 kbit/s with automatic baud rate detection
- Connection type: Male and female M12 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA at 24 V
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 31mm x 90mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution of 0.01° for precise angle measurement
- Measuring range of 360° with static accuracy of ±0.3°
- Robust aluminum housing with IP67 and IP69K protection
- Supports CANopen communication with CiA DSP-410 device profile
- Wide operating temperature range from –40 °C to +80 °C
- Reverse polarity and short-circuit protection
- Fast initialization time of 120 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise angle measurement
- Robotics and machinery requiring accurate position feedback
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low current consumption (<15 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

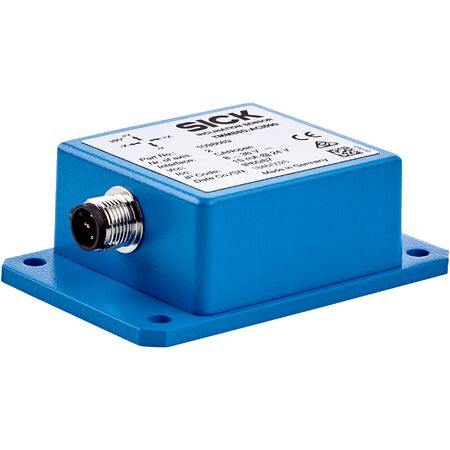

The SICK TMS88D-ACI360 angle sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
