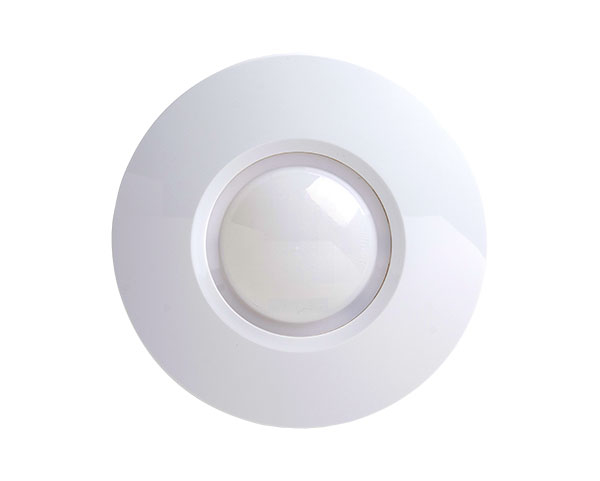

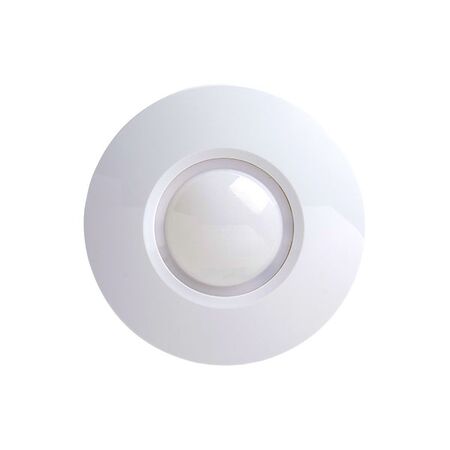

360 Degree Ceiling Mount Dual Tech Motion Detector Tecom
Tecom ceiling mount dual tech detector features 360 degree coverage, quad element pyro and microwave. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 360° Ceiling Mount Dual Tech Detector, Premier 360DT, Ceiling PIR Microwave Detector, Quad Element Ceiling Motion Sensor
Technical Specifications
- Detection Technology: Omni-directional quad-element PIR and K-band microwave
- Coverage: 9.3 m diameter, 360°
- Microwave Frequency: 24 GHz
- Recommended Mounting Height: 2.4–3.6 m
- Operating Voltage: 9–15 V DC
- Typical Current: 0.6 mA at 15 V DC
- Alarm Relay: Normally closed, 24 V DC, 50 mA resistive load
- Operating Temperature: -35°C to +55°C
- Environmental Classification: Class II
- Product Grade: Grade 2
- Manufacturing: Made in England
- Dimensions (H x L x W): 30mm x 113mm x 113mm
- Weight: 0.125 kg
Key Features
- True 360° ceiling-mounted detection coverage
- Combines quad-element passive infrared sensing with microwave detection
- Dual-technology operation helps reduce false alarms
- Digital microprocessor signal processing
- Suitable for partitioned areas, commercial premises and residential properties
- Maximum mounting height of 3.6 m
- Indoor-use detector with compact low-profile housing
Professional Installation Requirements
- Installation, wiring and commissioning should be carried out by a qualified security technician. Connect to a compatible burglar alarm control panel or power supply providing 9–15 V DC and follow the manufacturer’s installation instructions.
Applications
- Residential intruder alarm systems
- Commercial security systems
- Retail premises and shopping areas
- Offices and partitioned workspaces
- Areas where ceiling mounting avoids obstructions from furniture or partitions
Standards & Compliance
- AS/NZS 2201.1:2007: relevant to the design, installation, commissioning and maintenance of intruder alarm systems in Australia and New Zealand; verify project-specific requirements.
- EN 50131-2-4 Grade 2 Class II: manufacturer-stated detector performance classification
Environmental Benefits
- Low-current operation helps reduce energy consumption in continuously powered alarm systems
- Durable detector construction and a five-year replacement warranty can reduce replacement frequency and electronic waste
- Electronic components should be recycled through appropriate e-waste collection channels at end of service life
Warranty Information
Five-year replacement warranty stated by Texecom for the Premier 360 DT, subject to the manufacturer’s warranty terms.
Available Now
Available through security-equipment distributors and authorised Australian alarm-system suppliers; confirm current stock and regional model availability before ordering.
