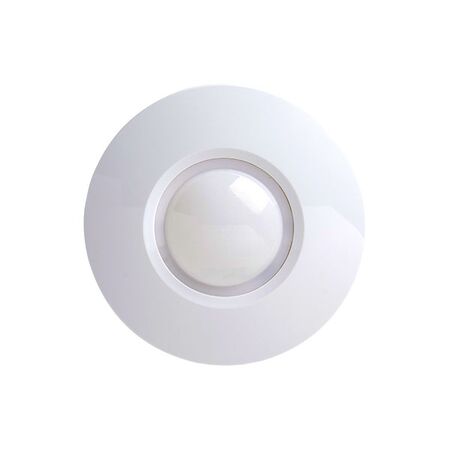

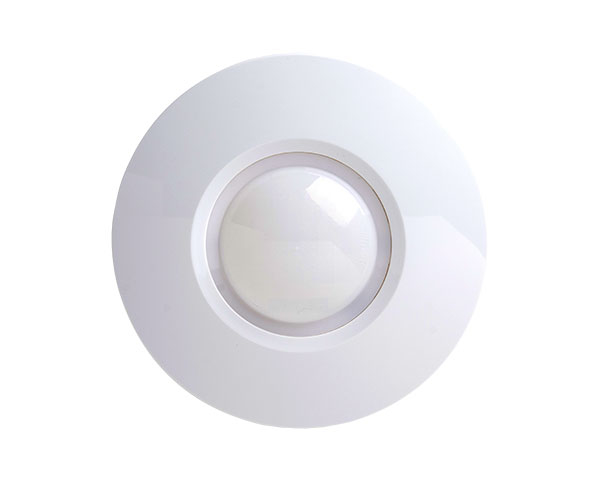

360 Degree Ceiling Mount Quad PIR Motion Detector Tecom
Tecom ceiling mount quad PIR motion detector features 360 degree coverage and a low sensitivity mode. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Texecom CQ Ceiling PIR, 360° Quad PIR Detector, Ceiling-Mount Intruder Alarm Motion Sensor
Technical Specifications
- Detection Technology: Omni-directional quad-element passive infrared (PIR)
- Coverage: 360°
- Detection Range: Up to 9.3m diameter
- Mounting Height: 2.4m to 3.6m
- Operating Voltage: 9-15V DC, nominal 12V DC
- Maximum Current: 12mA at 12V DC
- Quiescent Current: 9.3mA at 12V DC
- Operating Temperature: -10°C to 55°C
- Relative Humidity: 0-95% non-condensing
- Sensitivity: Selectable low-sensitivity mode
- Installation Environment: Indoor use only
- Alarm Classification: EN 50131-2-2, EN 50131-1 and PD6662:2017, Grade 2 Class II ([d347awuzx0kdse.cloudfront.net](https://d347awuzx0kdse.cloudfront.net/securityws/content-file/Capture_Installation.pdf?v=7a2c44c4c21b3bd8e7ff9762500e92db020ff2c5&utm_source=openai))
- Dimensions (H x L x W): 43mm x 125mm x 125mm
- Weight: 0.163 kg
Key Features
- True 360° ceiling-mounted detection coverage
- Omni-directional quad-element PIR sensing
- Optional low-sensitivity mode to improve false-alarm immunity
- 9.3m maximum diameter coverage pattern
- Sealed optics and encapsulated electronics
- Built-in end-of-line resistor selection
- Suitable for commercial and residential intruder alarm systems
- Manufactured in England
Professional Installation Requirements
- Installation, wiring, walk testing and commissioning should be performed by a suitably qualified security alarm installer in accordance with the alarm control panel manufacturer's instructions and applicable Australian requirements.
Applications
- Indoor intruder alarm systems
- Residential security systems
- Commercial security systems
- Offices, retail premises and healthcare facilities
- Open-plan areas requiring ceiling-mounted 360° motion detection
Standards & Compliance
- AS 2201.3-1991: Intruder alarm systems—Detection devices for internal use; this standard specifies performance requirements for internal intruder-alarm detection devices. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-us/standards/as-2201-3-1991-125100_saig_as_as_263348/?utm_source=openai))
- AS/NZS 2201.1:2007: Intruder alarm systems—Client's premises—Design, installation, commissioning and maintenance. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-au/standards/as-nzs-2201-1-2007-117334_saig_as_as_245553/?utm_source=openai))
Environmental Benefits
- Low operating current helps minimise power consumption within the alarm system
- Long product service life and a 10-year manufacturer warranty can reduce replacement frequency and associated waste
- WEEE disposal guidance supports responsible end-of-life recycling of the electronic detector
Warranty Information
Texecom states that new Capture range products purchased by end users are covered by a 10-year warranty; the installation manual also references a limited lifetime warranty subject to the manufacturer's terms. ([d347awuzx0kdse.cloudfront.net](https://d347awuzx0kdse.cloudfront.net/securityws/content-file/Capture_Installation.pdf?v=7a2c44c4c21b3bd8e7ff9762500e92db020ff2c5))
Available Now
Available through Texecom and authorised Australian security-system distributors.
