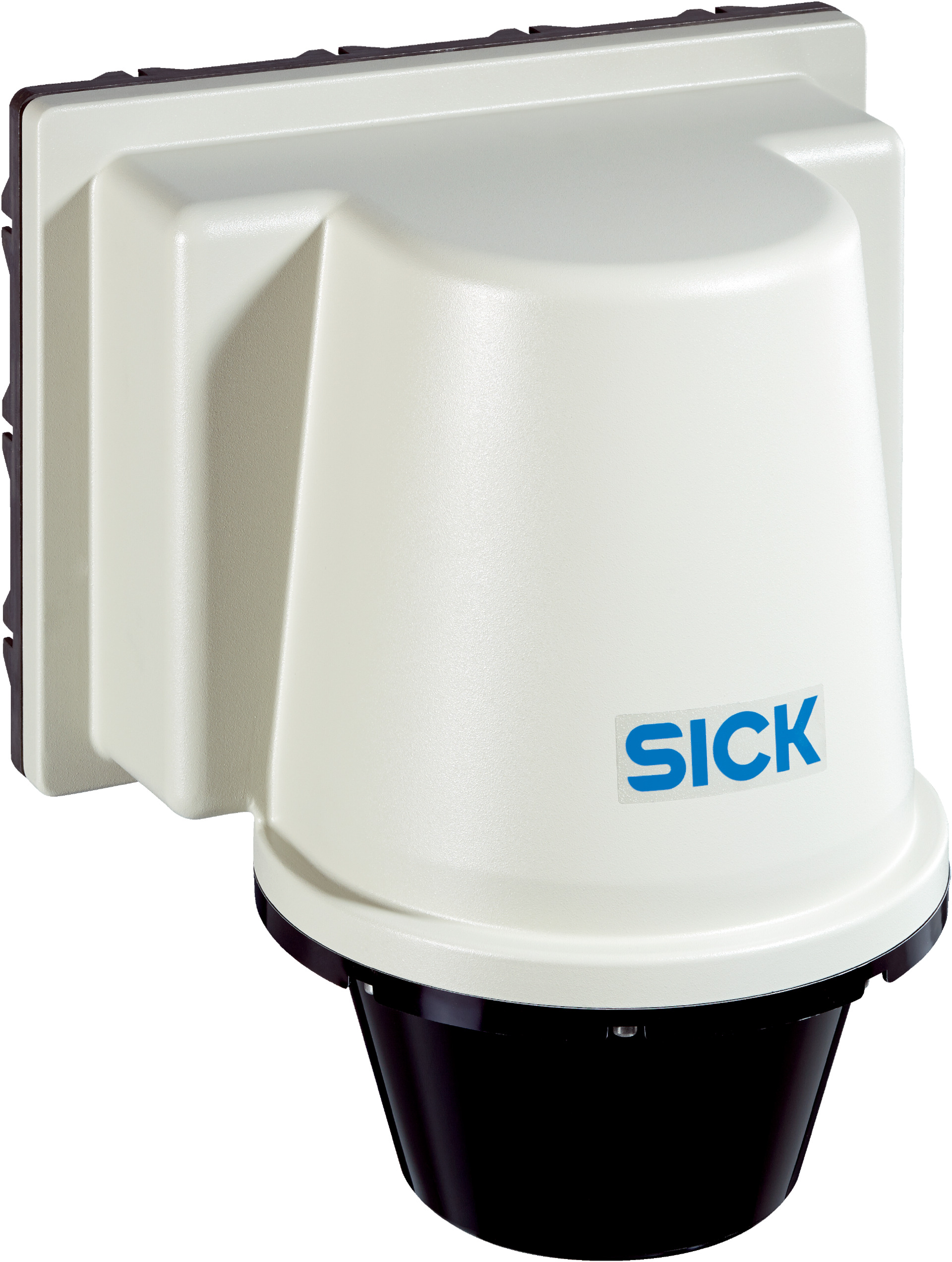

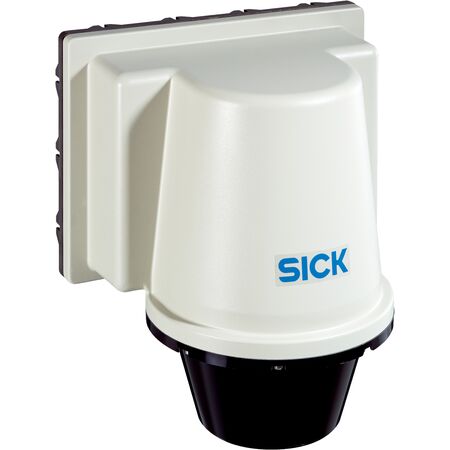

360 Degree Laser Scanner LD-LRS3601 | Infrared Light Source | IP67 Rated | 250m Working Range | by SICK
The 360 Degree Laser Scanner LD-LRS3601 is designed for precise environmental scanning and object detection, featuring a 360° horizontal aperture angle and an infrared light source for enhanced safety. With a working range of 2.5 m to 250 m and an adjustable scanning frequency, it's perfect for industrial automation and safety monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 360°
- Angular resolution: 0.0625° interlaced
- Scanning frequency: 5 Hz to 15 Hz
- Working range: 2.5 m to 250 m
- Scanning range at 10% remission factor: 80 m
- Scanning range at 90% remission factor: 250 m
- Connection type: 1 x 20-pin Harting plug
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W plus 140 W heating
- Housing material: Polyurethane rigid integral foam
- Enclosure rating: IP67
- Protection class: III
- MTBF: 86 years
- MTTFD: > 100 years
- Data transmission rate: up to 100 Mbit/s Ethernet, 19,200 to 115,200 Baud serial
- Digital outputs: 1 (digital)
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +80 °C
- Dimensions (H x L x W): 391mm x 250mm x 350mm
- Weight: 9.1 kg
Key Features
- 360° horizontal aperture angle with 0.0625° interlaced resolution
- Infrared light source (905 nm) with laser class 1 safety
- Working range from 2.5 m up to 250 m
- Scanning frequency adjustable between 5 Hz and 15 Hz
- Heating function for operation in cold environments
- IP67 rated polyurethane rigid integral foam housing
- Ethernet (TCP/IP) and RS-422 serial communication interfaces
- Digital output available
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance and optimal performance.
Applications
- Outdoor and indoor environment scanning
- Object detection and ranging
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing ensures long product life reducing waste
- Low power consumption with efficient infrared laser technology
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LD-LRS3601 laser scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
