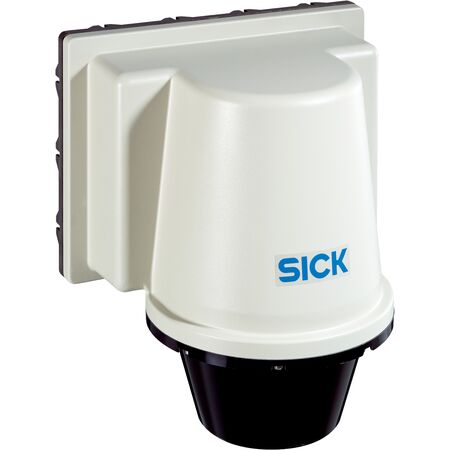

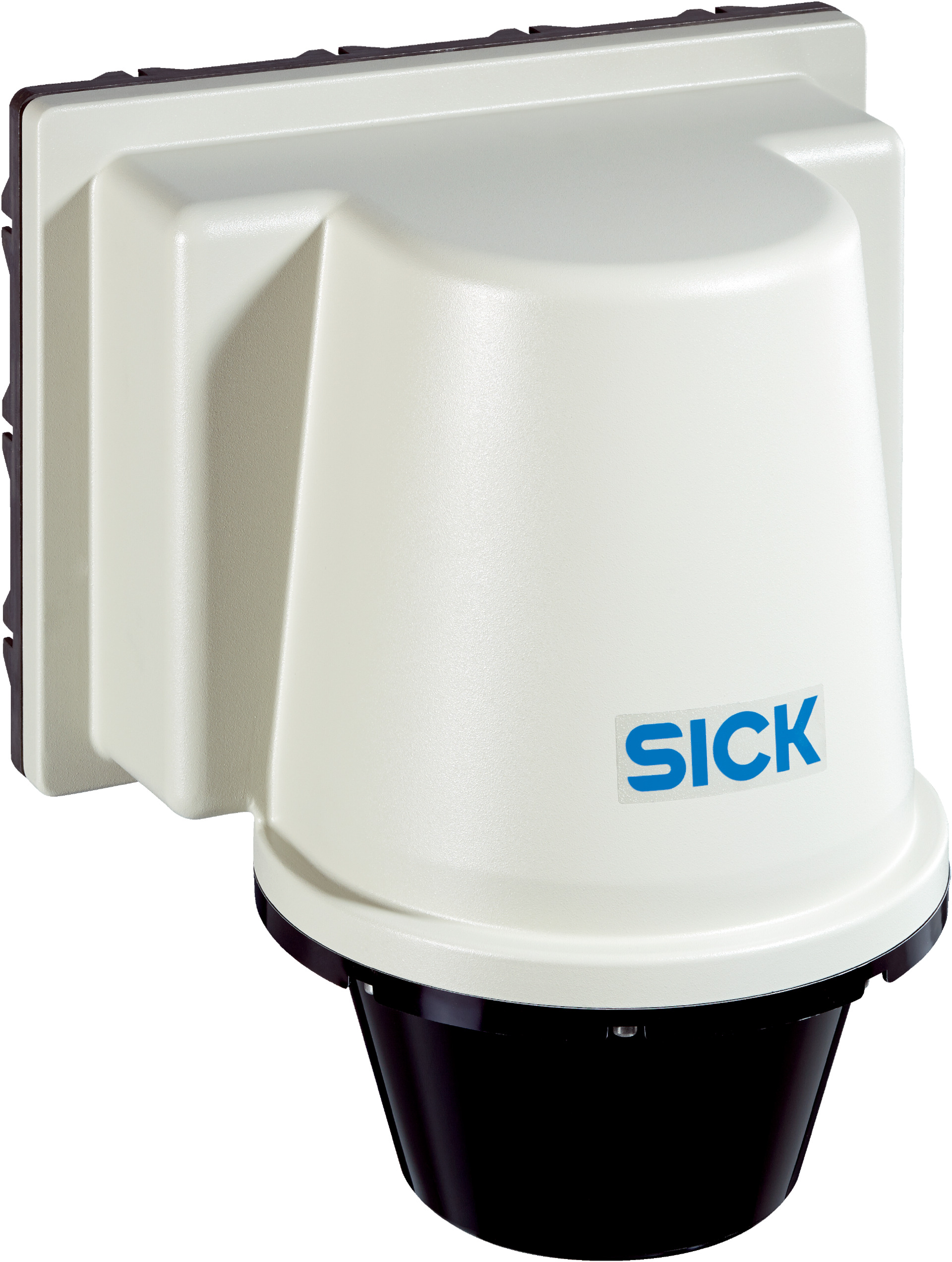

360 Degree Laser Scanner LD-LRS3600 | Infrared Light Source | IP67 Rated | by SICK
The 360 Degree Laser Scanner LD-LRS3600 features a 360° horizontal aperture angle and 0.0625° interlaced resolution, making it ideal for both indoor and outdoor environment scanning. With a working range of 2.5 m to 250 m and an IP67 rated housing, this scanner is built for industrial automation and safety monitoring, ensuring reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 360°
- Angular resolution: 0.0625° interlaced
- Scanning frequency: 5 Hz to 15 Hz
- Working range: 2.5 m to 250 m
- Scanning range at 10% remission factor: 80 m
- Scanning range at 90% remission factor: 250 m
- Connection type: 1 x 20-pin Harting plug
- Supply voltage: 24 V DC ± 15%
- Power consumption: 36 W plus 140 W heating
- Housing material: Polyurethane rigid integral foam
- Enclosure rating: IP67
- Protection class: III
- Weight: 9.1 kg
- MTBF: 86 years
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +80 °C
- Data transmission rate: 19,200 Baud to 115,200 Baud
- Digital outputs: 4 digital outputs
- Dimensions (H x L x W): 391mm x 250mm x 350mm
- Weight: 9.1 kg
Key Features
- 360° horizontal aperture angle with 0.0625° interlaced resolution
- Infrared light source (905 nm) with laser class 1 safety
- Working range from 2.5 m up to 250 m depending on remission factor
- Heating function for operation in cold environments
- IP67 rated polyurethane rigid integral foam housing
- Multiple interfaces including Ethernet TCP/IP and RS-422 serial
- Supports up to 6 field sets and 10 simultaneous evaluation cases
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Field evaluation and object detection
- Industrial automation and safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing ensures long product life reducing waste
- Low power consumption with efficient infrared laser technology
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LD-LRS3600 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
