360 Degree Safety Sensor | High Precision Angle Measurement | IP67 & IP69K Rated | by SICK
The 360 Degree Safety Sensor offers high precision angle measurement with a static accuracy of ±0.3° and dynamic accuracy of ±0.5°. Designed for industrial automation, it features a robust IP67 and IP69K rated housing, ensuring reliability in harsh environments. Ideal for safety-related applications, this sensor supports SAE J1939 communication for seamless integration into machine control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 619 years (EN ISO 13849-1)
- Number of axis: 1
- Measuring range: 360°
- Resolution: 0.01°
- Static measurement accuracy: ±0.3°
- Dynamic measurement accuracy: ±0.5°
- Temperature coefficient (zero point): Typ. ±0.01°/K
- Limit frequency: 0.1 Hz to 25 Hz (with digital filter)
- Sampling rate: 200 Hz
- Pitch (Euler angle): ±90° (Pitch), ±180° (Roll)
- Acceleration: ±8 g (x-, y-, z-axis)
- Turning rate: ±250 °/s (x-, y-, z-axis)
- Communication interface: SAE J1939
- Address setting: 0 to 253 (default 128)
- Data transmission rate: 250 kbit/s to 500 kbit/s (default 250 kbit/s)
- Connection type: Male and Female M12, 5-pin connectors
- Supply voltage: 8 V DC to 36 V DC
- Current consumption: < 15 mA @ 24 V
- Reverse polarity and short-circuit protection included
- Housing material: Plastic (PBT)
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +80 °C
- Storage temperature range: –40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 90mm x 66mm
- Weight: 0.2 kg
Key Features
- High accuracy with static measurement accuracy of ±0.3° and dynamic accuracy of ±0.5°
- 360° measuring range with 0.01° resolution
- Robust housing with IP67 and IP69K protection ratings
- Wide operating temperature range from –40 °C to +80 °C
- Supports SAE J1939 communication interface with configurable parameters
- Reverse polarity and short-circuit protection
- Fast initialization time of 120 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise angle measurement
- Safety-related applications requiring reliable sensor data
- Machine control systems with SAE J1939 communication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low current consumption (<15 mA) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

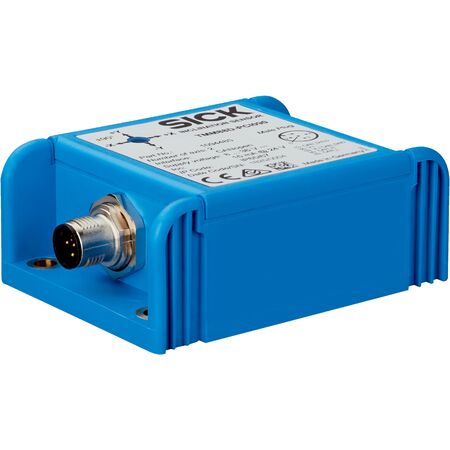

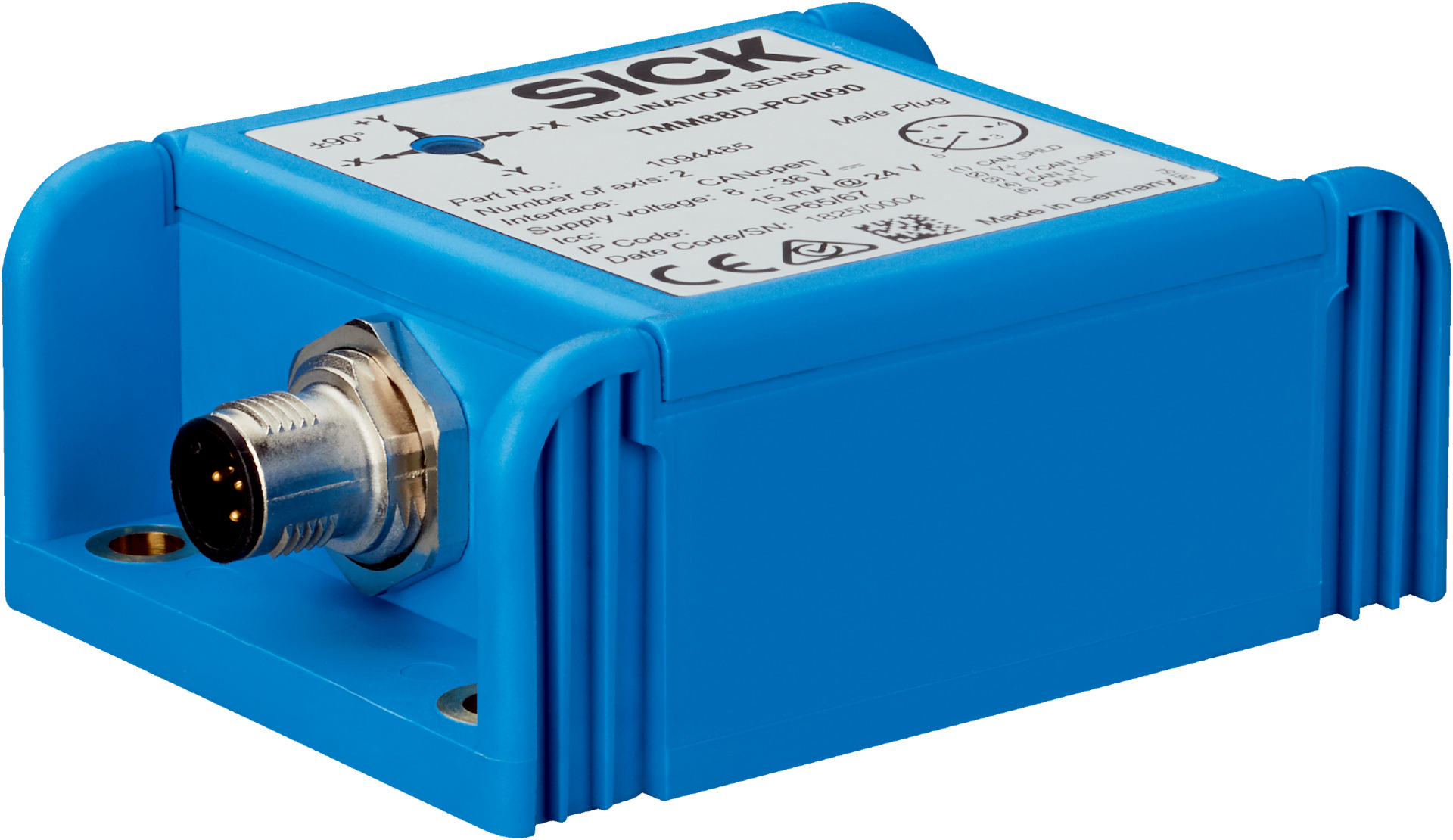

The SICK TMS88D-PJI360 sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise angle measurement.
