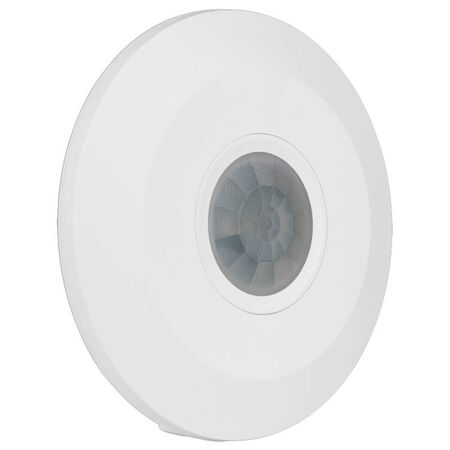

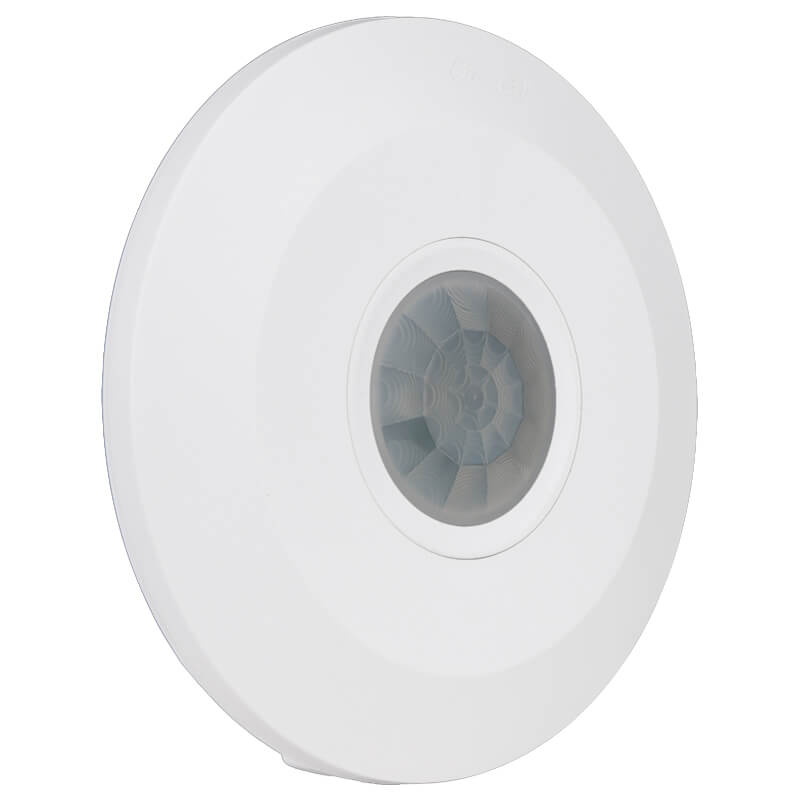

360° PIR Ceiling Motion Sensor | Adjustable Light Sensitivity | 8m Detection Range | Low Power Consumption | by Majortech
The 360° PIR Ceiling Motion Sensor offers advanced motion and body heat detection, making it perfect for both residential and commercial applications. With a detection range of up to 8 meters and adjustable ambient light sensitivity from <3 to 2000 Lux, this sensor ensures efficient energy management and enhanced security. Ideal for hallways, offices, and storage areas, it operates on low power consumption, making it an eco-friendly choice.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 360 Degree PIR Motion Sensor, Ceiling Mounted Motion Detector, Infrared Motion Sensor
Technical Specifications
- Function: Motion and body heat detection
- Detection Area: 360°
- Detection Distance: Up to 8 meters
- Detection Motion Speed: 0.6 to 1.5 m/s
- Ambient Light Sensitivity: Adjustable from <3 to 2000 Lux
- Installation Height: 2.2m to 4m
- Voltage: 220 to 240V AC
- Power Frequency: 50/60Hz
- Rated Load: 2000W for Incandescent, 1000W for LED/CFL
- Time Delay: Adjustable from 10 seconds (±3 sec) to 15 minutes (±2 min)
- Power Consumption: Less than 0.5W
- Mounting: Ceiling mount
- Working Temperature: -20°C to 40°C
- Working Humidity: Less than 93% RH
- IP Rating: IP20 (Indoor use)
- Standards: IEC 60669-1 / 60669-2-1, AS/NZS 60669.1 / 60669.2.1
- Dimensions (H x L x W): 40mm x 80mm x 80mm
- Weight: 0.2 kg
Key Features
- 360° detection range
- Adjustable ambient light sensitivity from <3 to 2000 Lux
- Detection distance up to 8 meters
- Time delay adjustable from 10 seconds to 15 minutes
- Low power consumption of less than 0.5W
- Ceiling mount installation
- Suitable for indoor use with IP20 rating
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure safety and compliance with electrical standards.
Applications
- Domestic: Cabinets, door entrances, hallways, stairways, attics, basements
- Business: Shops, offices, warehouses, storerooms, workshops, cable ways, substations, archives
Standards & Compliance
- AS/NZS 60669.1 – Switches for household and similar fixed electrical installations
- AS/NZS 60669.2.1 – Particular requirements for motion sensors
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy
- Helps extend the lifespan of lighting fixtures by preventing unnecessary usage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 360° PIR Ceiling Motion Sensor is available for immediate purchase, ideal for enhancing energy efficiency and security in residential and commercial indoor spaces.
