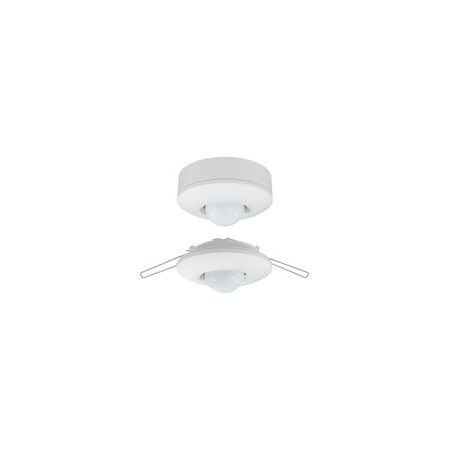

360º PIR Ceiling Sensor | Dual Mount | 22m Range
360º PIR ceiling sensor with dual mount options and up to 22m detection range—ideal for versatile indoor and outdoor use. Built for energy efficiency, with IP44/IP20 weatherproof rating and easy access controls.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 360º PIR Ceiling Sensor | Dual Mount | 22m Range
SKU: FMS-12080
Alternatively Known As: 360 Degree PIR Motion Sensor, Dual Mount Occupancy Sensor, Ceiling Mounted PIR Sensor, Recessed and Surface PIR Sensor
Technical Specifications
- Voltage: 220 - 240 V AC, 50Hz
- Switching Capacity: 2000W Incandescent, 600W Fluorescent, 200W LED
- Minimum LED Load: 1W
- Time Delay: 10 seconds to 40 minutes
- Lux Adjustment: Dusk to Dawn (2-2000 lux)
- Detection Angle: 360°
- Detection Range: Up to 22 metres at 3m height
- Weatherproof Rating: IP44 Surface Mounted, IP20 Recess Mounted
- Colour: White
- Dimensions (H x L x W): 55mm x 105mm x 105mm
- Weight: 0.2 kg
Key Features
- Flush/Recess and Surface/Ceiling Mount - All in one
- Weatherproof Rating: IP44 Surface Mounted, IP20 Recess Mounted
- 360° Detection Angle
- Detection Range: Up to 22 metres at 3m height
- Switching Capacity: 2000W (Incandescent), 600W (Fluorescent), 200W (LED)
- Triple PIR for maximum detection
- Occupancy Feature with High and Low Sensing Zones
- Setting Controls under front cover for easy access
- Enlarged Cable Entry
- Stainless Steel Fixings Supplied
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct mounting and wiring according to Australian electrical standards.
Applications
- Residential: Indoor lighting control
- Commercial: Office spaces, retail stores, warehouses
- Industrial: Factories, workshops
- General: Energy-saving occupancy detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on occupancy.
- Supports LED lighting with low minimum load, promoting energy-efficient lighting solutions.
Warranty Information
3 year warranty against manufacturing defects.
Available Now
The 360º PIR Ceiling Sensor with Dual Mount and 22m Range is available now for immediate purchase. Ideal for energy-efficient lighting control in residential, commercial, and industrial applications.
