360° PIR Motion Sensor | Surface Mount | Adjustable Sensitivity | IP44 by Matelec

BRAND: Matelec
SKU: FMS-12055
$33.40 List price: $43.60
+
360° PIR motion sensor with surface mount design and adjustable sensitivity—ideal for automated lighting in homes and commercial spaces. Built for energy efficiency, with IP44 rating for reliable outdoor use.

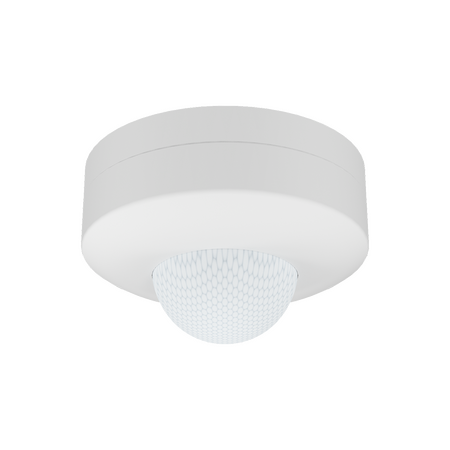

Product Name/Title: 360° White PIR Surface Mount Motion Sensor

Brand: Matelec

SKU: FMS-12055

Alternatively Known As: PIR Motion Sensor, Motion Detector, Infrared Motion Sensor

Technical Specifications
  • Detection Range: Up to 12 meters
  • Operating Voltage: 220-240V
  • Material: ABS plastic housing
  • Frequency: 50Hz
  • IP Rating: IP44
  • Dimensions (H x L x W): 100mm x 50mm x 100mm
  • Weight: 0.3 kg
Key Features
  • 360° detection coverage for comprehensive monitoring.
  • Surface mount design facilitates easy installation.
  • Adjustable sensitivity and time delay settings.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Residential: Homes, garages, outdoor areas
  • Commercial: Offices, retail stores, parking lots
  • General: Areas requiring automated lighting control
Standards & Compliance
  • Complies with AS/NZS 60529 for ingress protection standards.
Environmental Benefits
  • Promotes energy efficiency by ensuring lights are only on when needed.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The 360° White PIR Surface Mount Motion Sensor is available now for immediate purchase. Ideal for enhancing security in various settings.

Specification Sheet (FMS12055-2689-165.pdf, 395 Kb) [Download]
