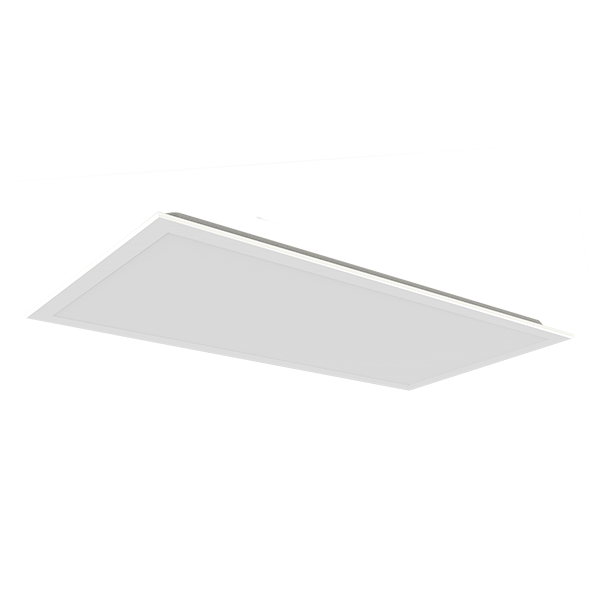

36W LED Backlit Panel 300 x 1200 | Daylight | IP40 Rated | 100 lm/W Efficiency | by atom
The 36W LED Backlit Panel 300 x 1200 is designed for efficient indoor lighting, offering a bright daylight color temperature and an impressive efficiency of up to 100 lm/W. Ideal for commercial spaces, this recessed panel light features a durable powder-coated steel body and a polycarbonate diffuser, ensuring long-lasting performance and low glare. Perfect for offices, retail, and educational facilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Panel Light 300x1200, LED Backlit Ceiling Panel, Recessed LED Panel, Daylight LED Panel Light
Technical Specifications
- Total System Efficiency: up to 100 lm/W
- IP Rating: IP40
- IC Rating: IC-4
- Colour Temperature: 5700K (Daylight)
- CRI: >80
- UGR: <19
- Beam Angle: 90°
- Input Voltage: 230Vac (216-253V range)
- Power Factor: 0.9
- Maximum Wattage: 36W
- LED Voltage: 36V
- LED Current: 900 mA
- LED Lifetime: >60,000 hours (TM-21 report)
- Driver Type: Fixed output, non-dimmable
- Installation: Recessed
- Material: Powder-coated steel body, polycarbonate diffuser
- Operating Temperature Range: -10 to 40 °C
- Flex & Plug Length: 900 mm
- Wiring: Re-wireable flex & plug (2 pin)
- Dimensions (H x L x W): 40mm x 1200mm x 300mm
- Weight: 4.5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated for indoor use
- IC-4 rated for safe insulation coverage
- Fixed installation type with recessed mounting
- Powder-coated steel body with polycarbonate diffuser
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- 3-step MacAdam ellipse for consistent colour quality
- Long LED lifetime greater than 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial office lighting
- Retail and hospitality lighting
- Educational and healthcare facilities
- Indoor general lighting in residential and commercial buildings
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires for Recessed Mounting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainable lighting
Warranty Information
Standard warranty includes 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom 36W LED Backlit Panel 300x1200mm Daylight is available for immediate purchase, ideal for commercial and indoor recessed lighting applications.
