3/8 Coupling XHP with Stop | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps

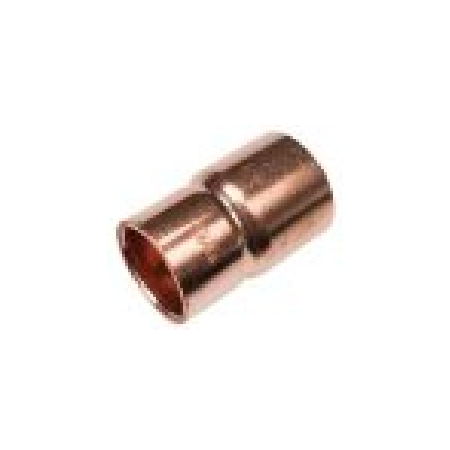

The 3/8 Coupling XHP with Stop is designed for high pressure refrigeration systems, featuring a robust 130 bar pressure rating and made from ANS C19400 Copper Iron Alloy for superior corrosion resistance. Ideal for industrial and commercial HVAC applications, this coupling ensures reliable brazed joints and compliance with safety standards, making it a perfect choice for qualified refrigeration technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/8 Coupling XHP with Stop | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129270-38
Alternatively Known As: 3/8 inch High Pressure Coupling with Stop, SANHA 130 bar Copper Coupler, Refrigeration Coupling Fitting
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2P)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B280, AS5149.2
- Certification: TüV certified
- Joining Method: Traditional brazed joining
- Magnetic identification for easy verification
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy (CuFe2P) for high corrosion resistance
- Certified to TüV standards
- Suitable for R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method
- Magnetic identification for easy verification
Professional Installation Requirements
- Installation must be performed by a qualified refrigeration technician experienced with high pressure brazed copper fittings to ensure system integrity and safety.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems
- Systems requiring high corrosion resistance and reliable brazed joints
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions; typically 12 months against manufacturing defects.
Available Now
The Aspen Pumps 3/8 Coupling XHP with Stop is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
