Trade Discount 17%

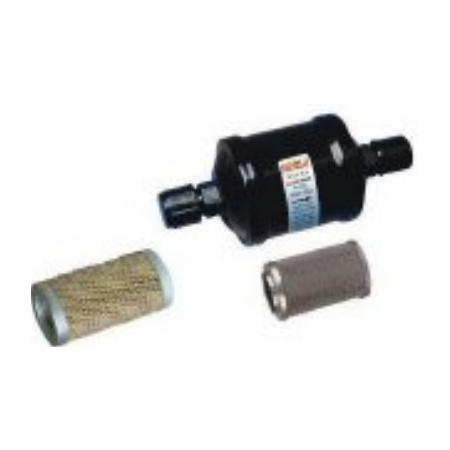

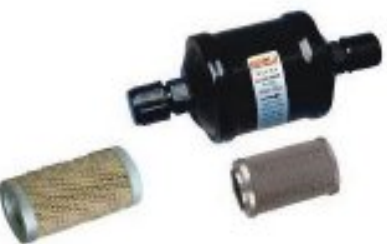

3/8 Oil Filter Drier | Temprite Technology | 4500 kPa SWP | by Aspen Pumps
The 3/8 Oil Filter Drier with Temprite Technology ensures superior oil separation and maintains efficiency even at low flow rates, making it ideal for HVAC and refrigeration systems. Designed for professional installation, this filter drier supports longer equipment life and reduces energy consumption, ensuring optimal performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/8 Oil Filter Drier | Temprite Technology | 4500 kPa SWP | by Aspen Pumps
Brand: Aspen Pumps
SKU: 308-303-F
Alternatively Known As: 3/8 Oil Filter Drier, S-4005 Equivalent Oil Filter, Coalescent Oil Separator
Technical Specifications
- Length: 251 mm
- Diameter: 76 mm
- Safe Working Pressure (SWP): 4500 kPa
- Temprite Coalescent Oil Separator Technology
- Maintains efficiency at low flow rates (down to 20% of max flow)
- Dimensions (H x L x W): 251mm x 251mm x 76mm
- Weight: 1.5 kg
Key Features
- Temprite Technology for superior coalescent oil separation
- Maintains efficiency down to 20% of maximum flow
- Safe working pressure (SWP) of 4500 kPa
- Industry standard energy-efficient performance
Professional Installation Requirements
- Installation should be performed by qualified HVAC or refrigeration technicians familiar with pressure vessel safety standards.
Applications
- HVAC systems requiring oil filtration and drying
- Refrigeration and air conditioning pressure vessels
- Industrial oil separation and filtration systems
Standards & Compliance
- Complies with AS/NZS 1200 – Pressure Equipment
Environmental Benefits
- Improves system efficiency by effectively separating oil, reducing energy consumption
- Supports longer equipment life and reduces waste through enhanced filtration
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific terms.
Available Now
The Aspen Pumps 3/8 Oil Filter / Drier (S-4005 Equivalent) is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and upgrades.
