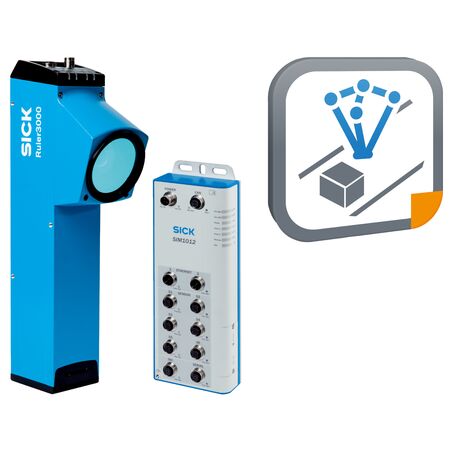

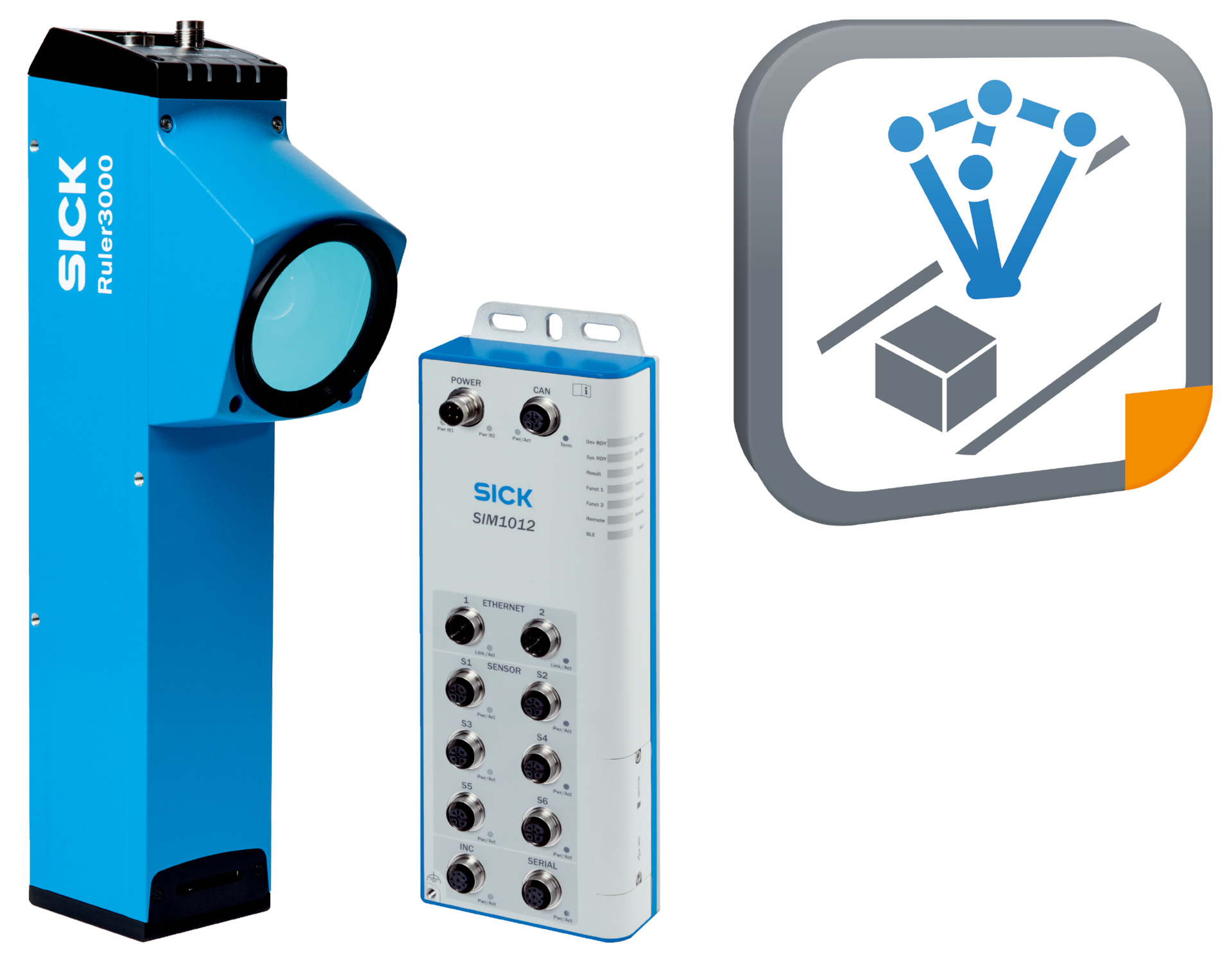

3D Belt Pick Ruler3000 Bundle | 3D Triangulation Technology | Global Shutter | Integrated Red Laser | by SICK
The 3D Belt Pick Ruler3000 Bundle features advanced 3D triangulation technology and a global shutter for precise measurements. Ideal for industrial automation and quality control, this sensor offers a working range of 430 mm to 1,445 mm and supports scatter and reflectance measurement. With integrated red laser illumination and robust IP65/IP67 housing, it ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D triangulation
- Shutter technology: Global-Shutter
- Working range: 430 mm to 1,445 mm
- Field of view: 1,200 mm x 345 mm
- Exposure mode: Linear HDR
- Illumination: Integrated red laser, 660 nm ± 15 nm
- Laser class: 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Data synchronization: Free running, encoder triggered, external triggering
- 3D measurement, scatter and reflectance measurement supported
- Ambient light suppression enabled
- Width at minimum operating distance: 540 mm
- Width at maximum operating distance: 1,680 mm
- Maximum height range: 1,015 mm
- Connection type: M12 17-pin male connector for Voltage – I/O, M12 8-pin socket X-coded for Gigabit Ethernet
- Supply voltage: 24 V DC ± 10%
- Power consumption: ≤ 12 W
- Enclosure rating: IP65, IP67
- Housing material: Aluminum
- Weight: 2.3 kg
- Image sensor: CMOS sensor with ROCC technology, M30
- Scan/frame rate: 46,000 3D profiles/s (reduced ROI: 7,000 3D profiles/s)
- Data points per profile: 3,200
- Repeatability: 8 µm
- Typical resolution: Z resolution 33 µm to 265 µm, X resolution 246 µm to 710 µm
- Interfaces: Ethernet (GigE Vision Standard), UDP/IP, data rate ≤ 1 Gbit/s
- Operating system: Windows 10
- API: GenAPI, GenTL, SICK GenIStream
- Inputs/outputs: 4 x HIGH = 10 V to 28.8 V, configurable
- Encoder interface: RS-422 5 V, 2 x HTL single-ended
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 138mm x 336mm x 77mm
- Weight: 2.3 kg
Key Features
- 3D triangulation technology with global shutter
- Pre-calibrated for immediate use
- Integrated red laser illumination (660 nm ± 15 nm), Laser class 2
- Working range from 430 mm to 1,445 mm
- Example field of view: 1,200 mm x 345 mm
- Linear HDR exposure mode
- Data synchronization options: free running, encoder triggered, external triggering
- Scatter and reflectance measurement capabilities
- Ambient light suppression
- Integrated Scheimpflug adapter
- High scan/frame rate: 46,000 3D profiles/s
- Repeatability of 8 µm
- IP65 and IP67 rated enclosure for robust protection
- Aluminum housing with float glass, anti-reflective coated window
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Detecting standard objects
- Level measuring
- Dimension, contour and volume measurement
- Quality monitoring and controlling
- 3D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED laser illumination reduces energy consumption compared to traditional lighting.
- Robust IP65/IP67 housing extends product lifespan, reducing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK 3D Belt Pick Ruler3000 Bundle is available for immediate purchase. Ideal for industrial automation, quality control, and 3D measurement applications.
