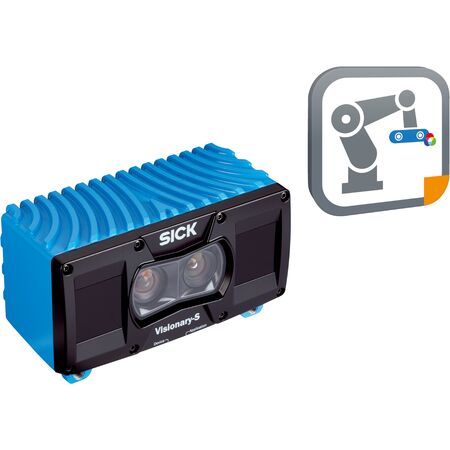

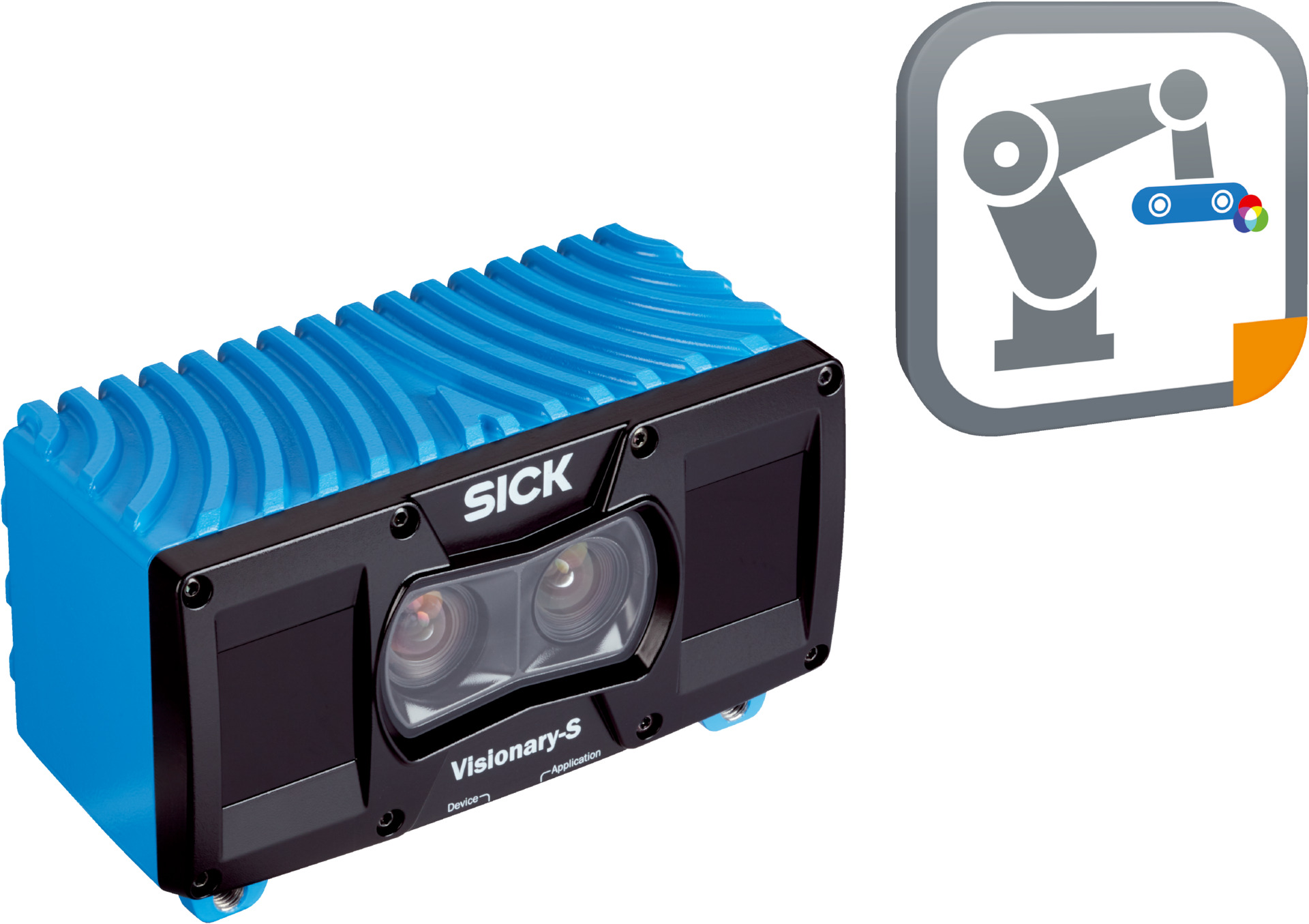

3D Color Imaging Sensor PALLOC-VS | Deep Learning Localization | IP67 Rated | by SICK
The PALLOC-VS 3D Color Imaging Sensor utilizes deep learning for precise part localization in industrial automation. With a fast localization time of just 1 second and high accuracy of < +/- 5 mm, this sensor is perfect for robotic mounting and stationary applications. Its robust IP67 housing ensures durability in harsh environments, making it an ideal choice for manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: Visionary-S AP
- Example field of view: 1.6 m x 1.3 m
- Laser class: 1 (IEC 60825-1:2014)
- Localization principle: Deep Learning neural networks
- Working distance: 1.2 m to 3.5 m
- Detection angle: 60° x 50°
- Angular resolution: 0.094° x 0.098°
- Illumination color: Infrared, laser, invisible, 808 nm
- Supply voltage: 24 V DC ± 15%
- Power consumption: 19 W typical
- Enclosure rating: IP67
- Protection class: III
- Connection types: M12 17-pin power/I/O, M12 8-pin Gigabit Ethernet
- Part localization time: 1 s (fast mode), 3 s (long distance mode)
- Localization accuracy: < +/- 5 mm and < +/- 1°
- Pixel count: 640 px x 512 px
- Switch-on delay: < 20 s
- Processor: 1.2 GHz, 4 × ARM Cortex A72
- User interface: Web server
- Data storage: microSD card and external FTP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration resistance: EN 60068-2-27, EN 60068-2-6, EN 60068-2-64
- EMC: EN 61000-6-2:2005-08, EN 61000-6-3:2007-01
- Dimensions (H x L x W): 78mm x 162mm x 93mm
- Weight: 1.7 kg
Key Features
- Deep learning-based standalone sensor for localizing parts using 3D color imaging
- 3D snapshot stereoscopy technology
- Integrated infrared laser illumination (808 nm), laser class 1
- Fast part localization time: 1 second in fast mode
- High localization accuracy: < +/- 5 mm and < +/- 1°
- Robust IP67 rated housing for harsh environments
- Supports image and data logging via microSD and FTP
- Web server user interface with optical status LEDs
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connections in compliance with safety standards.
Applications
- Industrial automation for part localization
- Robotic mounting for precise object detection
- Stationary sensor mounting in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with 19 W typical power consumption
- Durable IP67 housing reduces need for frequent replacements
- Supports precise localization reducing waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PALLOC-VS Visionary-S AP sensor is available for immediate purchase, ideal for industrial automation and robotic part localization applications.
