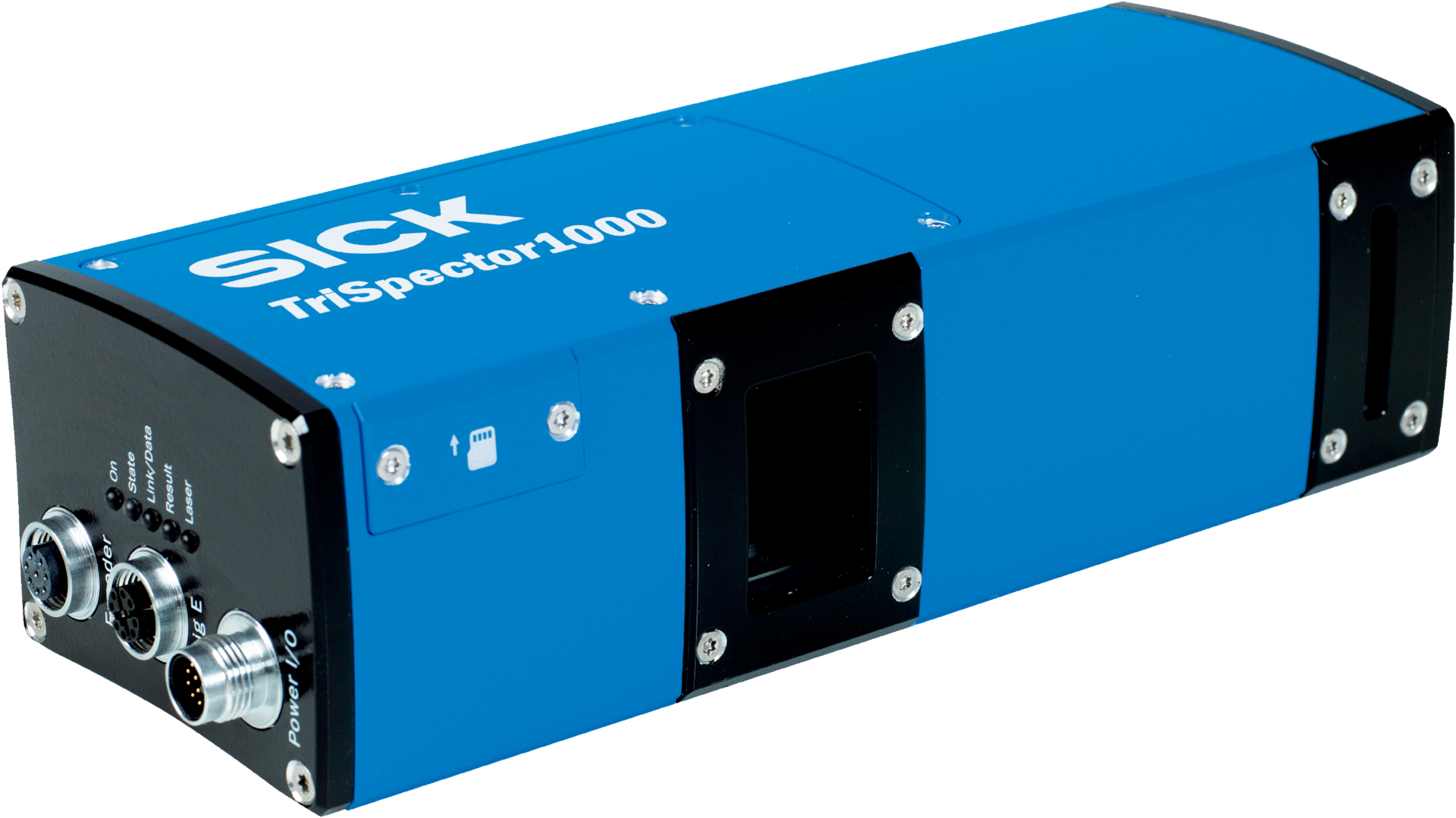

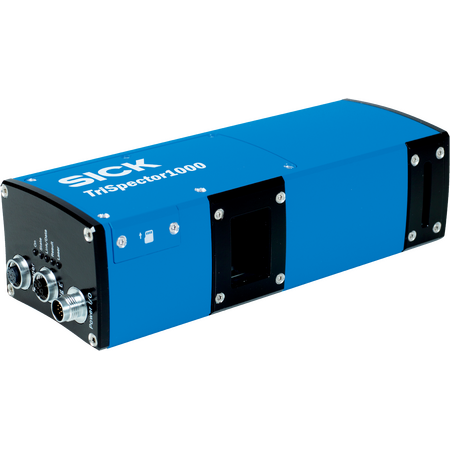

3D Height Map Sensor | Laser Triangulation Technology | IP67 Rated | 5,000 Profiles/Second | by SICK
The 3D Height Map Sensor utilizes advanced laser triangulation technology to deliver precise measurements for industrial automation and quality control. With a high scan rate of 5,000 profiles per second and an IP67 rated anodized aluminum housing, this sensor is built for robust performance in demanding environments. Ideal for applications like 3D object detection and volume measurement, it ensures accuracy and reliability in every scan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3D Height Map Sensor, Vision 3D Scanner, Laser Triangulation Sensor, Industrial 3D Scanner
Technical Specifications
- Working range: 141 mm to 541 mm
- Example field of view: 270 mm x 100 mm
- Laser class: 2 (complies with EN 60825-1 and FDA laser product requirements)
- Width at minimum operating distance: 90 mm
- Width at maximum operating distance: 330 mm
- Maximum height range: 400 mm
- Imaging angle: 65°
- Scan/frame rate: 5,000 3D profiles per second
- Maximum number of profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 40 µm to 280 µm
- 3D profile resolution: 0.215 mm per pixel
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA without output load
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Connector types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Data transmission rate: 1,000 Mbit/s Ethernet, max encoder frequency 300 kHz
- Digital inputs: 3 non-isolated
- Digital outputs: 4 non-isolated
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC compliance: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 217mm x 62mm
- Weight: 1.3 kg
Key Features
- 3D laser triangulation technology
- Configurable and pre-calibrated
- Integrated red visible laser illumination (660 nm)
- High scan/frame rate of 5,000 3D profiles per second
- IP67 rated anodized aluminum housing for robust industrial use
- Multiple interfaces including Ethernet, RS-232, RS-422, and TTL encoder
- Supports Shape Area detection, Blob Finder, Volume Find plane, and Fixed plane toolkits
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and electrical wiring is recommended to ensure proper setup and compliance with safety standards.
Applications
- 3D object detection and level measurement
- Dimension, contour, and volume measurement
- Quality monitoring and control
- 3D position determination in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces material waste and damage
- Energy-efficient laser technology minimizes power consumption
- Durable IP67 housing extends product lifespan reducing replacement waste
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK V3T12S-MR32A8 Vision 3D Height Map sensor is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
