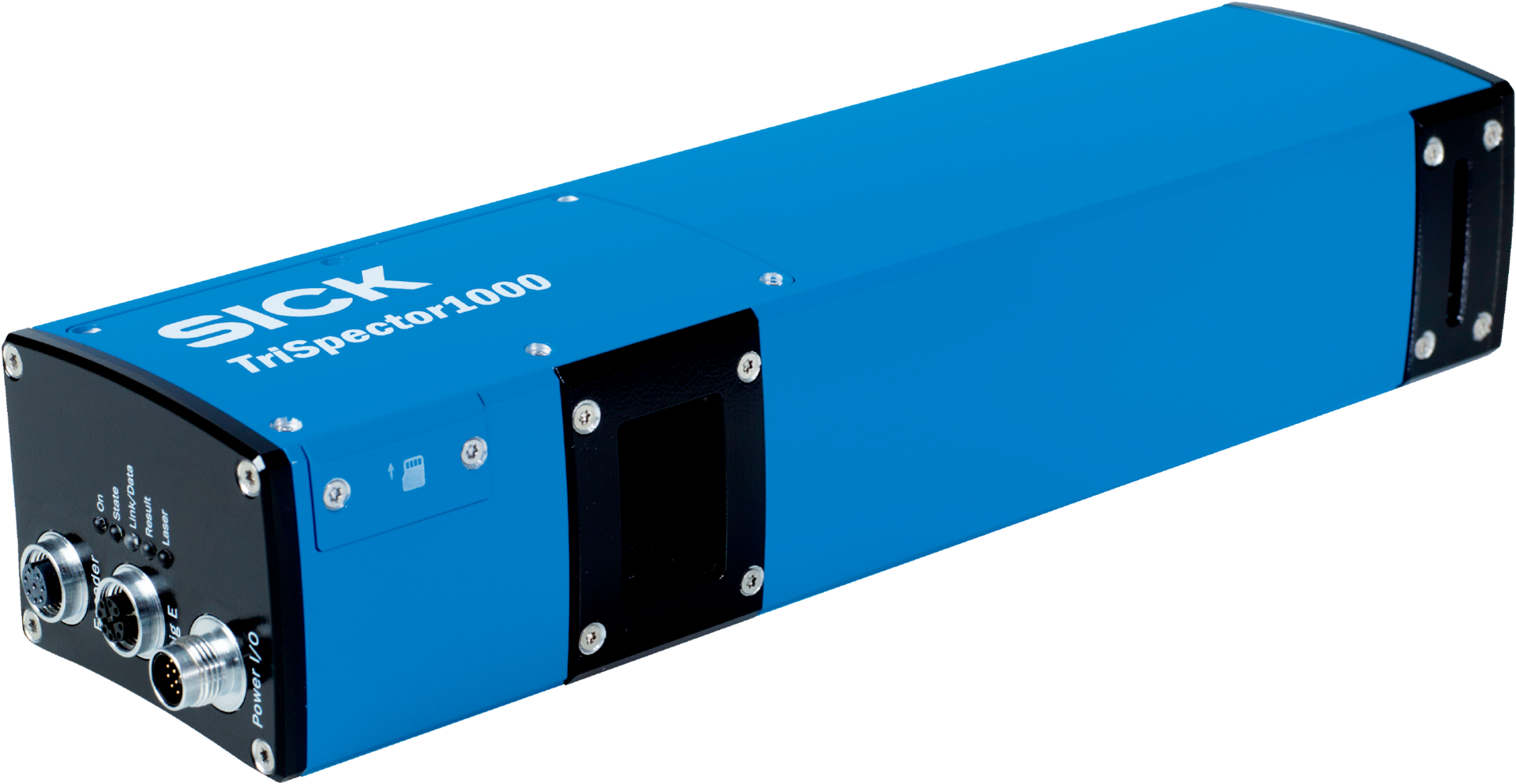

3D Height Map Sensor | 3D Laser Triangulation Technology | IP67 Rated | High Scan Rate of 5000 Profiles/sec | by SICK
The 3D Height Map Sensor utilizes advanced 3D laser triangulation technology for precise object detection and level measurement. With a high scan rate of 5,000 profiles per second and an IP67 rated anodized aluminum housing, it's built for durability in industrial automation and quality control applications. Ideal for professionals seeking reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3D Height Map Sensor, Vision 3D Scanner, Laser Triangulation Sensor, Industrial 3D Scanner
Technical Specifications
- Technology: 3D laser triangulation
- Working range: 291 mm to 1,091 mm
- Field of view example: 540 mm x 200 mm
- Illumination: Integrated red laser, 660 nm ± 7 nm
- Laser class: Class 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014)
- Width at minimum operating distance: 180 mm
- Width at maximum operating distance: 660 mm
- Maximum height range: 800 mm
- Imaging angle: 67°
- Scan/frame rate: 5,000 3D profiles per second
- Maximum profiles per image: 2,500
- Data points per profile: 1,536
- Height resolution: 80 µm to 670 µm
- 3D profile resolution: 0.43 mm/px
- Connection types: M12 12-pin male (voltage supply, I/O), M12 8-pin socket (Gigabit Ethernet), M12 8-pin female (encoder)
- Supply voltage: 24 V DC ± 20%
- Power consumption: ≤ 11 W
- Current consumption: < 400 mA (without output load)
- Enclosure rating: IP67
- Protection class: III
- Housing material: Anodized aluminum
- Window material: PMMA
- Data transmission rate: 1,000 Mbit/s Ethernet, max encoder frequency 300 kHz
- Digital inputs: 3 (non-isolated)
- Digital outputs: 4 (non-isolated)
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007
- Shock load: 15 g / 6 ms
- Vibration load: 5 g, 10 Hz to 150 Hz
- Dimensions (H x L x W): 84mm x 307mm x 62mm
- Weight: 1.7 kg
Key Features
- 3D laser triangulation technology
- Configurable and pre-calibrated
- Integrated red visible laser illumination (660 nm)
- High scan/frame rate of 5,000 3D profiles per second
- IP67 rated anodized aluminum housing
- Multiple interfaces including Ethernet, RS-232, RS-422, and TTL encoder
- Robust against shock (15 g / 6 ms) and vibration (5 g, 10 Hz to 150 Hz)
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- 3D object detection and level measurement
- Dimension, contour, and volume measurement
- Quality monitoring and control
- 3D position determination in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces material waste and damage
- Energy-efficient laser technology minimizes power consumption
- Durable IP67 housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

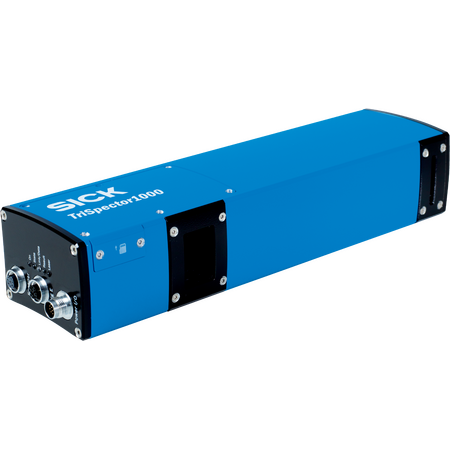

The SICK V3T13S-MR62A8 Vision 3D Height Map sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
