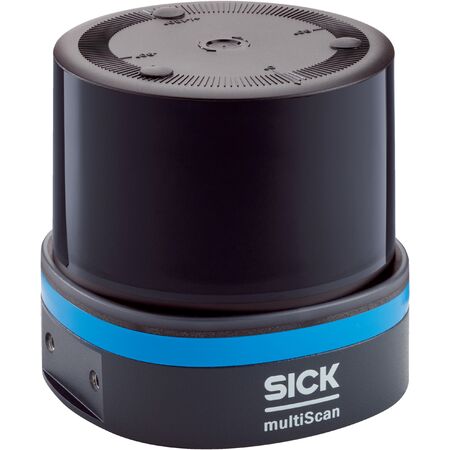

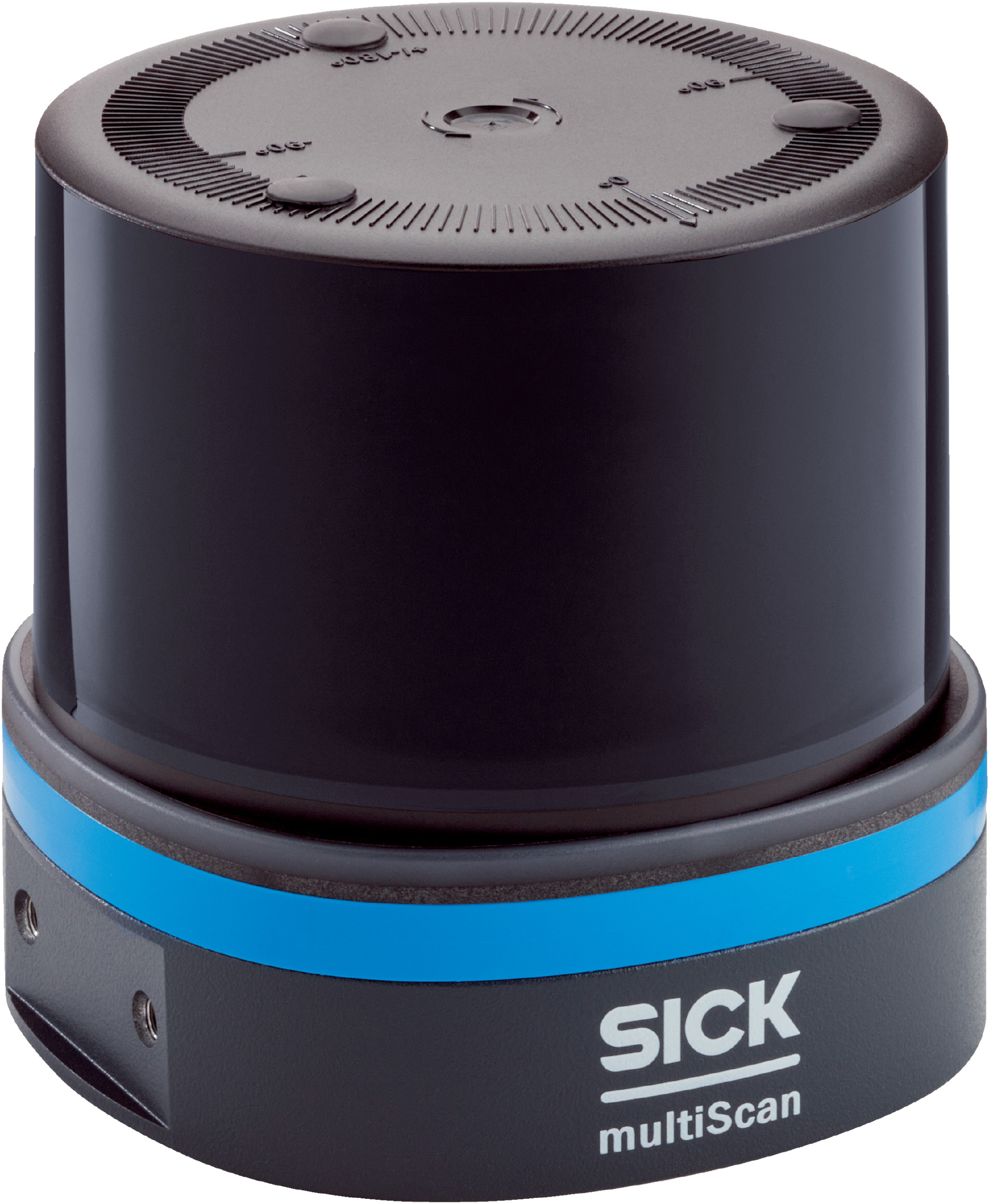

3D LiDAR Sensor multiScan136 | Infrared Measurement | 360° Horizontal & 65° Vertical Aperture | by SICK
The 3D LiDAR Sensor multiScan136 utilizes a statistical measurement procedure with an infrared light source for precise object detection. With a robust working range of 0.05 m to 60 m and a scanning frequency of 20 Hz, it's perfect for both indoor and outdoor applications in automotive, agricultural, and construction machinery. Designed for reliability, it features IP65, IP67, IP69, and IPX9K ratings, ensuring durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 360°, Vertical 65°
- Horizontal angular resolution: 0.125°, 2 high-resolution scan layers
- Vertical angular resolution: Approx. 2.5°
- Scanning frequency: 20 Hz
- Working range: 0.05 m to 60 m
- Spot size: 5.3 mrad (0.3°) and 7.5 mrad (0.3° + 0.125°)
- Amount of evaluated echoes: 3
- Connection type: 2 x M12 round connectors
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 seconds
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms field evaluation, typically 100 ms
- Systematic error: ± 50 mm
- Statistical error: ≤ 15 mm
- Integrated application: 3D Object Detection
- Number of field sets: 48
- Simultaneous evaluation cases: 20
- Ethernet: TCP/IP, UDP/IP, 100 Mbit/s
- Digital inputs/outputs: 8 (Multiport), depending on system plug
- Optical indicators: 4 LEDs
- Configuration software: SOPAS Air (browser based), SOPAS ET
- Ambient operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: ≤ 90% RH, non-condensing
- Ambient light immunity: 100 klx
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- Statistical measurement procedure with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 360° horizontal and 65° vertical aperture angle with high-resolution scan layers
- Working range from 0.05 m to 60 m
- Scanning frequency of 20 Hz with up to 648,000 measurement points per second
- Robust housing with IP65, IP67, IP69, and IPX9K ratings
- Integrated reliability package with multi-echo technology and IMU
- Ethernet interface with TCP/IP and UDP/IP support
- Wide ambient operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor and outdoor environments
- 3D object detection
- Automotive, agricultural, forestry, earthmoving, and construction machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared scanning reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports applications in automation that can improve operational efficiency and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MULS1AA-112211 multiScan136 sensor is available for immediate purchase, ideal for industrial automation, machinery, and 3D object detection applications.
