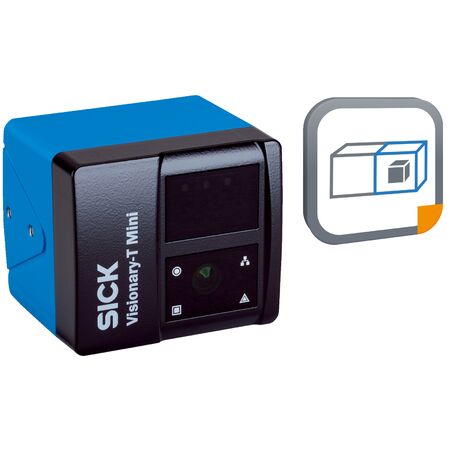

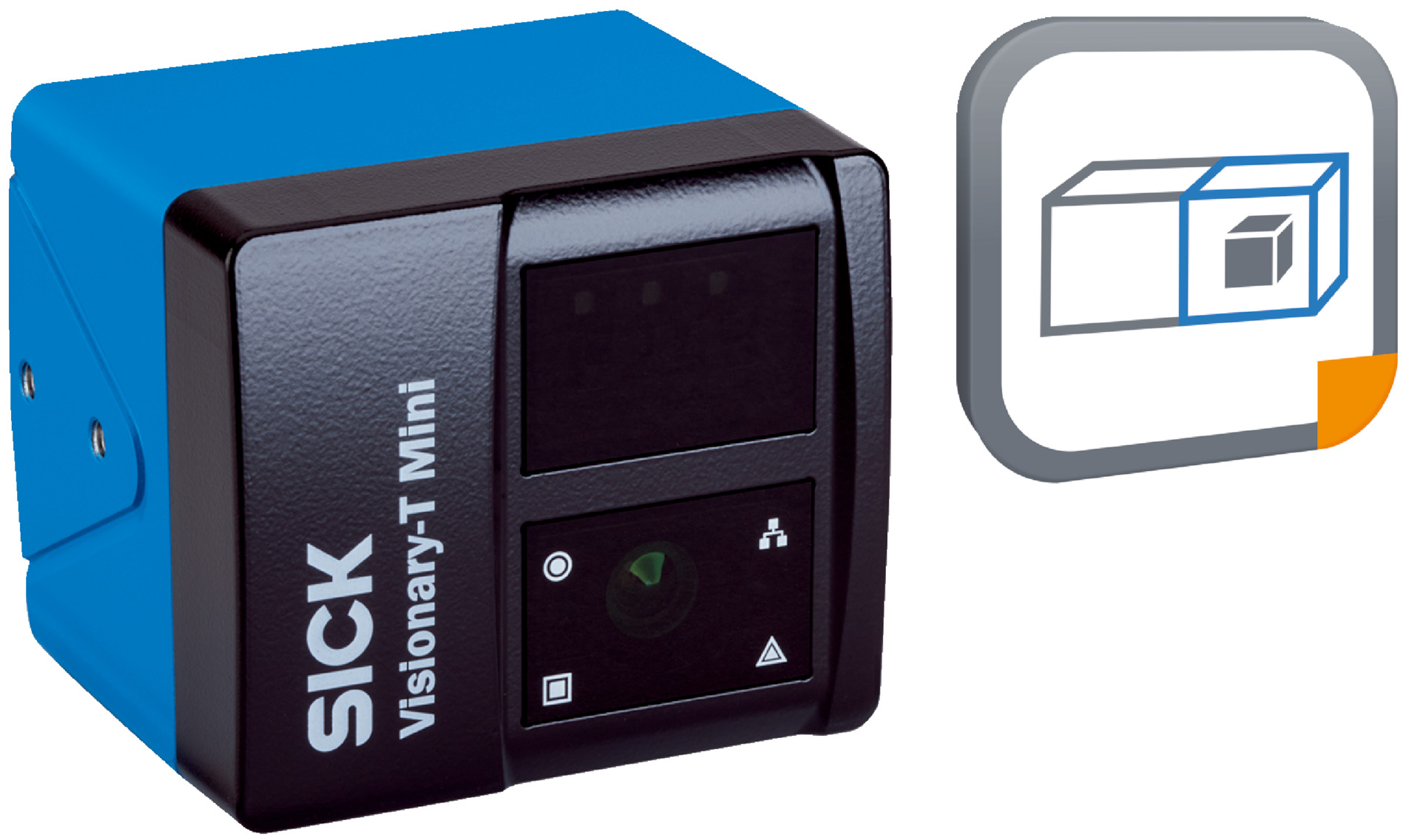

3D Object Detection Core | Time-of-Flight Sensor | IP65/IP67/IP69 Rated | Integrated Infrared Laser | by SICK
The 3D Object Detection Core is designed for advanced collision avoidance and industrial automation applications. Featuring time-of-flight technology with a working range of up to 9 meters and a field of view of 70° x 60°, this sensor ensures precise detection and navigation. With an IP65/IP67/IP69 rated enclosure and low power consumption, it’s perfect for mobile platforms and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Working range: up to 9 meters
- Field of view: 70° x 60°
- Angular resolution: 0.14° x 0.14°
- Illumination: Integrated infrared laser, 855 nm ± 5 nm
- Laser class: Class 1, P0 < 17 mW, t < 25 ns (IEC 60825-1:2014)
- Connection type: M12, 8-pin, A-coded and X-coded Gigabit Ethernet
- Supply voltage: 24 V DC
- Power consumption: Typical 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Housing color: Blue, black
- Window material: PMMA
- Sensor resolution: 512 px x 424 px
- Processor: 1.8 GHz, 4× ARM Cortex
- Scan/frame rate: up to 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: Approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Switch-on delay: Approx. 20 s
- Response time: ≥ 100 ms for 4 fields
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Optical indicators: 4 status LEDs
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Relative humidity: ≤ 95% non-condensing
- Electromagnetic compatibility: IEC 61000-6-4:2018 / IEC 61000-6-2:2016
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Pre-calibrated and programmable sensor
- Integrated infrared laser illumination (855 nm)
- Field of view: 70° x 60° with 0.14° angular resolution
- High sensor resolution of 512 px x 424 px
- IP65, IP67, and IP69 rated enclosure for robust protection
- Supports Ethernet TCP/IP, UDP/IP and REST API
- Low power consumption with energy saving mode
- Integrated 3D Object Detection SensorApp for flexible collision avoidance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and compliance with safety standards.
Applications
- Collision avoidance on mobile platforms
- 3D object detection for industrial automation
- Position determination and navigation guidance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable IP-rated housing extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK V3S145-1AAAABA OD Core is available for immediate purchase, ideal for industrial automation and mobile platform collision avoidance applications.
