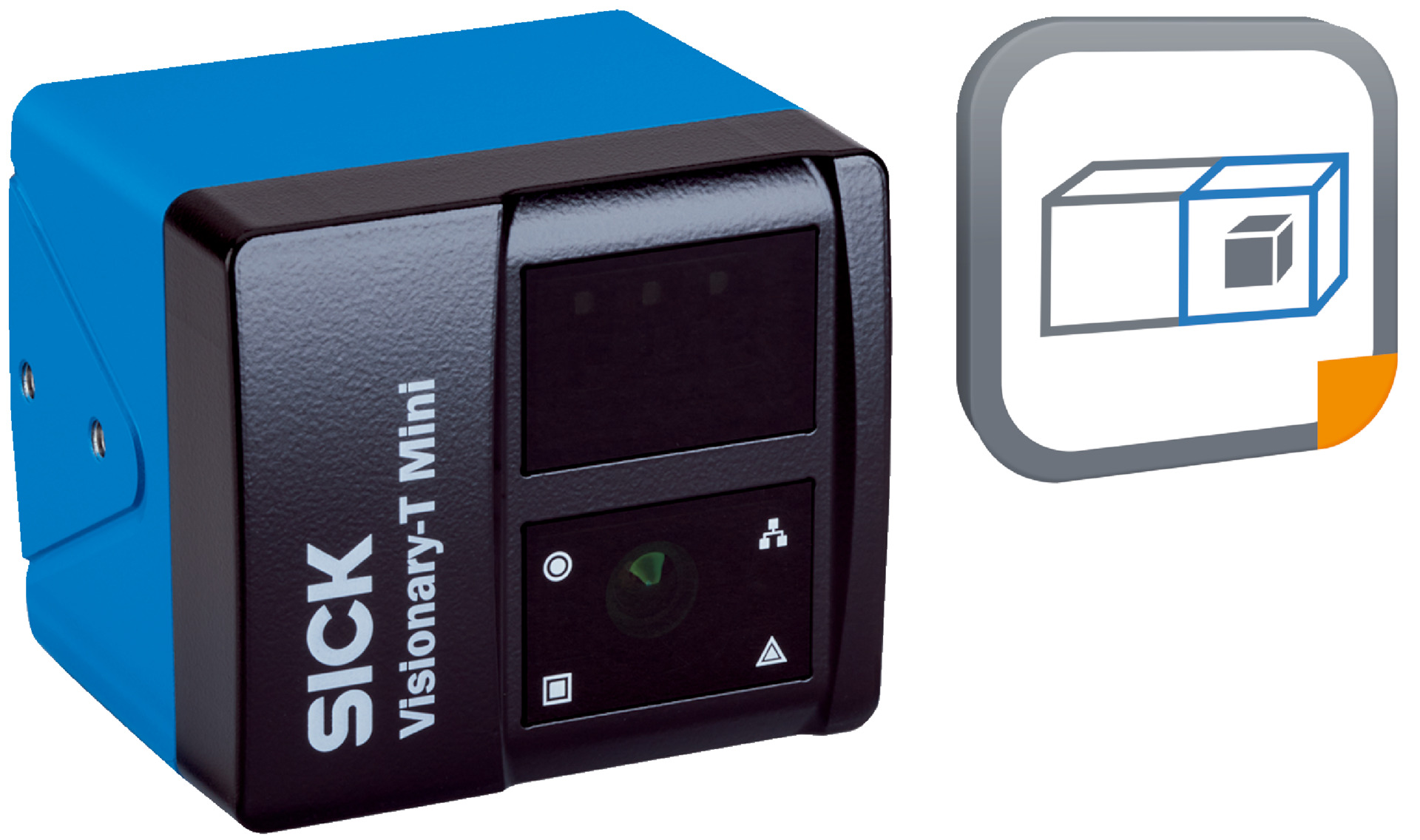

3D Object Detection Sensor | Time-of-Flight Technology | IP65/IP67/IP69 Rated | 512 px x 424 px Resolution | by SICK
The 3D Object Detection Sensor utilizes advanced time-of-flight technology, offering a resolution of 512 px x 424 px and a working range of up to 9 meters. Ideal for collision avoidance in mobile platforms, this sensor features an IP65/IP67/IP69 rated enclosure for robust protection and integrated infrared laser illumination for enhanced performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 3D snapshot time-of-flight
- Sensor resolution: 512 px x 424 px
- Processor: 1.8 GHz, 4× ARM Cortex
- Scan/frame rate: up to 30 fps
- Exposure time: ≤ 10 ms
- Repeatability: approx. 0.8 mm at 1 m, approx. 5 mm at 7 m
- Supply voltage: 24 V DC
- Power consumption: typically 12 W, < 8 W in energy saving mode
- Peak current: 2 A
- Enclosure rating: IP65, IP67, IP69
- Protection class: III
- Connection type: M12, 8-pin, A-coded and X-coded Gigabit Ethernet
- Illumination: Infrared laser, 855 nm ± 5 nm, Laser class 1
- Digital inputs/outputs: 6, max 100 mA per output, short-circuit protected
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +80 °C
- Vibration resistance: 5 g, 10 Hz to 500 Hz
- Shock resistance: 30 g, 11 ms
- Dimensions (H x L x W): 77mm x 80mm x 70mm
- Weight: 0.52 kg
Key Features
- 3D snapshot time-of-flight technology
- Programmable and configurable with pre-calibrated settings
- Integrated 3D Object Detection Prime SensorApp for collision avoidance including ground filter
- Working range up to 9 meters
- Field of view 70° x 60° with 0.14° angular resolution
- Integrated infrared laser illumination (855 nm)
- IP65, IP67, IP69 rated enclosure for robust protection
- Ethernet connectivity with TCP/IP, UDP/IP and REST API support
- 6 digital inputs/outputs with short-circuit protection
- Automatic camera coexistence mode
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with mobile platforms.
Applications
- Collision avoidance for mobile platforms
- 3D position determination
- Dimension, contour and volume measurement
- Guiding and navigation for automated systems
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Energy-saving mode reduces power consumption to less than 8 W
- Integrated processing reduces need for external computing resources
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

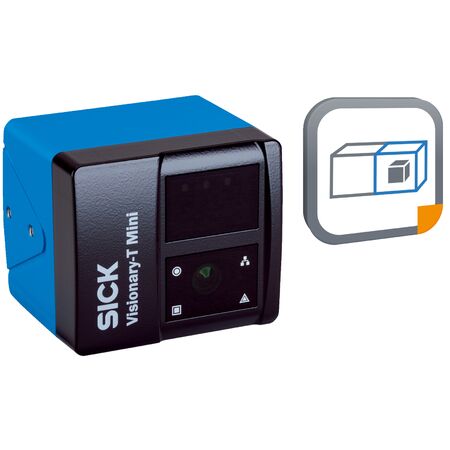

The SICK V3S145-1AAAABA OD Prime 3D Object Detection Sensor is available for immediate purchase, ideal for industrial automation and mobile platform collision avoidance applications.
