3D Positioning Sensor PLR3200-01 | ±0.5 mm Accuracy | IP65 Rated | by SICK

BRAND: SICK
SKU: 1097315
$47,057.30 List price: $59,146.10
+ −
30 Days Return Delivery Options

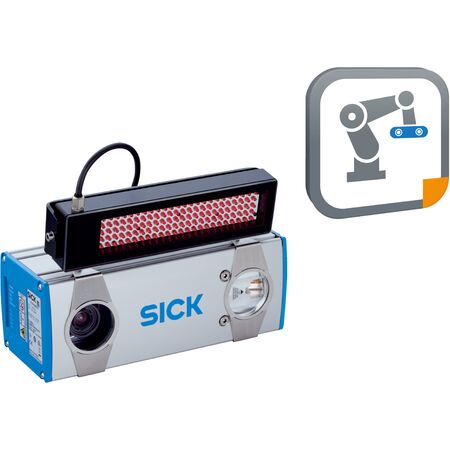

The 3D Positioning Sensor PLR3200-01 offers precise position determination with ±0.5 mm and ±0.1° accuracy, making it ideal for industrial automation and robotics applications. With a measurement range of 265 mm to 515 mm and advanced 2D/3D snapshot technology, this sensor ensures fast part localization in under 600 ms. Its robust aluminum housing and IP65 rating provide durability in demanding environments.
Technical Specifications
  • Measurement range: 265 mm to 515 mm (recommended 365 mm)
  • Light source: Laser 635 nm, LED 630 nm, Aiming laser 680 nm
  • Laser class: 2 (IEC 60825-1:2014)
  • LED class: Risk group 0 (Exempt, IEC62471:2006)
  • Technology: 2D snapshot, 3D snapshot, image analysis
  • Supply voltage: 24 V DC ± 20%
  • Power consumption: 10 W ± 20%
  • Current consumption: Typical 0.7 A, Max 1.2 A at 24 V DC
  • Housing material: Aluminum (anodised)
  • Window material: PMMA
  • Enclosure rating: IP65
  • Part localization time: < 600 ms
  • Localization accuracy: ± 0.5 mm, ± 0.1°
  • Output data: X, Y, Z (mm), roll, pitch, yaw (degrees)
  • Data transmission rate: 100 Mbit/s
  • Protocols supported: TCP/IP XML and CSV (robot), TCP/IP (operator), PROFINET, EtherNet/IP, FTP
  • Electrical connection: M12 male connector, 8-pin, x-coded and M12, 4-pin, A-coded
  • Operating temperature: 0 °C to +45 °C
  • Storage temperature: -20 °C to +70 °C
  • Relative humidity: 0% to 90%, non-condensing
  • Shock load: Half sine 15 g, 11 ms
  • Vibration resistance: 5 g (58 Hz to 150 Hz)
  • Dimensions (H x L x W): 84mm x 225mm x 90mm
  • Weight: 2.5 kg
Key Features
  • Position determination with ±0.5 mm and ±0.1° accuracy
  • Measurement range from 265 mm to 515 mm, recommended 365 mm
  • 2D and 3D snapshot technology with image analysis
  • Light sources include laser (635 nm), LED (630 nm), and aiming laser (680 nm)
  • Factory calibrated for immediate use
  • Robust aluminum anodised housing with IP65 rating
  • Fast part localization time under 600 ms
  • Ethernet interface with 100 Mbit/s data transmission and multiple protocols (TCP/IP XML, CSV, PROFINET, EtherNet/IP, FTP)
  • Web server user interface for easy configuration
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
  • Industrial automation for precise position determination
  • Robotics for part localization and orientation
  • Quality control and inspection systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient operation with low power consumption of 10 W
  • Durable aluminum housing extends product life reducing waste
  • Factory calibration reduces setup time and resource use
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK PLR3200-01 Position Determination Sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
