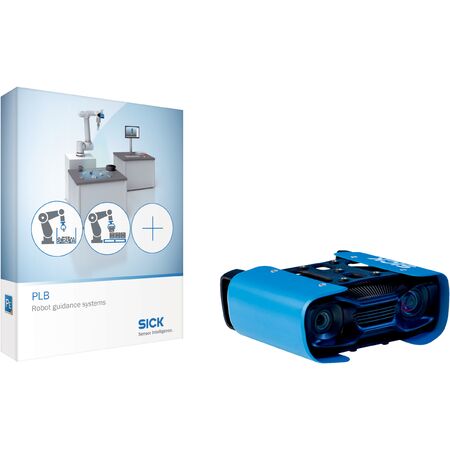

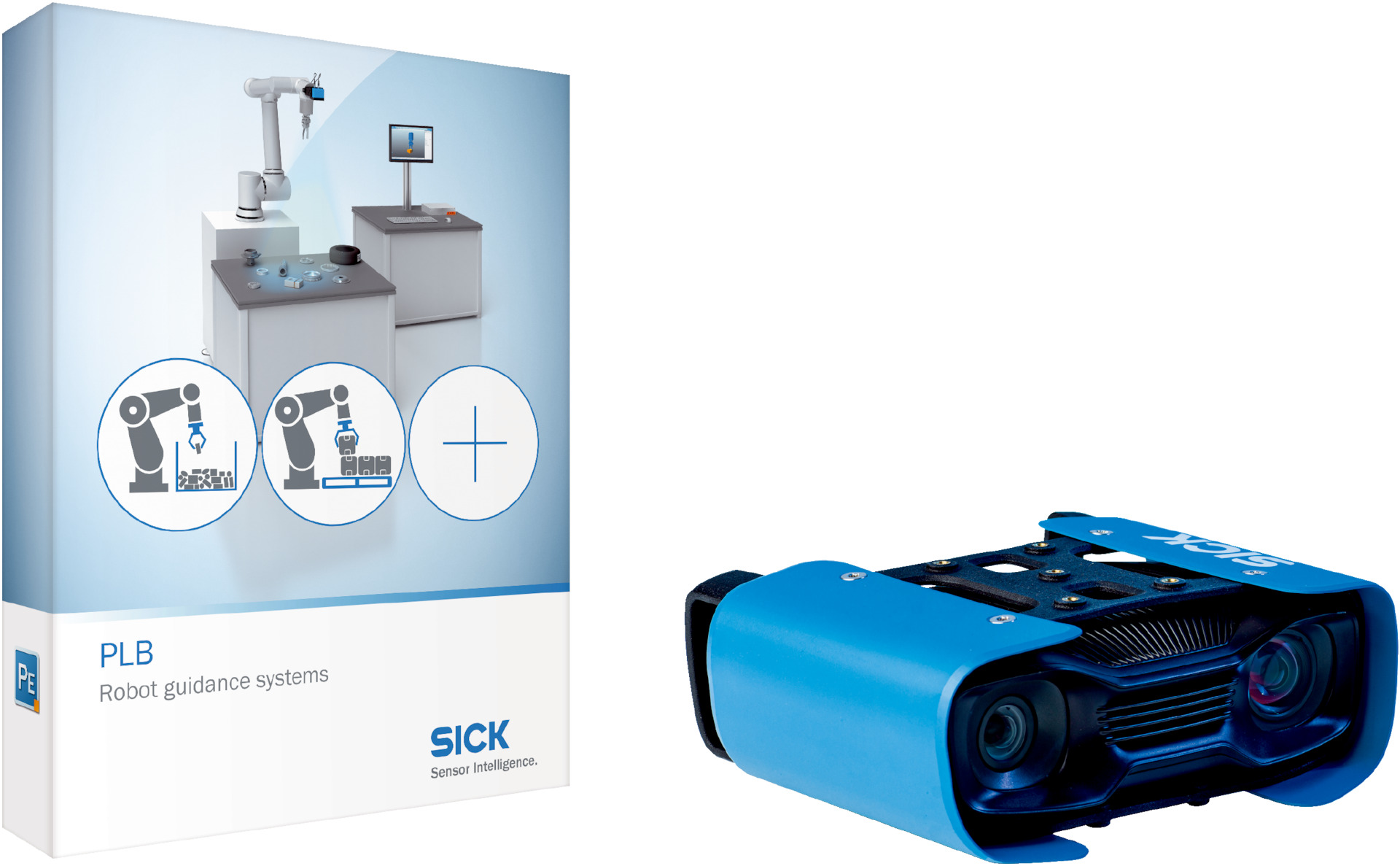

3D Snapshot Camera | Image Analysis Technology | IP65 Enclosure | by SICK
The 3D Snapshot Camera PLB-5190601 features advanced image analysis technology, making it ideal for robot guidance and position determination applications. With a medium field of view and an IP65-rated enclosure, this camera ensures durability and reliability in industrial settings. Its factory calibration minimizes waste and enhances longevity, making it a smart choice for automation solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 56mm x 169mm x 124mm
- Weight: 0.945 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view with example volume of 790 mm x 650 mm x 500 mm
- Image resolution from 0.2 mm to 0.5 mm depending on distance
- LED light source available in white, red, or blue
- Risk group 2 LED class
- Plug connector M12, 5-pin for connection
- Supply voltage 24 V DC with ± 20% tolerance
- Current consumption of 5 A
- Enclosure rating IP65 for protection
- Part localization time typically between 3 s and 10 s
- Supports simple and complex part shapes
- Ethernet interface with 10 Gbit/s data rate for camera and 10/100 Mbit/s for robot
- TCP/IP protocol and RJ45 electrical connection
- Operational ambient temperature from 0 °C to +40 °C, non-condensing
- Shock load resistance of 15 g / 11 ms
- Vibration load resistance of 10-150 Hz / 5 g
- Factory calibrated
- Includes Zivid 2+ M130 camera PLB Application Software
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper setup and integration with robotic systems.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Factory calibration reduces need for frequent recalibration, minimizing waste
- Durable IP65 rated enclosure extends product lifespan reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLB-5190601 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
