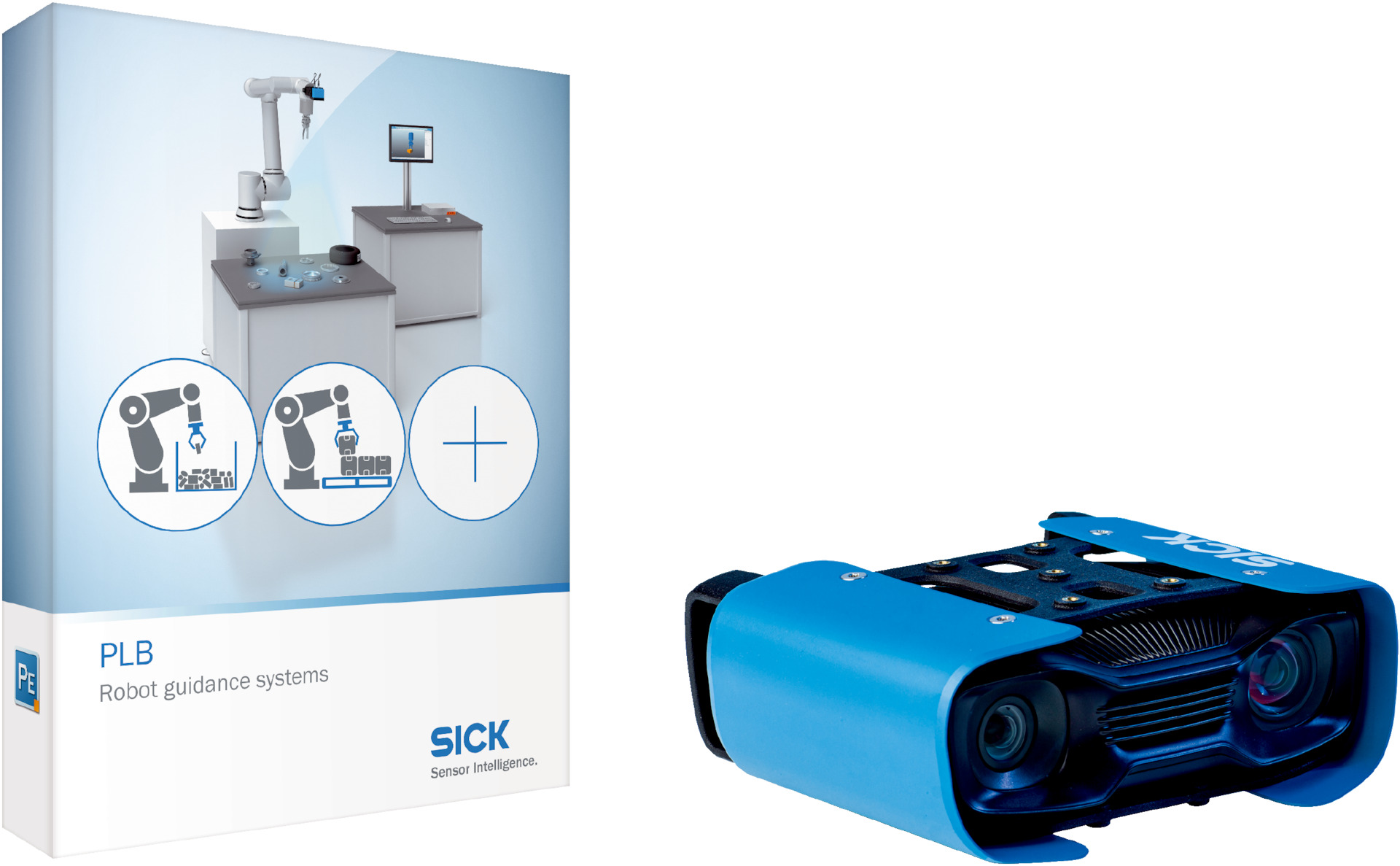

3D Snapshot Camera | Medium Field of View | LED Light Source Options | IP65 Rated | by SICK
The 3D Snapshot Camera is designed for precise robot guidance and position determination tasks, featuring advanced image analysis technology. With a medium field of view and customizable LED light sources in white, red, or blue, it ensures accurate localization of parts in various industrial applications. Built to withstand harsh environments with an IP65 rating, this camera is perfect for enhancing automation efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-536
- Field of view: Medium (790 mm x 650 mm x 500 mm)
- Image resolution: 0.2 mm to 0.5 mm depending on distance
- Light source: LED white, red or blue
- LED class: Risk group 2
- Localization principle: Geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Plug connector, M12, 5-pin
- Supply voltage: 24 V DC, ± 20%
- Current consumption: 5 A
- Enclosure rating: IP65
- Part localization time: 3 s to 10 s typical
- Part size: Approximately > 50 mm x 50 mm x 50 mm
- Data transmission rate: 10 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 15 g / 11 ms
- Vibration load: 10-150 Hz / 5 g
- Dimensions (H x L x W): 56mm x 169mm x 124mm
- Weight: 0.945 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view (790 mm x 650 mm x 500 mm)
- Image resolution from 0.2 mm to 0.5 mm depending on distance
- LED light source available in white, red, or blue
- Risk group 2 LED class
- Geometrical shape and edge localization principle
- IP65 rated enclosure for protection
- Fast part localization time between 3 to 10 seconds
- Supports simple and complex part shapes
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial camera systems and network configuration is recommended.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light sources reduce power consumption
- Durable IP65 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

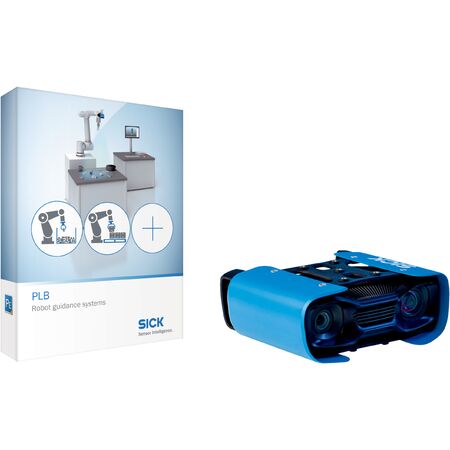

The SICK PLB-5390101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
