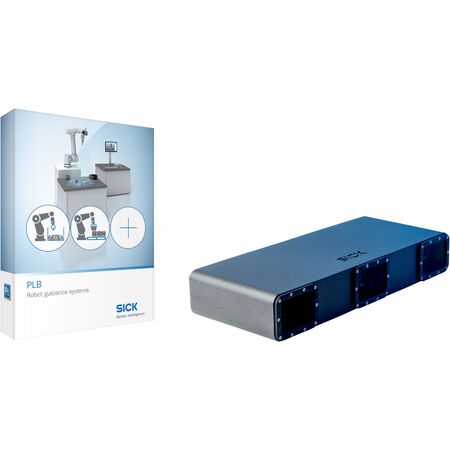

3D Snapshot Camera PLB-5140100 | Large Field of View | High Image Resolution | by SICK
The 3D Snapshot Camera PLB-5140100 is designed for industrial automation and robot guidance, featuring a large field of view and high image resolution ranging from 0.4 mm to 1 mm. With fast part localization times of 3 to 10 seconds and advanced CAD-model localization, this camera is perfect for complex part shapes and enhances manufacturing efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-520 5MP
- Field of view: Large
- Classification: Pro
- Camera type: 3D snapshot
- Example volume of view: 1300 mm x 1200 mm x 1000 mm
- Image resolution: 0.4 mm to 1 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- 3D CAD format output: IGES, STEP
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Male connector M12, 5-pin, L-coded
- Supply voltage: 24 V DC, ± 15%
- Current consumption: 5 A
- Enclosure rating: IP54
- Part localization time: 3 s to 10 s typical
- Part size: approximately > 30 mm x 30 mm x 30 mm
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 80mm x 488mm x 200mm
- Weight: 2.5 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- High image resolution from 0.4 mm to 1 mm depending on distance
- LED blue light source at 465 nm, Risk group 1
- Localization based on CAD-model, geometrical shape and edge localization
- Fast part localization time between 3 to 10 seconds
- Supports simple and complex part shapes
- Factory calibrated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination tasks
- Industrial automation requiring 3D imaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Supports automation that can improve manufacturing efficiency and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-520 5MP 3D Snapshot Camera is available for immediate purchase, ideal for industrial automation and robot guidance applications.
