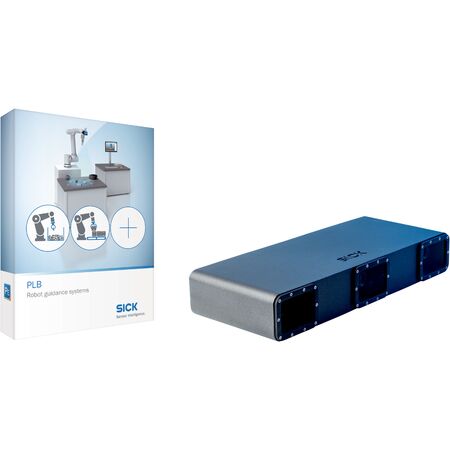

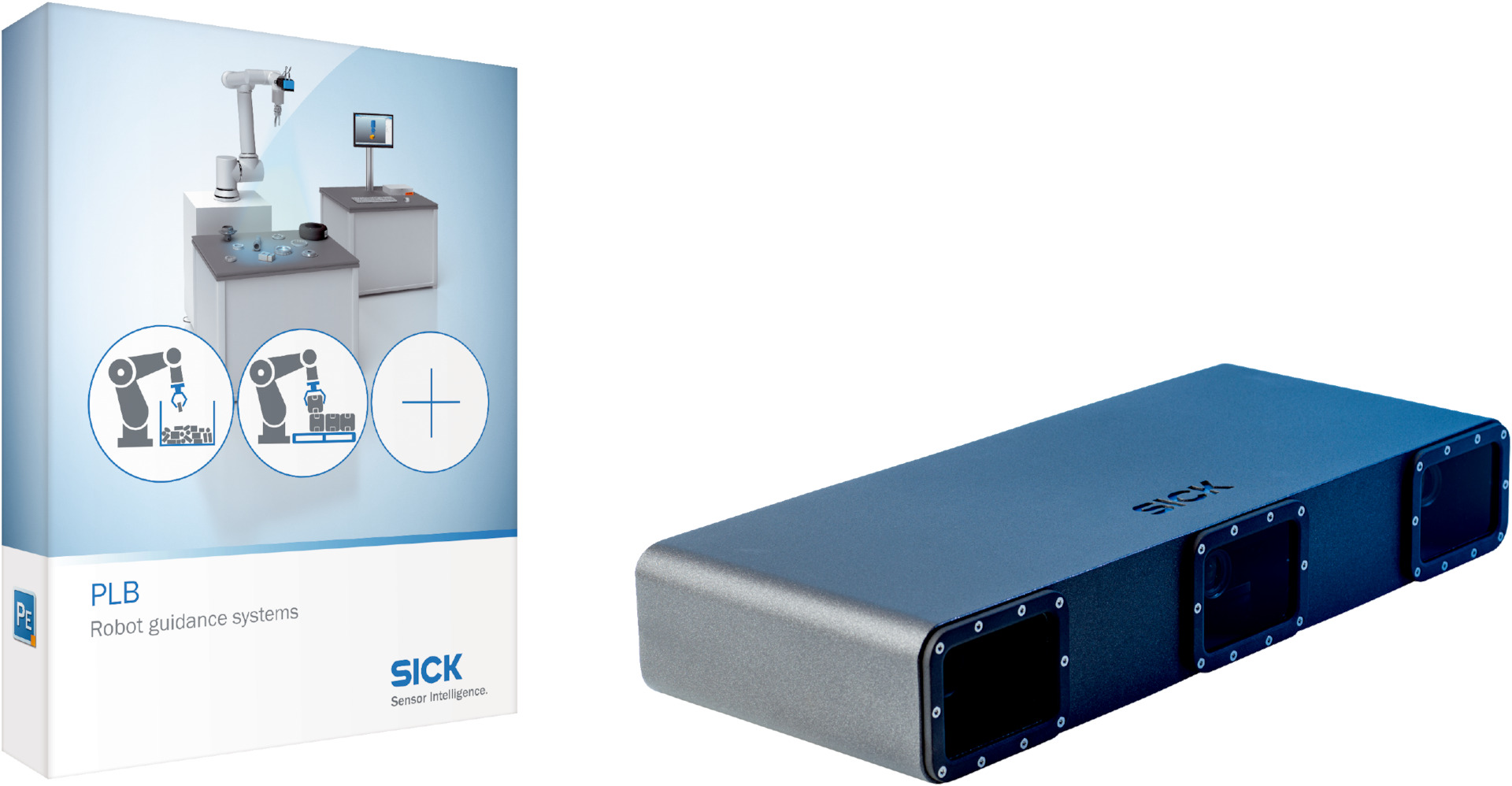

3D Snapshot Camera PLB-514060 | Large Field of View | 3D Technology | Blue LED Light Source | by SICK
The 3D Snapshot Camera PLB-514060 features a large field of view and advanced 3D snapshot technology, making it ideal for robot guidance and position determination. With a fast part localization time of 3 to 10 seconds and a blue LED light source, this camera is factory calibrated for immediate use, ensuring reliable performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-520 5MP
- Field of view: Large
- Image resolution: 0.4 mm to 1 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- Technology: 3D snapshot, image analysis
- Connection type: Male connector M12, 5-pin, L-coded
- Supply voltage: 24 V DC, ± 15%
- Current consumption: 5 A
- Enclosure rating: IP54
- Part localization time: 3 s to 10 s typical
- Part size: Approximately greater than 30 mm x 30 mm x 30 mm
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 80mm x 488mm x 200mm
- Weight: 2.5 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- Blue LED light source at 465 nm, Risk group 1
- Fast part localization time between 3 to 10 seconds
- Capable of detecting simple and complex part shapes
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP54 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-520 5MP 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
