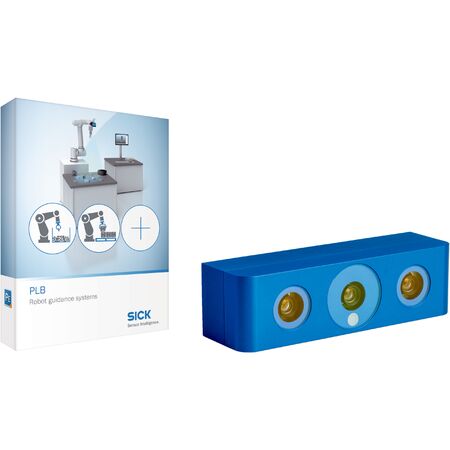

3D Snapshot Camera PLB-5150100 | Large Field of View | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-5150100 features a large field of view and advanced 3D snapshot technology, making it ideal for robot guidance and position determination tasks. With image resolution ranging from 0.38 mm to 1.36 mm and a durable IP65/IP67 enclosure, this camera is built for reliable performance in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-515
- Field of view: Large
- Classification: Pro
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view: 600 mm x 500 mm x 500 mm
- Image resolution: 0.38 mm to 1.36 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: approximately greater than 50 mm x 50 mm x 50 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- Image resolution from 0.38 mm to 1.36 mm depending on distance
- LED blue light source at 465 nm
- Risk group 0 LED class (Exempt, IEC62471: 2006)
- Localization based on CAD-model, geometrical shape and edge localization
- Factory calibrated
- IP65 / IP67 enclosure rating for robust protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PLB-5150100 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
