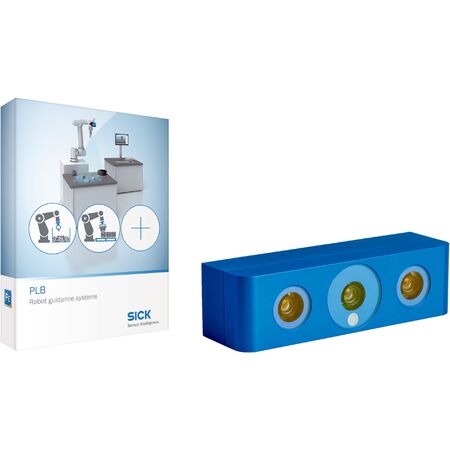

3D Snapshot Camera PLB-5150101 | Medium Field of View | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-5150101 is designed for precise robot guidance and position determination tasks. Featuring a medium field of view and advanced 3D snapshot technology, it delivers image resolution from 0.26 mm to 1.1 mm based on distance. With an IP65/IP67 enclosure rating, this camera is built for durability in industrial environments, making it an ideal choice for automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-515
- Field of view: Medium
- Classification: Pro
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view (L x W x H): 400 mm x 300 mm x 400 mm
- Image resolution: 0.26 mm to 1.1 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- 3D CAD format: IGES, STEP
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: approximately greater than 30 mm x 30 mm x 30 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Medium field of view
- 3D snapshot camera technology
- Image resolution from 0.26 mm to 1.1 mm depending on distance
- LED blue light source at 465 nm, Risk group 0 (Exempt, IEC62471: 2006)
- Localization based on CAD-model, geometrical shape and edge localization
- Factory calibrated
- Enclosure rating IP65 / IP67 for robust protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial camera systems and electrical safety standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5150101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
