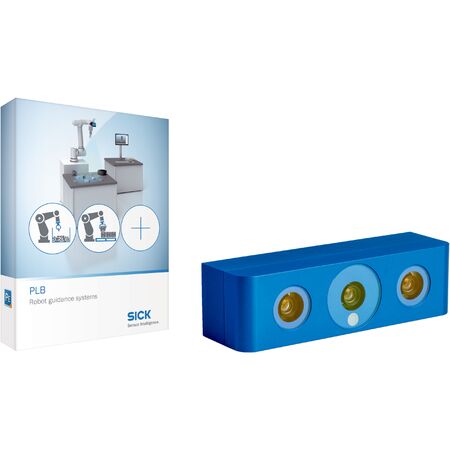

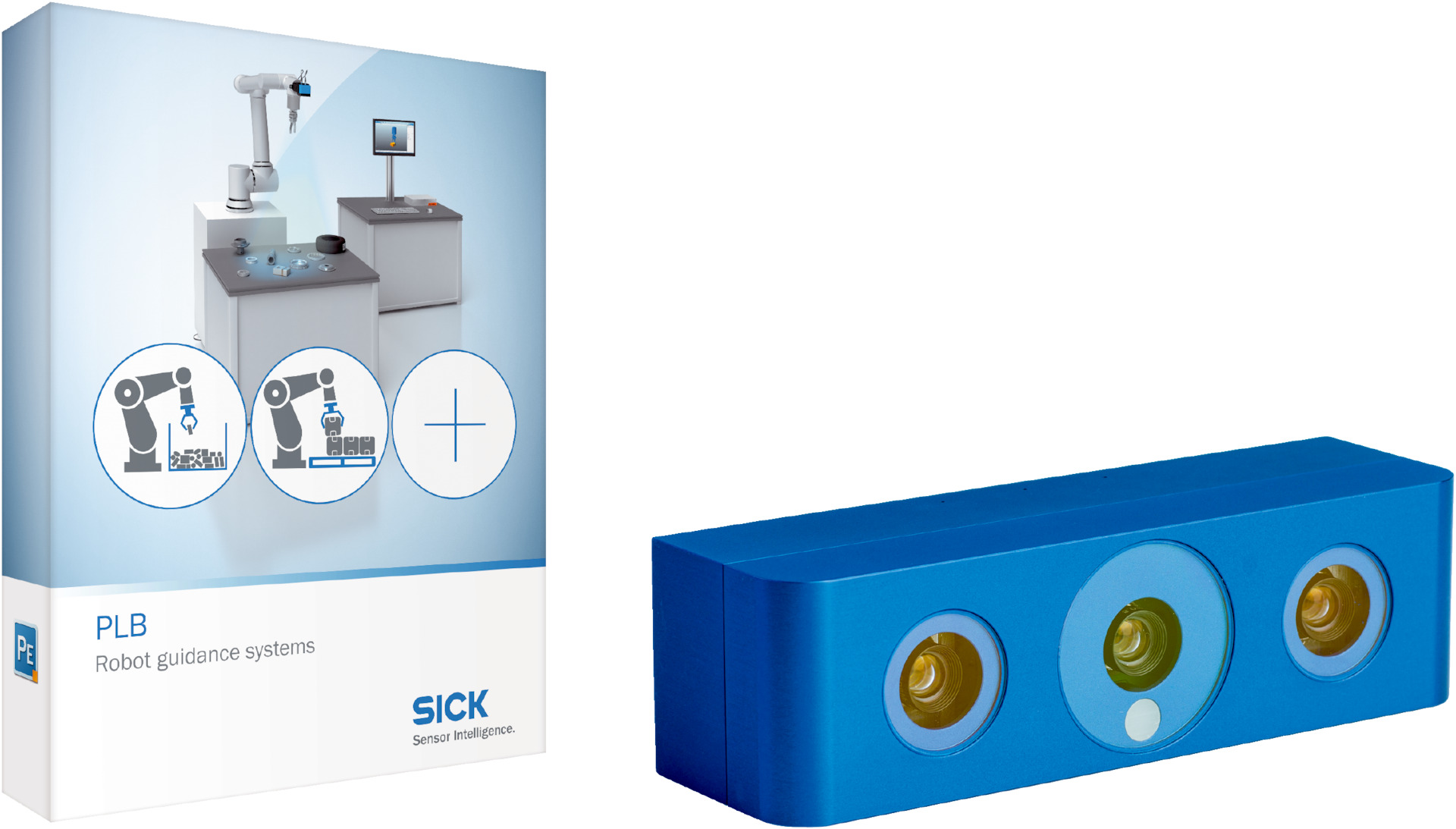

3D Snapshot Camera PLB-5150700 | Large Field of View | IP65/IP67 Rated | Blue LED Light Source | by SICK
The 3D Snapshot Camera PLB-5150700 features a large field of view and advanced 3D snapshot technology, making it ideal for robot guidance and position determination tasks in industrial automation. With a robust IP65/IP67 rated enclosure and energy-efficient blue LED light source, this camera ensures reliable performance and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-515
- Field of view: Large
- Classification: Secondary camera
- Camera type: 3D snapshot
- Example volume of view: 600 mm x 500 mm x 500 mm
- Image resolution: 0.38 mm to 1.36 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: Approx. > 50 mm x 50 mm x 50 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Large field of view
- 3D snapshot camera technology
- Blue LED light source at 465 nm
- Risk group 0 LED class (Exempt, IEC62471: 2006)
- Factory calibrated
- IP65 / IP67 rated enclosure for robust protection
- High-speed Ethernet data transmission (1 Gbit/s camera)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with safety standards.
Applications
- Robot guidance
- Position determination tasks
- Industrial automation requiring 3D imaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5150700 3D Snapshot Secondary Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
