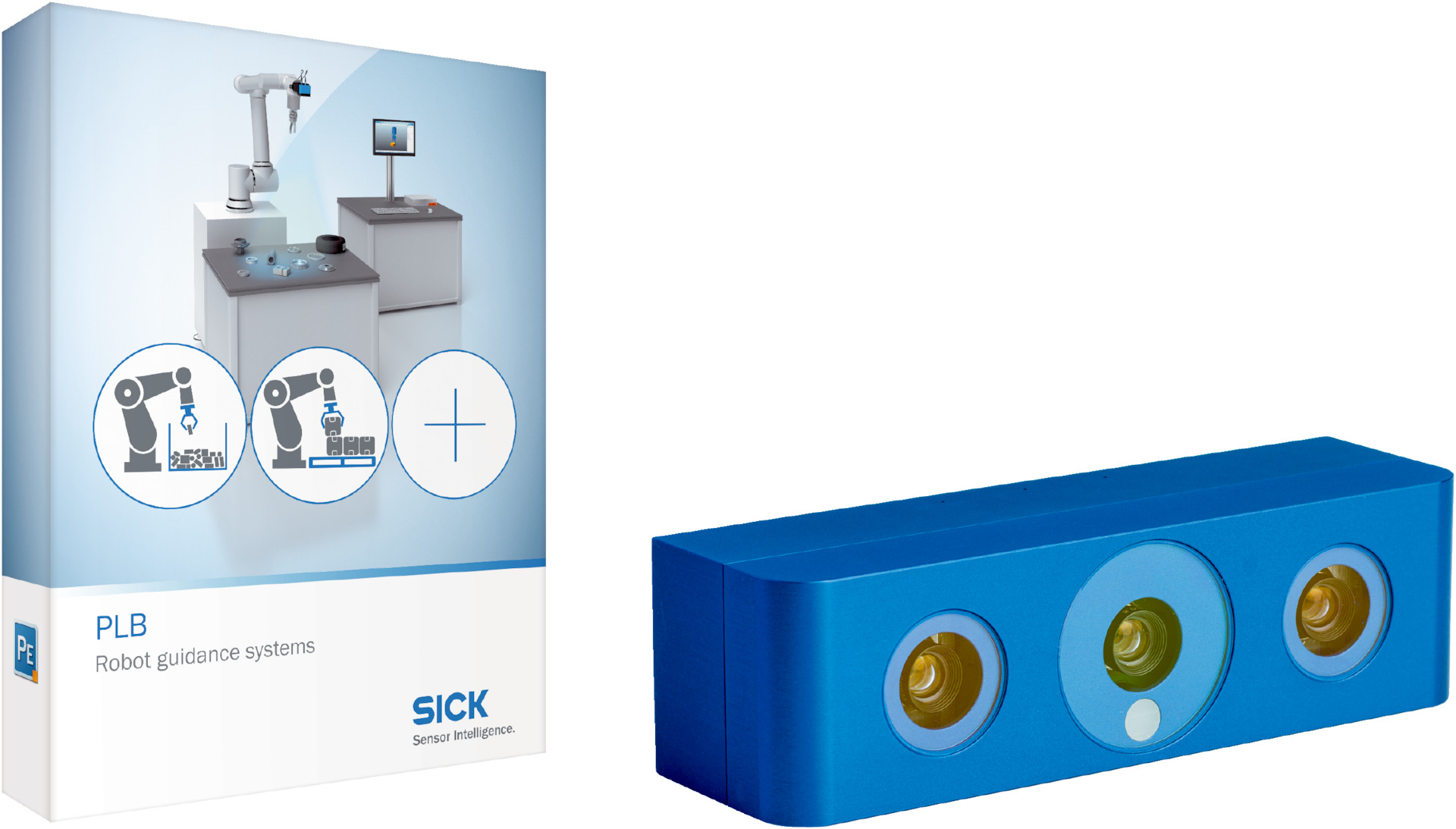

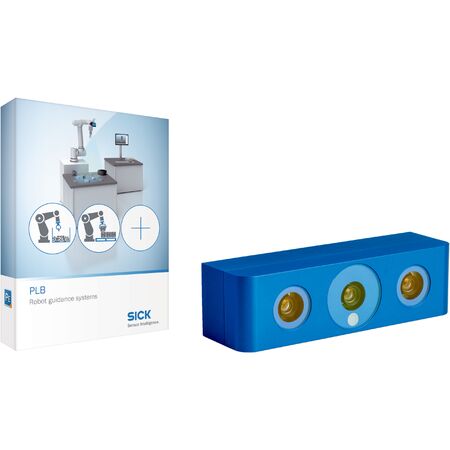

3D Snapshot Camera PLB-5150702 | Small Field of View | IP65/IP67 Rated | LED Blue Light Source | by SICK
The 3D Snapshot Camera PLB-5150702 is designed for precise robot guidance and position determination. With a small field of view and an LED blue light source at 465 nm, it ensures accurate imaging in various industrial applications. Its IP65/IP67 enclosure rating guarantees durability, making it ideal for demanding environments. This camera is factory calibrated and supports TCP/IP protocol for seamless integration with robotic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Field of view: Small
- Image resolution: 0.164 mm to 0.24 mm depending on distance
- Example volume of view: 300 mm x 200 mm x 500 mm
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: Approximately greater than 50 mm x 50 mm x 50 mm
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Small field of view
- 3D snapshot camera type
- LED blue light source at 465 nm
- Risk group 0 LED class (Exempt, IEC62471: 2006)
- Factory calibrated
- IP65 / IP67 enclosure rating
- Connection via M9 male connector, 7-pin and RJ45 Ethernet
- Supply voltage 12 V to 24 V or PoE Class 3
- Data transmission rate 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- TCP/IP protocol for camera
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with robotic systems and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLB-515 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
