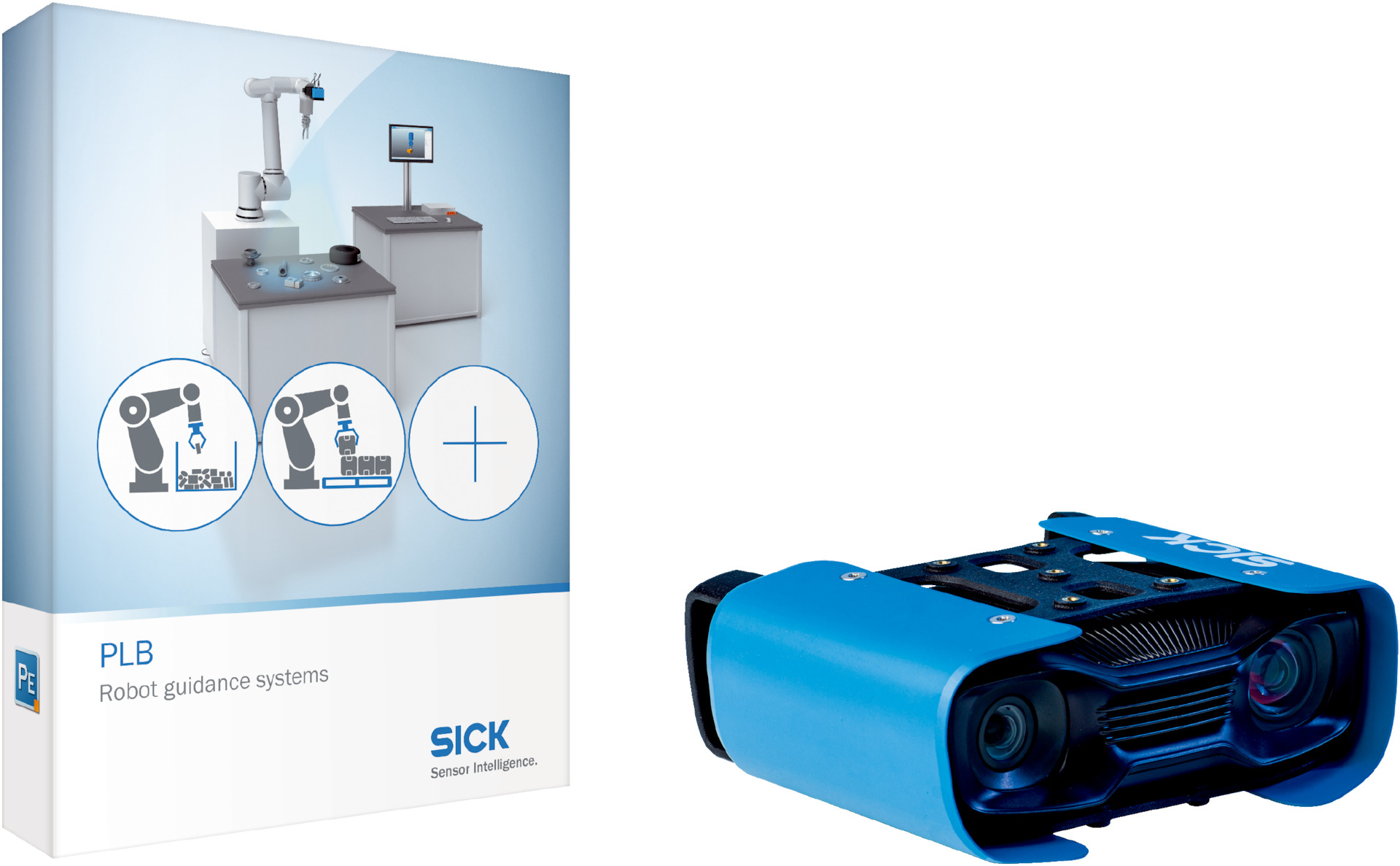

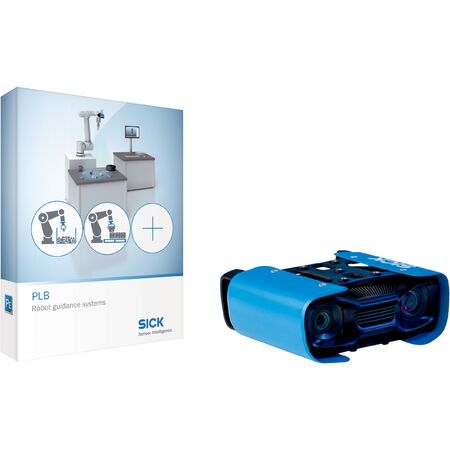

3D Snapshot Camera PLB-5190101 | Medium Field of View | LED Light Source | IP65 Rated | by SICK
The 3D Snapshot Camera PLB-5190101 is designed for precision in robot guidance and position determination tasks. Featuring a medium field of view and advanced 3D snapshot technology, this camera utilizes an LED light source available in white, red, or blue. With an IP65 rated enclosure, it ensures durability and protection against dust and water, making it ideal for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-536
- Field of view: Medium
- Image resolution: 0.2 mm to 0.5 mm depending on distance
- Light source: LED white, red or blue
- LED class: Risk group 2
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: Plug connector, M12, 5-pin
- Supply voltage: 24 V DC, ± 20%
- Current consumption: 5 A
- Enclosure rating: IP65
- Part localization time: 3 s to 10 s typical
- Part size: Approximately greater than 50 mm x 50 mm x 50 mm
- Ethernet data transmission rate: 10 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 15 g / 11 ms
- Vibration load: 10-150 Hz / 5 g
- Dimensions (H x L x W): 56mm x 169mm x 124mm
- Weight: 0.945 kg
Key Features
- Medium field of view
- 3D snapshot camera technology
- LED light source available in white, red, or blue
- Risk group 2 LED class
- Localization based on CAD-model, geometrical shape, and edge localization
- Factory calibrated for immediate use
- IP65 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial camera systems and electrical connections is recommended to ensure proper setup and safety.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light sources reduce power consumption
- Durable IP65 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5190101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
