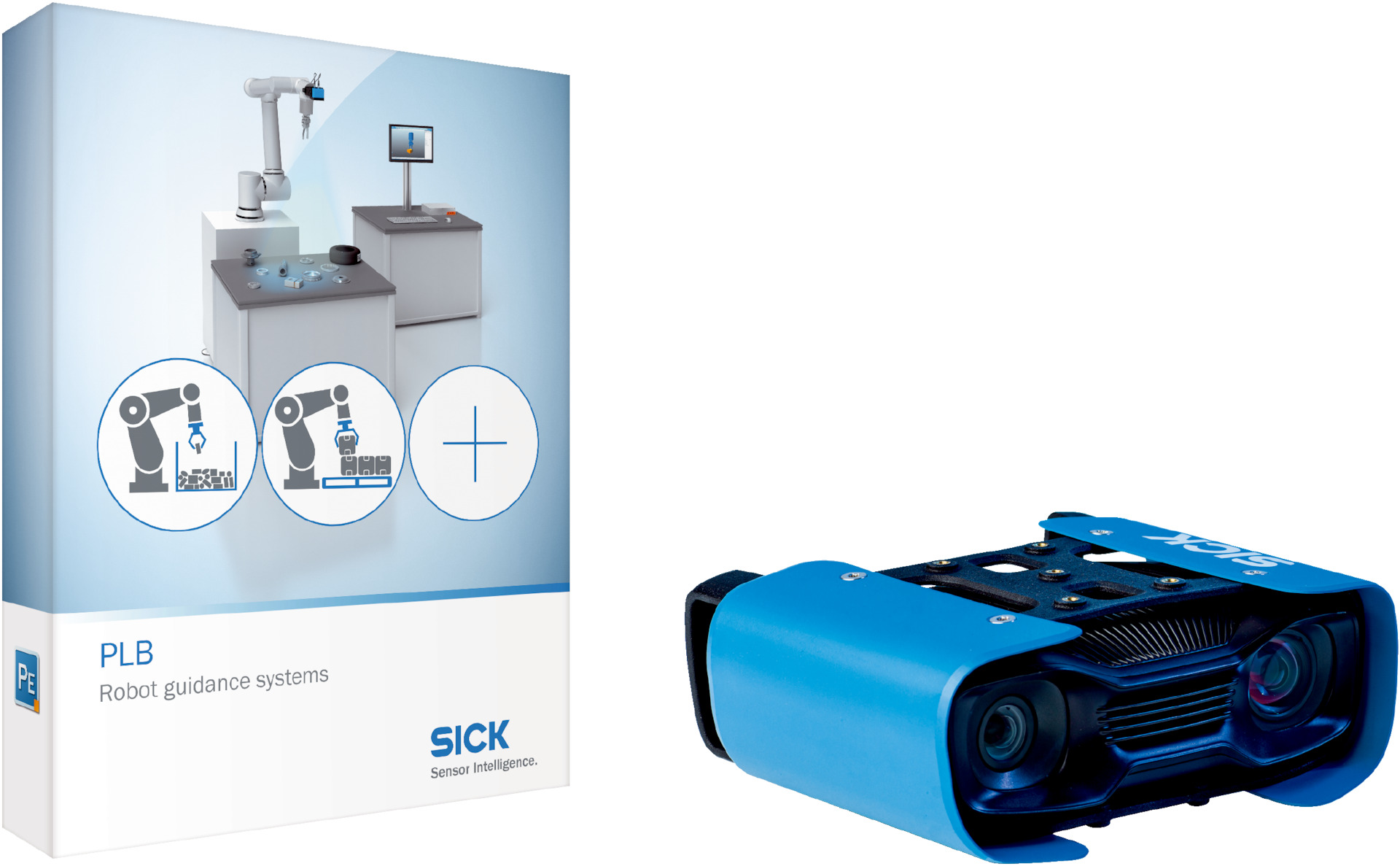

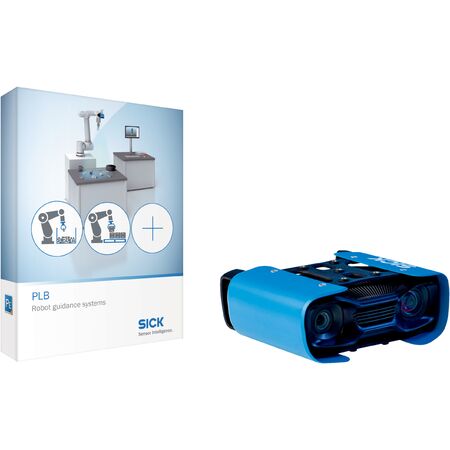

3D Snapshot Camera PLB-5190701 | Medium Field of View | IP65 Rated | by SICK
The 3D Snapshot Camera PLB-5190701 is designed for precise robot guidance and position determination. Featuring advanced 3D snapshot technology and a medium field of view, this secondary camera supports both simple and complex part shapes. With an IP65 rated enclosure for dust and water protection, it's perfect for industrial applications requiring reliable performance and high-speed Ethernet data transmission.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-536
- Field of view: Medium
- Classification: Secondary camera
- Tasks: Position determination
- Camera type: 3D snapshot
- Example volume of view (L x W x H): 790 mm x 650 mm x 500 mm
- Image resolution: 0.2 mm to 0.5 mm depending on distance
- Light source: LED white, red or blue
- LED class: Risk group 2
- 3D CAD format: IGES, STEP
- Technology: 3D snapshot, image analysis
- Connection type: Plug connector, M12, 5-pin
- Supply voltage: 24 V DC, ± 20%
- Current consumption: 5 A
- Enclosure rating: IP65
- Part localization time: 3 s to 10 s typical
- Part size: Approximately > 50 mm x 50 mm x 50 mm
- Part characteristics: Simple and complex part shapes
- Ethernet data transmission rate: 10 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 15 g / 11 ms
- Vibration load: 10-150 Hz / 5 g
- Dimensions (H x L x W): 56mm x 169mm x 124mm
- Weight: 0.945 kg
Key Features
- 3D snapshot technology with image analysis
- Medium field of view
- LED light source available in white, red, or blue
- Risk group 2 LED class
- Factory calibrated
- IP65 rated enclosure for protection against dust and water
- High-speed Ethernet data transmission up to 10 Gbit/s
- Plug connector M12, 5-pin for power supply
- Supports simple and complex part shapes
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with robotic systems and compliance with safety standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light sources reduce power consumption
- Durable IP65 enclosure extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5190701 3D Snapshot Secondary Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
