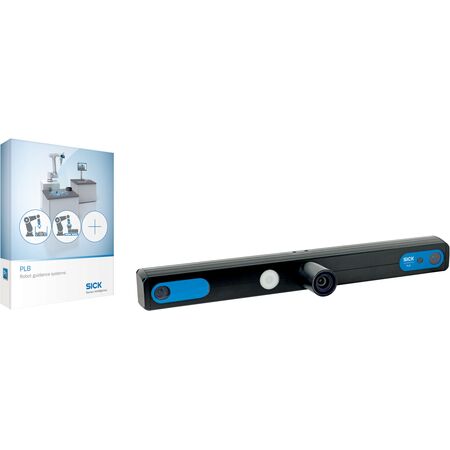

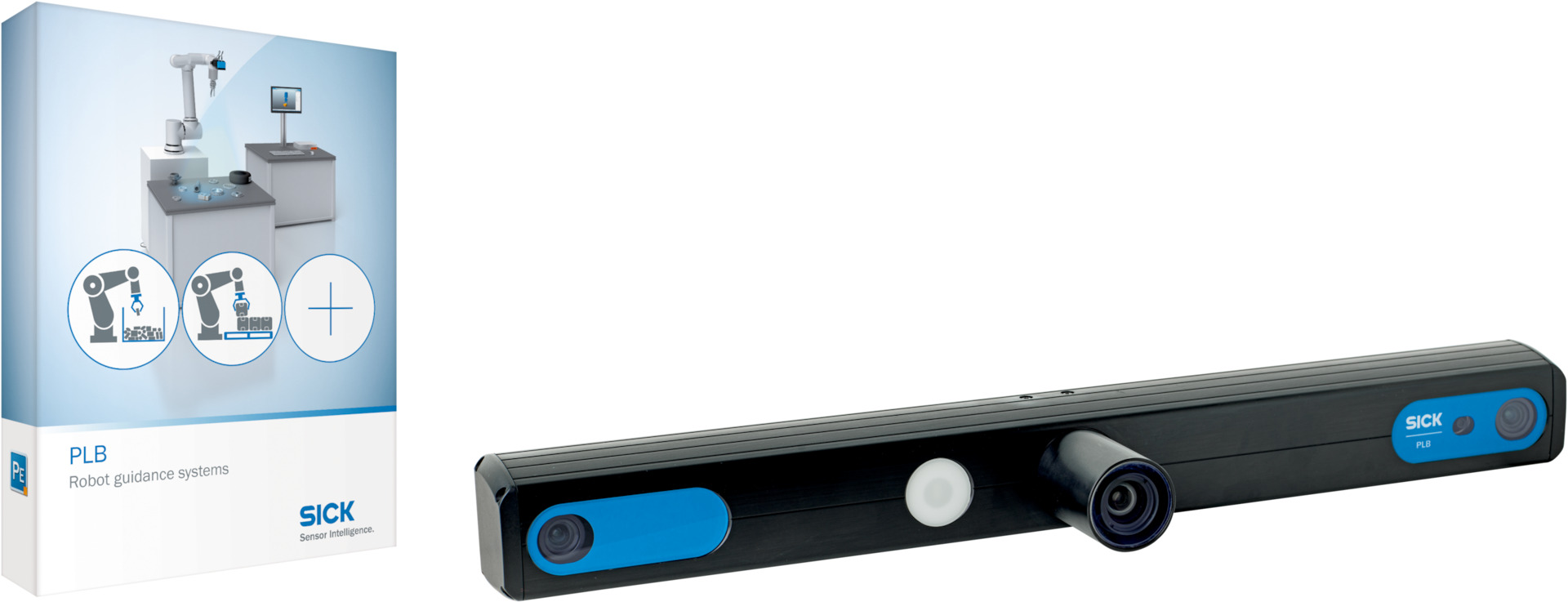

3D Snapshot Camera PLB-51A0101 | High Resolution 2D & 3D Sensors | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-51A0101 features advanced 3D snapshot technology with high-resolution 2 MP 2D and 5 MP 3D sensors, making it ideal for robot guidance and position determination. With a medium field of view and fast part localization time ranging from 0.1 to 10 seconds, this camera is perfect for both simple and complex part shapes. Its robust IP65/IP67 enclosure ensures durability in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Medium
- Classification: Pro
- Camera type: 3D snapshot
- Example volume of view: 950 mm x 1000 mm x 600 mm
- Image resolution: 0.5 mm to 0.8 mm depending on distance
- Light source: LED, blue, 465 nm, Risk group 1
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 20 mm x 20 mm x 20 mm
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports, 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP
- Electrical connection: M12 male connector, 8-pin, x-coded
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot camera technology with image analysis
- Medium field of view
- High resolution: 2 MP 2D colour sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- Suitable for simple and complex part shapes
- LED blue light source at 465 nm, Risk group 1
- Factory calibrated
- Enclosure rating IP65/IP67 for robust protection
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial camera systems and Ethernet network setup is recommended to ensure proper integration and safety.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51A0101 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
