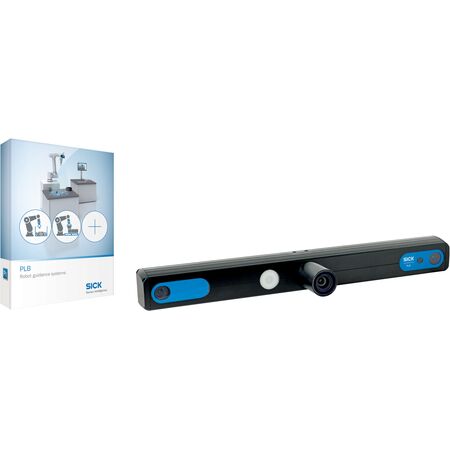

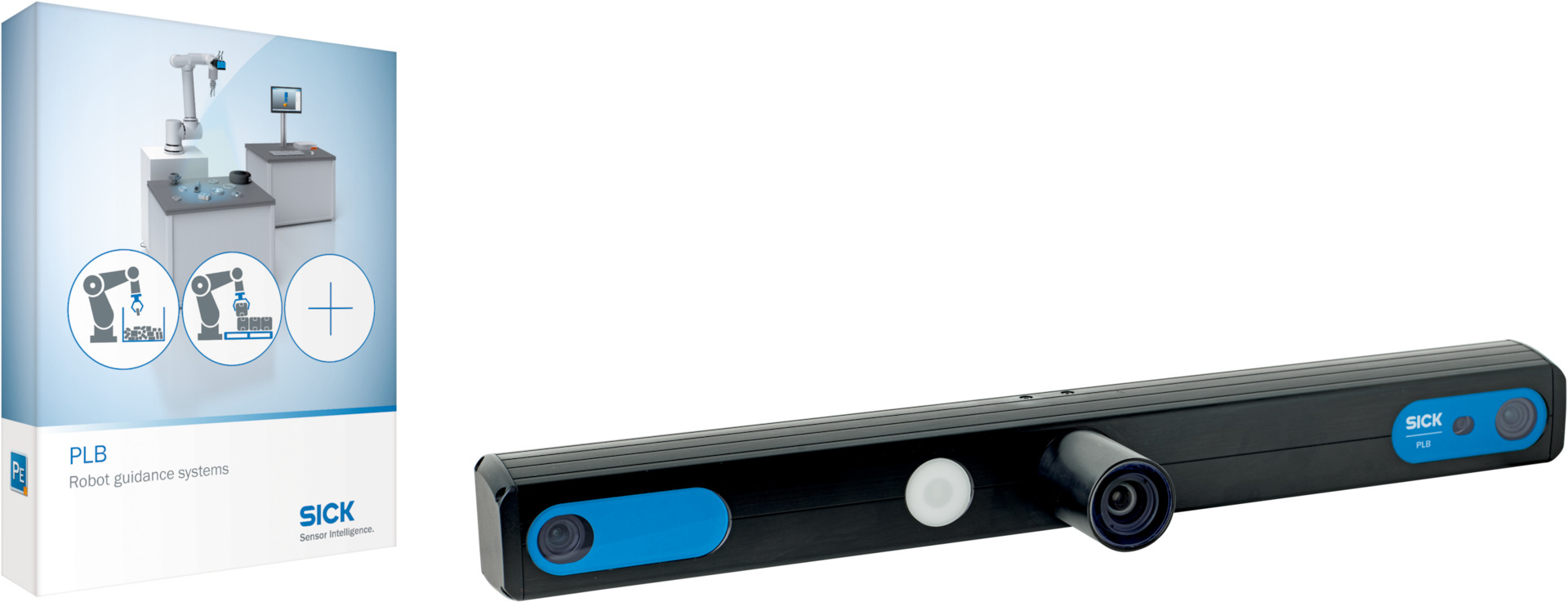

3D Snapshot Camera PLB-51A0102 | High Resolution 2D & 3D Sensors | IP65/IP67 Enclosure | by SICK
The 3D Snapshot Camera PLB-51A0102 features advanced 3D snapshot technology with image analysis, making it ideal for robot guidance and precise position determination. With a small field of view and high-resolution 2 MP 2D and 5 MP 3D sensors, it ensures fast part localization in industrial settings. The robust IP65/IP67 enclosure guarantees durability, while the energy-efficient LED light source enhances performance and reduces power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: PLB-521
- Field of view: Small
- Classification: Pro
- Camera type: 3D snapshot
- Example volume of view: 650 mm x 700 mm x 400 mm
- Image resolution: 0.3 mm to 0.5 mm depending on distance
- Light source: LED, blue, 465 nm
- LED class: Risk group 1
- Localization principle: CAD-model, geometrical shape and edge localization
- Technology: 3D snapshot, image analysis
- Connection type: PoE++
- Supply voltage: 24 V DC or PoE PD class 8 (90W)
- Current consumption: 10 A
- Enclosure rating: IP65/IP67
- Part localization time: 0.1 s to 10 s typical
- Part size: approx. > 10 mm x 10 mm x 10 mm
- Part characteristics: Simple and complex part shapes
- 2D colour sensor resolution: 2 MP (1920 px x 1200 px)
- 3D sensor resolution: 5 MP (2472 px x 2064 px)
- Ethernet: 2 ports for camera to PC and PC to robot
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: M12 male connector, 8-pin, x-coded
- Ambient temperature operation: 0 °C to +40 °C, non-condensing
- Shock load: 60 g / 1.9 ms, 25 g / 6 ms
- Vibration load: 30-500 Hz / 5 g
- Dimensions (H x L x W): 100mm x 506mm x 58mm
- Weight: 1.66 kg
Key Features
- 3D snapshot camera technology with image analysis
- Small field of view suitable for precise localization
- High resolution: 2 MP 2D colour sensor and 5 MP 3D sensor
- Fast part localization time from 0.1 s to 10 s
- LED blue light source (465 nm) with Risk group 1 classification
- Enclosure rating IP65/IP67 for robust industrial use
- Factory calibrated for immediate deployment
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Robot guidance
- Position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-51A0102 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and precise position determination applications.
